Every time you walk into a multi-story office tower, a retail complex, or a modern warehouse, you are standing on a marvel of engineering that most people never see. Beneath your feet lies a system of steel beams and concrete slabs—and at the heart of that system is the steel floor deck. As the Steel Deck Institute (SDI) notes, "Nearly every steel-framed building that is constructed uses steel deck in the floor and roof structure". Despite its ubiquity, this critical component often receives little attention from building occupants—and sometimes, even from designers.
This guide will walk you through everything a beginner needs to know about steel floor deck in commercial buildings: what it is, why it matters, how to choose the right type, and how it contributes to safe, efficient, and cost-effective construction.
Open Type Floor Decking HY51-250-750 - HongYe
At its simplest, a steel floor deck is a corrugated steel sheet that serves as the foundational platform for a building's floor system. It is installed over the primary structural framing (steel beams or joists) and acts as a permanent formwork for the concrete slab that is poured on top.
But calling it mere "formwork" undersells its importance. The steel deck does more than just hold wet concrete in place during construction:
It provides structural strength: The embossments or indentations pressed into the steel create a mechanical bond with the concrete, allowing the two materials to act together as a composite system. The steel handles tensile forces, while the concrete handles compression.
It accelerates construction: Because the deck is pre-fabricated and delivered to the site ready for installation, it eliminates the need for traditional timber formwork, significantly cutting labor time and material costs.
It facilitates building services: The open ribs and troughs of the deck provide a convenient pathway for electrical wiring, plumbing, and HVAC systems, reducing the need for dropped ceilings or bulky service chases.
The global market for profiled steel decking reflects its importance, with estimates projecting it to reach USD 24.5 billion by 2037, driven by the growth of steel structure construction worldwide.
Commercial buildings—whether offices, schools, hospitals, or warehouses—demand high performance from their structural systems. Here is why steel structure construction almost invariably relies on steel floor deck:
Steel decking offers exceptional strength while adding relatively little dead load to the structure. This is crucial in multi-story buildings where reducing the total weight of the floors allows for more stories within the same building height and reduces the load on foundations and lower-level columns.
In commercial construction, time is money. Steel floor deck is manufactured off-site to exact specifications. When it arrives, it can be laid out quickly by installation crews—often with multiple floors being worked on simultaneously. This rapid installation means that subsequent trades (electricians, plumbers, HVAC) can begin their work sooner, compressing the overall project timeline.
Contrary to what one might assume, steel deck and concrete slabs can achieve impressive fire ratings. Depending on the slab depth and the type of deck profile, floor systems can achieve up to 120 minutes of fire resistance with zero additional soffit protection. The concrete cover over the deck acts as thermal mass, protecting the steel beneath during a fire.
Buildings constructed with steel floor deck systems exhibit excellent earthquake resistance. The ductility of steel, combined with the rigidity of the composite slab, allows the structure to absorb and dissipate seismic energy effectively.
By eliminating the need for temporary formwork, reducing structural steel tonnage (through composite action), and accelerating construction, steel floor deck contributes to significant overall project savings.
When specifying a steel floor deck for a commercial project, the first fundamental decision is: composite or non-composite (form deck)?
A composite steel floor deck is designed to bond structurally with the concrete slab, creating a unified "composite slab." The key feature distinguishing composite decks from form decks is the presence of embossments—small indentations or patterns pressed into the steel that act as a shear key, preventing the concrete from slipping along the steel surface.
How It Works:
The steel deck acts as tensile reinforcement for the slab.
The concrete acts as the compression member.
Together, they are far stronger than either material alone.
This composite action allows engineers to reduce the number of beams and columns required, lowering the overall steel tonnage of the building. Composite deck is the most common choice for commercial office buildings, schools, and institutional projects.
Typical Profiles:
1.5-inch deep (Type B): Versatile, lightweight, and ideal for short spans (up to about 11 feet).
2-inch deep: Handles thicker and heavier slabs, provides good structural integrity in fires.
3-inch deep: Offers the greatest span capability and load-bearing capacity, suited for heavy-duty applications.
Deeper profiles (51mm to 225mm): For long spans (un-propped spans exceeding 6 meters) and heavy loads, used in warehouses, car parks, and large open-plan offices.
Non-composite deck—often called "form deck"—serves as a permanent formwork to support the concrete slab during construction but does not rely on composite action for structural performance. In this system, the steel deck simply supports the wet concrete and construction loads; all structural reinforcement is provided by rebar or wire mesh placed within the slab.
When to Use It:
When the concrete slab is designed to carry loads independently.
In renovation or retrofit projects where the existing steel framing cannot achieve composite action.
For lighter-duty applications where the cost of composite deck is not justified.
Typical Profiles:
0.6FD, 1.0FD, 1.5FD, 2.0FD, 3.0FD: The numeric designations refer to the deck depth in inches. For instance, 1.5FD allows beam spacing of over 10 feet, while 3.0FD can span over 16 feet without temporary shoring.
Open Type Floor Decking HY51-250-750 - HongYe
Choosing the right steel floor deck is a critical decision that affects performance, cost, and schedule. Engineers and specifiers must evaluate several key factors:

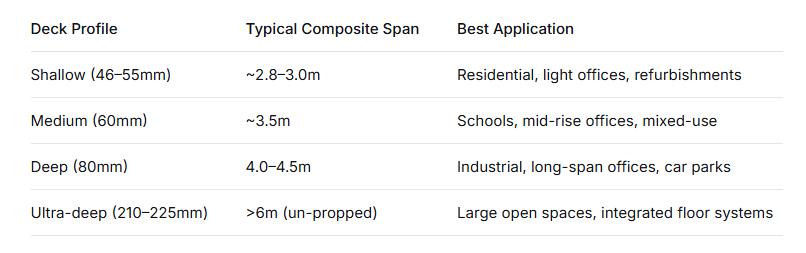

The span—the distance between supporting beams—is the primary determinant of deck depth and gauge. Longer spans require deeper or thicker-gauge decking to support the weight of wet concrete during construction and the live loads (people, furniture, equipment) after completion.
Source: Based on industry data from RMD Profiles and Firth Steels.
Compliance with fire codes is non-negotiable in commercial construction. The Steel Deck Institute (SDI) has developed ANSI-accredited standards that are incorporated by reference into the International Building Code (IBC). Fire resistance is determined by the total slab depth and the concrete cover over the deck. For example, a 200mm slab with a 80mm deep deck can achieve a 120-minute fire rating.
In commercial buildings—particularly educational facilities, hospitals, and premium offices—sound transmission is a critical concern. Deeper decks generally provide better acoustic insulation, achieving sound transmission class (STC) ratings above 52dB, compared to around 47–50dB for shallower profiles.
As noted earlier, composite action requires shear connectors—usually shear studs welded through the steel floor deck to the supporting beam's top flange. The number of shear studs required determines the degree of composite action. In practice, designers often target 75% composite action, which provides approximately 90% of the full composite capacity with 25% fewer shear studs. The American Welding Society (AWS D1.3) and SDI Technical Notes provide detailed guidance on welding and attachment methods.
The ease and speed of installation can significantly impact project cost. Standard 600mm cover widths allow rapid coverage of large areas, while profiles like ComFlor 60 and 80 feature re-entrant or trapezoidal shapes that simplify mechanical and electrical service attachment. Some decks are designed to be nestable, meaning one profile fits neatly inside another for transport, reducing shipping costs and crane time.
For anyone working with steel floor deck, the Steel Deck Institute (SDI) is an indispensable resource. Founded in 1939, SDI provides uniform industry standards for the engineering, design, manufacture, and field usage of steel deck systems.
Key SDI standards include:
ANSI/SDI C-2011: Standard for Composite Steel Floor Deck-Slabs.
ANSI/SDI NC-2010: Standard for Non-Composite Steel Floor Deck.
ANSI/SDI QA/QC-2011: Standard for Quality Control and Quality Assurance for Installation of Steel Deck.
SDI Floor Deck Design Manual (FDDM2): Incorporates load tables, design examples for concentrated loads, and considerations for sound transmission and impact.
These standards are referenced in the International Building Code, making them essential for ensuring code compliance and structural safety.
Steel floor deck is typically manufactured from hot-dip galvanized steel conforming to standards like ASTM A653 or BS EN 10346. Common grades include S280GD and S350GD, indicating minimum yield strengths of 280 and 350 N/mm², respectively.
Galvanized coatings (e.g., Z275, which has a total zinc coating mass of 275 g/m²) provide corrosion resistance sufficient for internal commercial floors in non-aggressive environments. The protective coating also contributes to the deck's long-term durability, with 100% recyclability at the end of the building's life.
Sustainability is increasingly a priority in commercial construction. Steel structure buildings with steel floor deck score well on multiple sustainability metrics:
Recyclability: Steel is the world's most recycled material. Steel floor deck products are 100% recyclable at the end of their service life.
Embodied Carbon: Steel deck products have a declared carbon footprint (A1–A3 production stage) of approximately 35 kg CO₂ equivalent per declared unit, with manufacturers increasingly providing Environmental Product Declarations (EPDs).
Resource Efficiency: The use of composite deck reduces the amount of steel and concrete required for the structural system, lowering both material consumption and embodied carbon.
If you are new to specifying or using steel floor deck, here are the key takeaways:
Start with the loads and spans: The most important design decision is matching the deck profile to the required span and load capacity.
Choose composite for efficiency: Unless there is a specific reason to use form deck, composite steel floor deck will typically provide the best performance and economy.
Consult the standards: The SDI standards and design manuals are the definitive references for proper design and installation.
Plan for services: Consider how mechanical, electrical, and plumbing systems will be routed through the floor. Deeper profiles often offer better integration for services.
Don't overlook fire and acoustics: These performance criteria can significantly impact the choice of deck profile and slab depth.
Think about installation: A deck that is easy to install—with 600mm cover width, nestability, and pre-cut lengths—can save significant time and labor costs.
The steel floor deck is a humble but essential component of modern commercial buildings. It provides the structural platform upon which everything else is built, enabling faster construction, lighter frames, and more efficient use of materials. By understanding the fundamentals—the difference between composite and non-composite deck, the key selection criteria, and the importance of industry standards—you can make informed decisions that ensure your next project is safe, economical, and built to last.
Whether you are an architect, engineer, contractor, or building owner, the choices you make regarding steel structure flooring will have lasting impacts on the performance, cost, and sustainability of your building. The Steel Deck Institute puts it succinctly: "Properly specified steel deck and deck accessories are a vital component to any successful building project"
