A color steel sheet looks simple: a painted metal panel used for metal roofing, wall cladding, and industrial buildings. But its real performance is determined by a microscopic zinc-aluminum coating that sits between the steel substrate and the organic paint system. This alloy layer—often only 20 to 25 micrometers thick—is the difference between a building envelope that lasts 15 years and one that lasts 60.
For anyone specifying a steel structure, understanding zinc-aluminum additives is not a technical detail. It is a core durability decision. The alloy coating controls corrosion resistance, cut-edge protection, service life, and ultimately the lifecycle cost of the entire steel structure.
This article explains the science, the standards, and the field data behind zinc-aluminum coated steel used in modern prepainted steel products.
YX 51-250-750 Prepainted Steel Plate

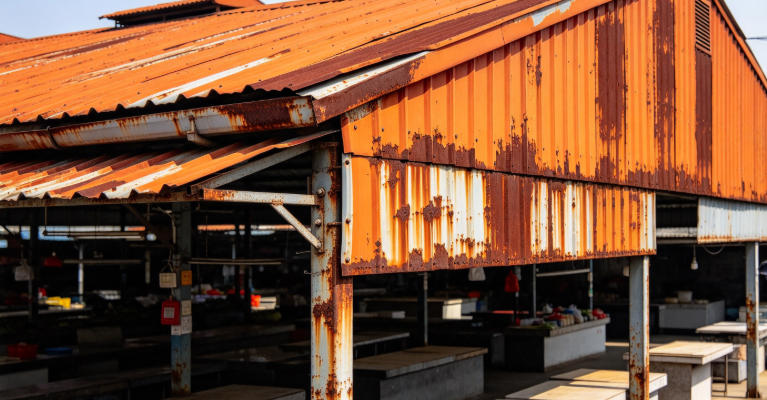

Steel corrodes because iron naturally returns to its oxide form when exposed to oxygen and moisture. In a color steel sheet, corrosion appears as edge creep, paint blistering, red rust, and eventually perforation. Once perforation begins, the steel structure may face water ingress, insulation damage, and expensive repairs.
The coating industry uses two main strategies:
Barrier protection: physically blocking moisture, oxygen, and pollutants.
Sacrificial protection: using a more active metal to corrode first and protect the steel.
The best zinc-aluminum coating systems combine both. That is why they dominate architectural cladding, metal roofing, and pre-engineered steel buildings.
Zinc has protected steel for centuries. It is electrochemically more active than iron, so it acts as a sacrificial anode. When a scratch, cut edge, or fastener hole exposes steel, the surrounding zinc corrodes preferentially. This is called cathodic protection or galvanic protection.
In a color steel sheet, this matters because every panel is cut, folded, drilled, and fixed on site. A pure zinc coating—commonly called galvanized steel—provides excellent cut-edge protection. However, in coastal, industrial, or high-pollution environments, zinc alone can be consumed too quickly. That is why aluminum additives were introduced.
Aluminum transforms zinc coatings in three ways:
Barrier enhancement. Aluminum forms a dense oxide film (Al₂O₃) that slows moisture and chloride penetration.
Protective corrosion products. In zinc-aluminum alloys, complex layered double hydroxides such as Zn₆Al₂(OH)₁₆CO₃·4H₂O form. These are more stable and protective than the corrosion products of pure zinc.
Microstructural refinement. Aluminum refines the coating microstructure, improving coating adhesion and formability.
Research published in ACS Omega showed that as aluminum content increased in the coating bath, corrosion rates decreased. Above roughly 8 wt% aluminum, the protective corrosion product became more stable and precipitated more effectively. Separate studies on Zn–7 wt% Al coatings found better adhesion than pure zinc, allowing the coated sheet to bend without exfoliating as easily.
This is why zinc-aluminum additives are not a minor formulation tweak. They change the fundamental chemistry of corrosion protection.
The most commercially important alloy coating for color steel sheet is the 55% Al-Zn coating, known by trade names such as Galvalume, Zincalume, and Aluzinc. Its typical composition is about 55% aluminum, 43.4% zinc, and 1.6% silicon. The silicon controls the alloy reaction with the steel during hot-dip coating, preventing a brittle alloy layer.
The microstructure consists of an aluminum-rich dendritic network with zinc-rich interdendritic regions. This structure provides:
Strong barrier protection from the aluminum-rich phase.
Local sacrificial protection from the zinc-rich phase.
Excellent heat reflectance and solar reflectance.
In salt spray testing according to ASTM B117, 55% Al-Zn coatings commonly reach 3,000 hours before red rust, depending on coating weight. Conventional galvanized steel of similar thickness often reaches only 500 to 1,000 hours. A 30-year atmospheric corrosion study concluded that 55% Al-Zn coated sheet has better than twice the life of an ordinary zinc coating of equal thickness.
This is why Galvalume and similar products became the default substrate for prepainted steel in metal roofing and wall cladding.
The latest evolution adds magnesium to the alloy. Nippon Steel research identified an optimal composition of approximately 6–8% Al with 3% Mg. Zn-Al-Mg coatings—often called zinc-aluminum-magnesium—can deliver more than twice the salt spray resistance of conventional hot-dip galvanized steel.
Magnesium promotes additional protective corrosion products, especially magnesium-containing layered double hydroxides. These stabilize the protective film and suppress the cathodic reaction. Commercial products such as Optigal® represent this generation.
In Japan, 55% Al-Zn substrates accounted for over 90% of the metal roofing market by 2015, with roughly 70% used as painted color steel sheet. The shift toward Zn-Al-Mg continues that trend.
A color steel sheet is a duplex system:
Metallic coating: zinc-aluminum alloy
Organic coating: epoxy primer plus polyester, PVDF, or other topcoat
The organic coating provides the primary barrier protection. The metallic coating provides cathodic protection at scratches and cut edges. Research consistently ranks performance as: color-coated steel > Galvalume > galvanized steel in many corrosive environments.
This is why a prepainted steel roof can last decades longer than an unpainted metallic-coated roof. The paint shields the alloy; the alloy protects the steel when the paint is damaged.
YX 51-250-750 Prepainted Steel Plate
Specifiers rely on international standards:
ASTM A792 covers aluminum-zinc coated steel sheet.
EN 10346 covers continuously hot-dip coated steel flat products.
EN 10169 covers organic-coated flat steel products.
AS/NZS 2728 provides performance classifications for prepainted steel.
JIS G3322 covers prepainted zinc-aluminum alloy coated steel sheet.
ISO 9223 classifies atmospheric corrosivity.
Coating weight is often designated as AZ150, meaning 150 g/m² of zinc-aluminum coating on both sides. A typical architectural specification might combine AZ150, a 5-micron epoxy primer, and a 20-micron topcoat. Products such as Granite® HDX can offer up to 35 years guarantee against perforation and paint delamination, with RC5 classification under EN 10169.
These standards matter for Google search users because they provide verifiable, real-world benchmarks rather than marketing claims.
Field data is more convincing than any laboratory test. A global assessment using ISO 9223 categories found that zinc-aluminum alloy coatings consistently outperformed pure zinc coatings of equal thickness.
For 80-micrometer coatings, predicted service life ranges were approximately:
Marine environments: 10–20 years
Industrial environments: 20–40 years
Urban environments: 40–100 years
Rural environments: up to 100 years
The Metal Construction Association concluded that unpainted 55% Al-Zn standing seam roofs can exceed 60 years in many environments. A standing seam system using 55% Al-Zn alloy-coated steel was assessed as not requiring replacement during a 60-year building service life under LEED assumptions.
For a steel structure owner, this is the key point: the alloy coating determines whether the roof is a 15-year maintenance item or a 60-year asset.
No coating is perfect. Specifiers should understand:
Edge protection. 55% Al-Zn provides less continuous sacrificial protection at cut edges than pure zinc. Sealants or edge treatment may be needed in severe environments.
Formability. The alloy coating is harder than pure zinc, so tight bending requires proper grade selection.
Galvanic coupling. Contact with copper or stainless steel in wet conditions can accelerate coating corrosion. Use proper detailing and isolation.
Fasteners. Use compatible coated or stainless fasteners to avoid galvanic corrosion.
These are engineering details, not reasons to avoid zinc-aluminum coated steel. Experienced color steel sheet suppliers and fabricators manage them routinely.
Longer service life means lower lifecycle cost. A color steel sheet that lasts 50 years avoids multiple repainting and replacement cycles. Zinc-aluminum coated steel is fully recyclable, and the metallic coating does not prevent steel recycling.
Bare 55% Al-Zn surfaces can reflect a large share of solar radiation—up to about 75% in some studies—reducing cooling loads by roughly 15% in warm climates. This supports green building goals and energy efficiency in steel structure design.
Research continues in several directions:
Zn-Al-Mg ternary systems with optimized compositions.
Chromate-free passivation to eliminate hexavalent chromium.
Microstructural engineering for better corrosion resistance.
Predictive modeling using electrochemical data and field exposure databases.
Thinner, stronger coatings that reduce material use without sacrificing durability.
For buyers and specifiers, the trend is clear: zinc-aluminum additives will remain central to color steel sheet performance.
Is zinc-aluminum coating better than galvanized steel?
In most architectural environments, yes. 55% Al-Zn and Zn-Al-Mg coatings provide better barrier protection and longer service life than conventional galvanized steel, although pure zinc can offer more uniform cut-edge protection.
What does AZ150 mean?
AZ150 means 150 g/m² of zinc-aluminum coating on both sides of the sheet. It is a common specification for color steel sheet in building applications.
Can color steel sheet rust?
Yes, eventually. But a properly specified zinc-aluminum coating plus prepainted steel system can delay red rust and perforation for decades.
Where is color steel sheet used?
It is widely used in metal roofing, wall cladding, warehouses, factories, cold storage, agricultural buildings, and commercial steel structure projects.
The durability of a color steel sheet is not decided by color alone. It is decided by the zinc-aluminum coating beneath the paint. Aluminum improves barrier protection, zinc provides sacrificial protection, and magnesium pushes performance further. Together, these alloy elements create a coating system that can outlast conventional galvanized steel by two to six times, depending on the environment.
For architects, engineers, contractors, and building owners, the message is practical: when you specify color steel sheet for a steel structure, pay close attention to the zinc-aluminum coating, the coating weight, the prepainted steel system, and the relevant ASTM, EN, ISO, or AS/NZS standard. That microscopic alloy layer is one of the most important durability decisions in the entire building envelope.
