Views: 0 Author: YuTaoChen Publish Time: 2026-09-24 Origin: Site

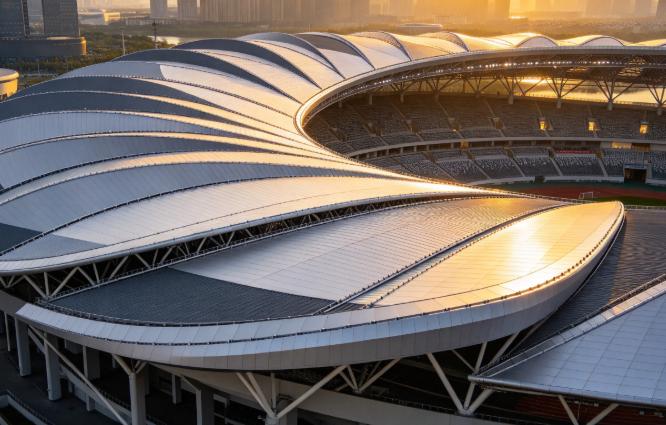

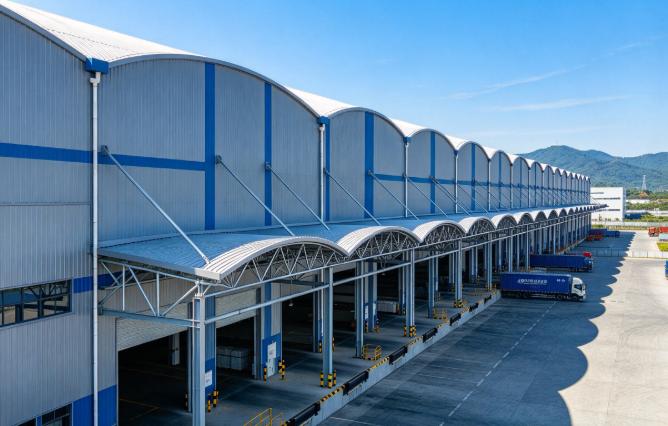

Walk past any modern warehouse, stadium, or airport terminal, and you are likely looking at color steel sheet—a material that has quietly become the backbone of contemporary architecture and steel structure construction. What appears to be a simple painted metal panel is, in chemical terms, a multi-layered protective system engineered at the molecular level to withstand decades of rain, salt spray, UV radiation, and industrial pollutants.
The global market for prepainted steel exceeded 20 million tonnes annually by the early 2020s, driven primarily by construction applications where steel structure durability directly determines building life-cycle costs. Yet not all color-coated products are equal. The gap between an entry-level color steel sheet and a premium product lies in precise chemical engineering—from the alloy composition of the metallic coating to the crosslink density of the organic topcoat.
This article examines the chemical mechanisms that distinguish premium color steel sheet from commodity alternatives, drawing on peer-reviewed corrosion science and international testing standards.

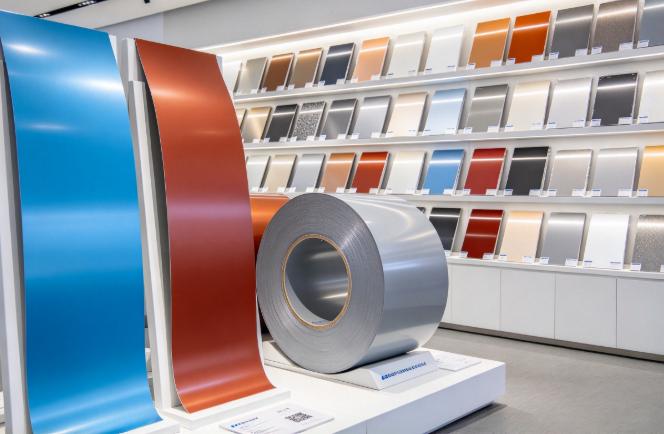

825type Color steel sheet from China manufacturer - Anhui Hongye Steel Structure Co., Ltd.
The foundation of any corrosion-resistant color steel sheet is the metallic coating applied to the steel substrate. This layer performs two distinct protective functions simultaneously.
The zinc coating on a color steel sheet protects the underlying steel structure through a dual mechanism. First, it acts as a physical barrier, preventing oxygen and water from reaching the iron substrate. More critically, zinc serves as a sacrificial anode—because zinc has a more negative electrochemical potential than iron, it corrodes preferentially when the coating is damaged or cut. The zinc dissolves and forms protective compounds that block further corrosion processes at exposed edges.
This is not a passive process. The chemistry is deliberate: zinc's standard electrode potential of −0.76 V versus iron's −0.44 V means that in the galvanic couple formed at a cut edge, zinc becomes the anode and dissolves, while iron remains cathodically protected. In practical terms, a premium color steel sheet can tolerate scratches and edge damage without the underlying steel structure developing red rust for years.
The most significant chemical advancement in color steel sheet substrates over the past two decades has been the development of Zn-Al-Mg alloy coatings. When magnesium is incorporated into the coating at approximately 3 weight percent, the corrosion resistance improves substantially compared to conventional zinc or Zn-Al coatings.
The mechanism is chemical in nature: magnesium-containing corrosion products, particularly Zn₅(OH)₆(CO₃)₂ and Zn₅(OH)₈Cl₂·H₂O, form on exposed surfaces and create both a barrier effect and local surface alkalization that passivates the steel substrate. Research published in Corrosion Science demonstrated that Mg species remain on the steel surface even after electrochemical polarization, providing continued protection at cut edges where the coating has been consumed.
Industry practice has established a quantitative relationship between coating weight and substrate thickness. The "zinc ratio" is defined as the zinc coating weight per square meter (single side, in grams) divided by the steel substrate thickness (in millimeters). International consensus holds that a zinc ratio greater than 100 is necessary to ensure effective cut-edge corrosion resistance in color steel sheet.
For example, a 0.6 mm thick color steel sheet requires a minimum single-side zinc coating of 60 g/m². This criterion applies to both hot-dip galvanized and 55% Al-Zn (Galvalume) substrates, though the environmental chemistry of the application determines which coating performs better.
While the metallic coating provides electrochemical protection, the organic topcoat determines the aesthetic longevity and UV resistance of the color steel sheet. The chemical composition of this coating varies dramatically between commodity and premium products.
Conventional polyester (PE) coatings offer good adhesion and formability at low cost, but their molecular structure contains ester linkages that are susceptible to photo-oxidative degradation. Under UV exposure, the aliphatic ester bonds break, leading to chalking, color change, and eventual loss of protective function. In direct outdoor exposure, standard PE coatings on color steel sheet achieve an anti-corrosion lifespan of approximately 7–8 years, with significantly reduced performance in industrial or heavily polluted environments.
SMP coatings address polyester's UV weakness by incorporating silicone resins through a condensation reaction with the hydroxyl and carboxyl groups on the polyester backbone. The silicone modification ratio typically ranges from 5% to 50%. This chemical modification improves sunlight resistance and pulverization resistance, extending the anti-corrosion lifespan to 10–12 years. However, the silicone component can compromise adhesion and formability, making SMP color steel sheet less suitable for applications requiring complex bending or profiling.
HDP coatings represent a more sophisticated molecular design. During resin synthesis, cyclohexane-structured monomers replace aromatic components, reducing the resin's absorption of UV radiation while maintaining flexibility and weather resistance. UV absorbers and hindered amine light stabilizers (HALS) are added to the formulation to further improve film durability. The outdoor weather resistance of HDP color steel sheet reaches approximately 15 years, with performance at 60–80% of PVDF coating systems.
PVDF coatings represent the highest tier of organic coating chemistry for color steel sheet. The carbon-fluorine bond (C–F) has a bond energy of approximately 485 kJ/mol—one of the strongest in organic chemistry—rendering PVDF resin exceptionally resistant to UV degradation, chemical attack, and thermal oxidation. The highly crystalline structure and large molecular weight of PVDF further enhance its barrier properties.
Industry specifications require PVDF content of no less than 70% in the coating formulation (the balance being acrylic resin). In general environments, PVDF-coated color steel sheet achieves a corrosion life of 20–25 years, with color performance warranties extending to 35 years and blistering/cracking warranties reaching 45 years under ASTM standards. Continuous Florida weathering tests have demonstrated that PVDF-based architectural finishes retain their original color and gloss for periods exceeding 20 years, with some systems approaching 40 years of service life in outdoor environments.
825type Color steel sheet from China manufacturer - Anhui Hongye Steel Structure Co., Ltd.
The chemical claims behind premium color steel sheet are validated through rigorous accelerated and natural exposure testing protocols. Understanding these test methods is essential for specifiers evaluating products for steel structure applications.
Neutral salt spray testing exposes coated color steel sheet to a 5% sodium chloride fog at 35°C. Premium products typically specify a minimum of 960–1000 hours of exposure with no red rust, and no more than 1/8 inch of creepage from a scribe line. This test is particularly relevant for coastal applications where chloride deposition accelerates corrosion.
Accelerated tests cannot fully replicate real-world conditions. An 8-year outdoor exposure study of prepainted galvanized steel conducted by the French Corrosion Institute and RISE Research Institute Sweden demonstrated that cut-edge corrosion rates depend significantly on distance from the seashore, exposure angle, and whether the surface is rinsed by rainfall. Blistering decreased with increasing distance from the coast, confirming the dominant role of seawater aerosols and wetness in coating degradation.
The European standard EN 10169 provides a classification system for organic-coated steel. The Ruv4 category requires gloss retention greater than 80% and color change less than 2 ΔE after artificial QUV-A testing, or less than 3 ΔE after natural weathering exposure. The newer Ruv5 classification, introduced in the 2022 revision, sets the same gloss retention threshold but under more demanding test conditions. Premium color steel sheet products from manufacturers such as SSAB and Tata Steel now achieve Ruv4 and RC5+ classifications, the highest available.
The chemical protection systems described above perform differently depending on the atmospheric chemistry of the installation site. ISO 9223 classifies atmospheric corrosivity into categories C1 (very low) through CX (extreme), based on time-of-wetness, sulfur dioxide deposition, and airborne chloride levels.
The corrosion rate of zinc—the protective basis of most color steel sheet—varies dramatically across environments. Published data indicate zinc corrosion rates of 0.2–3 µm/year in rural atmospheres, 2–16 µm/year in urban and industrial environments, and 0.5–8 µm/year in marine settings. In highly industrial environments, a 610 g/m² zinc coating would develop rust after 4 years and may be 80% rusted within 10 years. The same coating in an urban atmosphere would not show rusting for 30–40 years, and in a marine environment for 15–25 years.
This environmental chemistry has direct implications for material selection. Because zinc and aluminum exhibit different behaviors in acidic versus alkaline media—pure zinc performs better in alkaline conditions while Al-Zn performs better in acidic environments—specifiers must match the coating chemistry to the local atmospheric chemistry. For acidic environments, Al-Zn coated color steel sheet is recommended; for alkaline conditions, pure zinc substrates perform better.
The protective chemistry of color steel sheet must survive mechanical processing without losing its barrier function. Coating adhesion, measured by cross-hatch tape testing according to ASTM D3359, ensures that the organic layer remains bonded to the metallic substrate through bending, profiling, and handling.
More critically, the steel structure itself must maintain mechanical integrity. For structural applications, the base steel must comply with standardized mechanical properties under EN 10346. High-strength structural (HSS) grades with yield strengths of 280–345 MPa allow for thinner color steel sheet in architectural cladding without compromising load-bearing capacity—an important consideration for large-span steel structure envelopes.
The resistance of premium color steel sheet to atmospheric corrosion is not the result of a single protective layer, but of a carefully engineered chemical system operating across multiple length scales. At the atomic level, zinc's electrochemical potential provides sacrificial protection. At the molecular level, the crosslink density and chemical structure of the organic coating determine UV resistance and barrier performance. At the system level, the interaction between metallic coating weight, substrate thickness, and environmental chemistry determines service life.
For specifiers and engineers working with steel structure systems, the key insight is that "premium" is quantifiable. The zinc ratio, the PVDF content percentage, the salt spray hours, the Ruv classification—these are not marketing claims but measurable chemical and physical parameters. Understanding the chemistry behind these numbers allows informed decisions that balance initial cost against decades of maintenance-free performance.
As the construction industry moves toward life-cycle thinking and environmental sustainability, the chemical analysis of color steel sheet becomes not merely an academic exercise but a practical framework for specifying materials that will protect steel structure assets for 30, 40, or even 50 years—long enough to make the material's embedded carbon and energy worthwhile many times over.
