Views: 0 Author: Site Editor Publish Time: 2026-08-20 Origin: Site
In the realm of modern construction, few components are as essential yet underappreciated as the steel floor deck. As the foundation upon which floors are built in steel structure buildings, steel floor deck serves not merely as a formwork for concrete but often as an integral structural element that enhances the overall performance of the building system.
The global market for profiled steel sheet decking was estimated to be worth approximately US$12.3 to US$12.7 billion in 2025, with production reaching around 8,838 kilotons at an average global market price of approximately USD 1,400 per ton. The market is projected to grow at a compound annual growth rate of 3.0% to 6.1% through 2032. This growth reflects the increasing adoption of steel floor deck systems in commercial, industrial, and residential construction worldwide.
This article provides a comprehensive overview of the common types of steel floor deck, their technical characteristics, and the application scenarios for which each type is best suited. Whether you are a structural engineer, architect, contractor, or building owner, understanding these distinctions is critical to making informed, code-compliant decisions for your project.
Open Type Floor Decking HY51-250-750 - HongYe
Steel floor deck is a cold-formed, corrugated steel sheet that serves as a working platform during construction and, in many cases, becomes a permanent part of the finished structural system. It is manufactured from steel conforming to ASTM A653/A653M specifications, typically with a specified yield stress of 40 ksi (275 MPa) and G60 or G90 galvanized zinc coating for corrosion protection.
The Steel Deck Institute (SDI), founded in 1939, provides industry standards for the engineering, design, manufacture, and field usage of steel floor and roof decks. SDI has developed consensus standards including ANSI/SDI C-2017 for composite steel floor deck-slabs and ANSI/SDI NC-2017 for non-composite steel floor deck. These standards are referenced in the 2018 and 2021 editions of the International Building Code (IBC), making them essential references for code-compliant design.
Steel floor deck is broadly classified into two main functional categories: composite floor deck and non-composite floor deck (also known as form deck). Within these categories, various profiles and depths are available to meet different span, load, and performance requirements.
Composite steel floor deck is engineered to work together with the concrete slab as a unified structural system. The deck features embossments or formed geometric patterns pressed into its surface, which allow the concrete to mechanically interlock with the steel as it cures. Once the concrete hardens, the steel and concrete act together to carry loads—a phenomenon known as composite action.
In composite action, the steel deck provides tensile strength while the concrete provides compressive strength, creating a system that is stronger than either material alone. This synergy reduces the need for supplemental reinforcing bars in many applications and allows for thinner, lighter slabs that still deliver exceptional structural performance.
Composite steel floor deck is available in standard depths of 1.5 inches, 2 inches, and 3 inches, manufactured in gauges ranging from 16 to 22 gauge with galvanized G90 finish. The 2-inch and 3-inch profiles feature interlocking side laps that enhance structural continuity and diaphragm action.

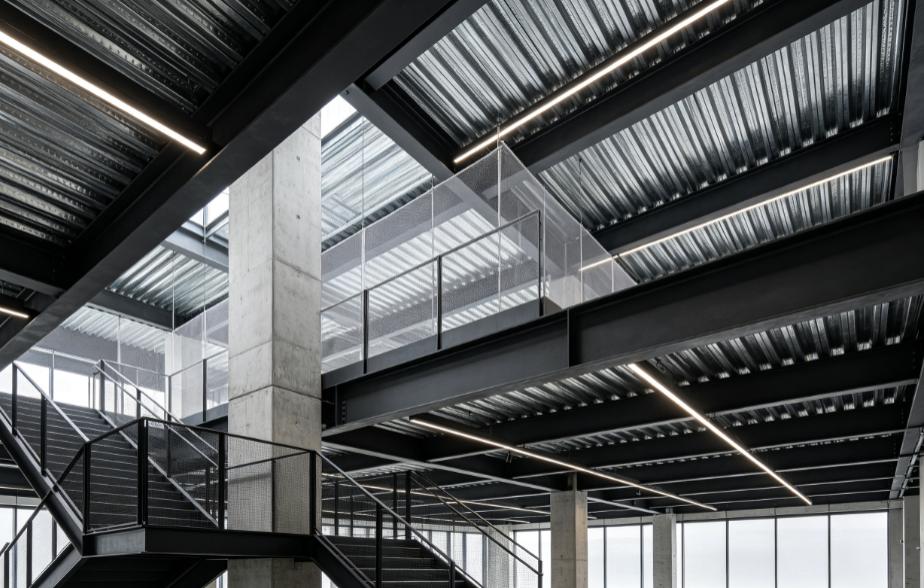

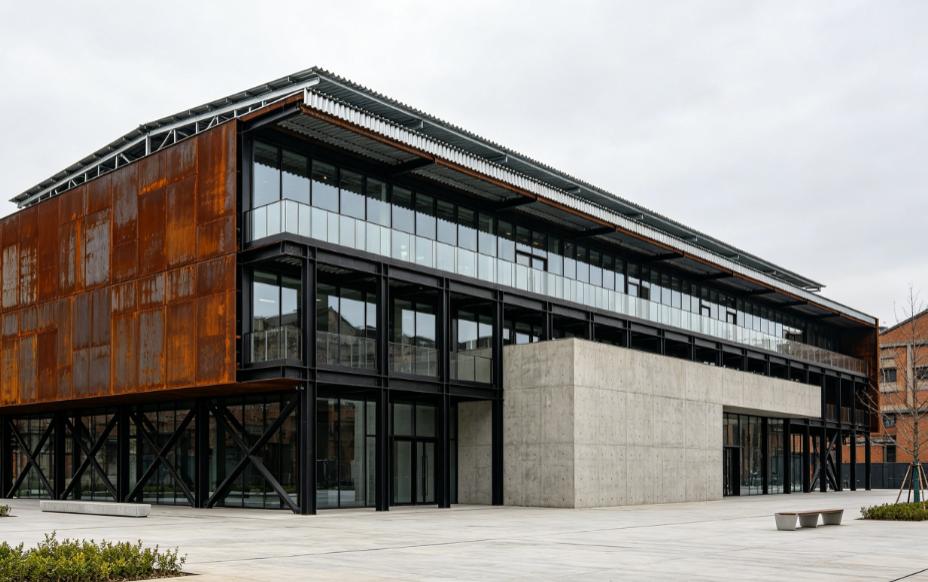

Multi-Story Commercial Buildings and High-Rises
Composite steel floor deck is the predominant choice for multi-story commercial buildings, office towers, and mixed-use developments. The system's ability to span significant distances—up to 14 feet without additional shoring for 2-inch composite deck—reduces the number of supporting beams required, lowering both material costs and construction time. The composite action also contributes to the building's lateral load-resisting system through diaphragm action, which is critical for wind and seismic performance in high-rise steel structure buildings.

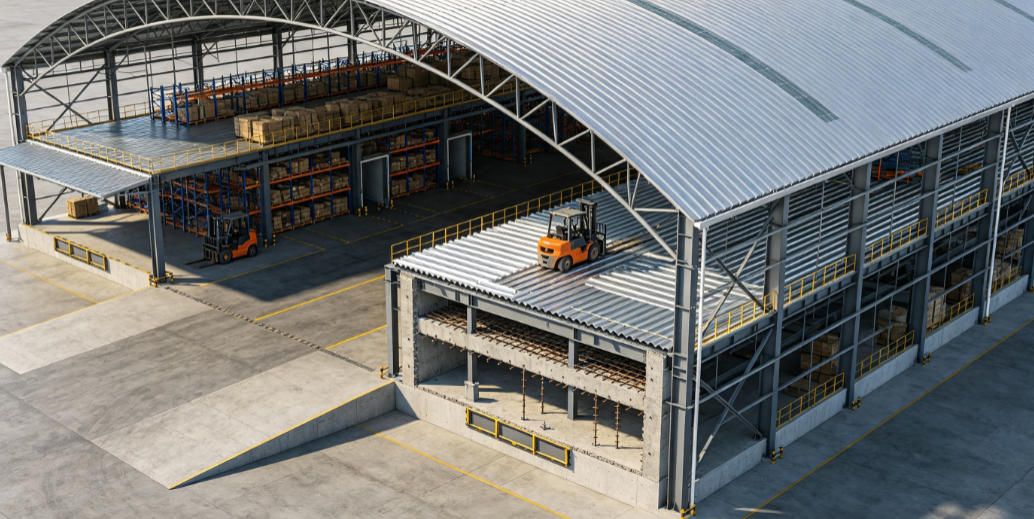

Industrial Facilities and Warehouses
In industrial settings such as factories, warehouses, and logistics centers, composite steel floor deck provides the heavy load capacity required for equipment, storage, and vehicle traffic. Deeper profiles such as 3-inch composite deck offer superior spanning capacity with less deflection, providing a safe working platform during construction and long-term structural reliability.
Parking Structures
Car parks and parking garages benefit from the long-span capabilities of deeper composite deck profiles. Profiles such as Metfloor 80, Comflor 80, and TR80 are specifically designed for long spans and high load demands typical of parking structures. These decks can achieve 120-minute fire resistance with a 200mm slab depth, meeting the stringent fire safety requirements for parking facilities.
Healthcare and Educational Facilities
Hospitals, schools, and universities require floor systems that balance structural performance with acoustic control. Deeper, narrower composite deck profiles such as MF80, CF80, and TR80 can achieve sound transmission class (STC) ratings exceeding 52dB, which is essential for healthcare, education, and premium office environments. Standard 600mm cover width on these profiles allows for rapid floor area coverage while maintaining consistent performance.
Non-composite steel floor deck, commonly referred to as form deck, serves as a permanent formwork for poured concrete slabs. Unlike composite deck, form deck does not feature embossments and does not interlock with the concrete. It provides a fast, economical solution for slab support but does not participate in the long-term structural load-carrying capacity of the finished floor.
Form deck must safely support its own weight, the weight of wet concrete during construction, and construction activity loads. After the concrete cures, the deck remains in place as a permanent form but does not create composite action with the concrete.
Common form deck profiles include 9/16-inch, 1-inch, and 1.5-inch depths, with gauges typically ranging from 22 to 16 gauge. Without the embossments required for composite action, form deck is generally less expensive to manufacture and purchase than composite deck.
Stairways and Stair Landings
Form deck is commonly used in stairway applications where the structural demands are relatively modest and composite action is not required. The ease of installation and cost-effectiveness of form deck make it an ideal choice for these non-critical floor elements.
Foundations and Low-Level Mezzanines
In foundation applications and low-level mezzanine designs where floor loads are moderate, form deck provides an economical solution. The deck supports the concrete slab during curing and remains in place as a permanent form, eliminating the need for formwork removal and reducing labor costs.
Renovation and Retrofit Projects
Form deck is often specified in renovation projects where existing steel structure framing cannot accommodate the additional weight or composite action of a composite deck system. Its lighter weight and simpler installation make it well-suited for applications where structural modifications are limited.

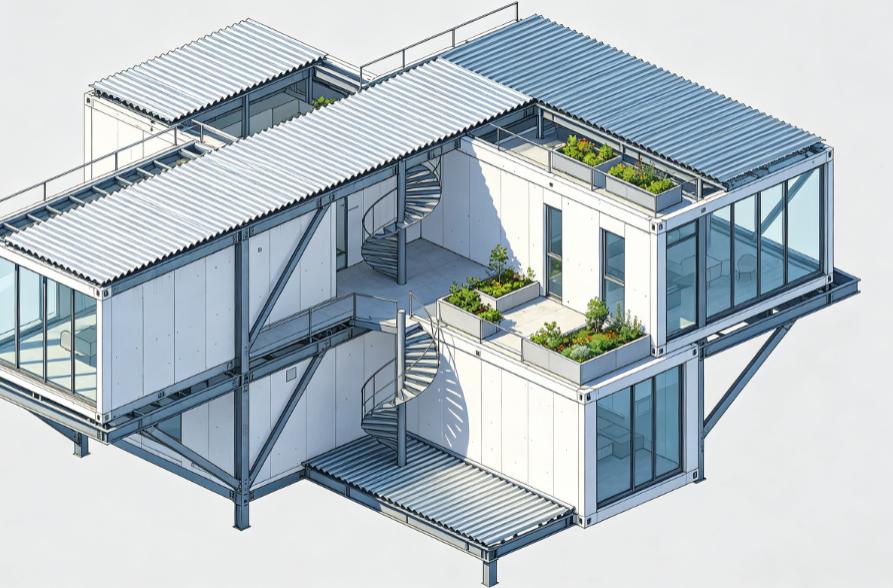

Residential and Light Commercial Construction
For residential buildings, small office fit-outs, and light commercial projects, form deck offers a practical balance of cost and performance. These applications typically involve shorter spans and lighter loading conditions where the structural benefits of composite action are not necessary.

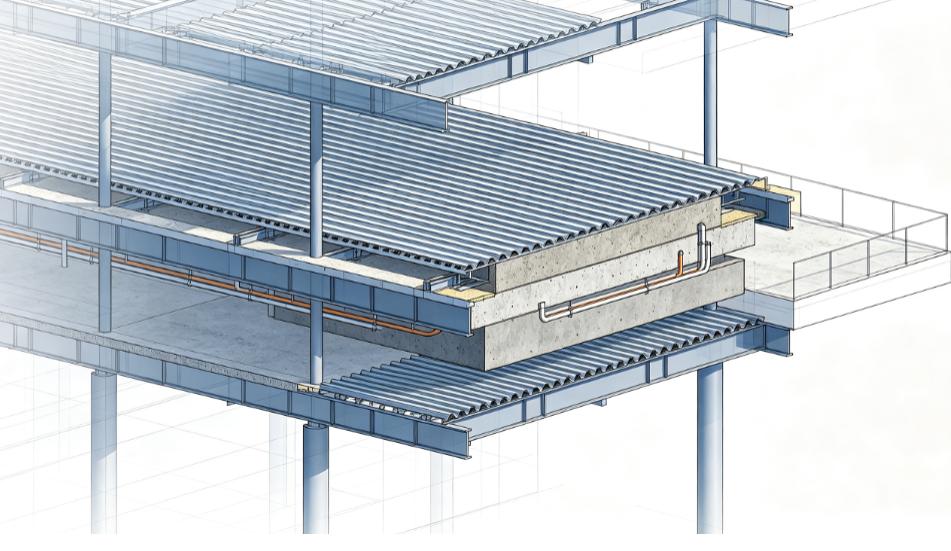

Cellular steel floor deck is a specialized type of floor deck featuring a flat bottom plate welded to the corrugated deck profile, creating enclosed cellular raceways within the deck section. These raceways serve as concealed pathways for electrical wiring, data cables, and mechanical systems, integrating building services directly into the floor structure.
High-Tech Facilities and Data Centers
Cellular deck is particularly valuable in high-tech facilities, data centers, and technology-intensive buildings where extensive cabling and service distribution are required. The concealed raceways eliminate the need for raised access floors or exposed cable trays, creating clean, unobstructed floor surfaces.
Corporate Headquarters and Premium Office Buildings
In corporate office environments where aesthetics and functionality are equally important, cellular deck provides a sophisticated solution for service integration. The flat bottom surface of cellular deck also contributes to improved ceiling aesthetics in spaces below.
Acoustic steel floor deck incorporates perforations and sound-absorbing materials to reduce noise transmission between floors in buildings. These decks help meet strict acoustic requirements while maintaining structural performance.
Open Type Floor Decking HY51-250-750 - HongYe
Auditoriums and Performance Venues
Acoustic deck is essential in auditoriums, theaters, concert halls, and other performance venues where sound quality and noise isolation are critical. The sound-absorbing properties of acoustic deck help control reverberation and prevent sound transmission between spaces.
Schools and Educational Facilities
Classrooms and educational spaces require controlled acoustic environments to support learning. Acoustic steel floor deck helps achieve the STC ratings required by building codes and educational facility standards.
Healthcare Facilities
Hospitals and healthcare facilities demand quiet environments for patient recovery. Acoustic deck contributes to the sound isolation required in patient rooms, treatment areas, and corridors.
Selecting the appropriate steel floor deck for a project requires careful consideration of multiple factors. The following criteria should guide the decision-making process:
The required span between structural supports and the anticipated loads are primary determinants of deck selection. Deeper profiles generally offer greater spanning capacity and higher load resistance. For example, Metfloor 80, Comflor 80, and TR80 profiles are designed for long spans or high load demands such as warehouses, open-plan offices, and car parks. Shallower decks such as MF55, CF51, R51, and CF46 are suited for short-span, light-duty projects.
Composite deck spanning capabilities vary by profile depth: 1.5-inch composite deck typically spans 5 to 9 feet, 2-inch composite deck spans 6 to 12 feet, and 3-inch composite deck spans 6 to 15 feet, depending on gauge and support conditions.
Fire resistance is a critical consideration in building design. Deeper steel floor deck profiles provide greater fire resistance and can reduce reinforcement requirements. Typical fire resistance ratings by deck depth and slab thickness include:
55mm deck with 150mm slab: 60 minutes
60mm deck with 170mm slab: 90 minutes
80mm deck with 200mm slab: 120 minutes
Composite steel deck-concrete assemblies can achieve UL-rated fire resistance. For instance, adding a 5-inch normal weight concrete topping to a steel deck assembly can result in an unprotected 2-hour fire rating for the complete floor system. UL D982 assemblies now cover all common steel-framed floor configurations and provide two-hour assembly ratings with unprotected steel deck.
Acoustic requirements vary by building type and occupancy. Shallower decks such as MF55, R51, and CF51 typically achieve STC ratings of 47-50dB, suitable for most general applications. Deeper, narrower decks such as MF80, CF80, and TR80 achieve STC ratings exceeding 52dB, which is required for healthcare, education, and premium office environments. For high-acoustic demand zones, overlays or resilient insulation may be required.
Standard 600mm cover width on most floor deck profiles allows for rapid floor area coverage. Deep-rib and dovetail profiles streamline building services integration—services can be fixed directly in troughs, reducing the need for drilling and penetrations. Deep rib profiles also support greater spans, reducing the number of steel supports required.
Steel floor deck selection must comply with applicable building codes. SDI standards are referenced in the 2018 and 2021 editions of the International Building Code (IBC). The SDI Floor Deck Design Manual Second Edition (FDDM2) incorporates the requirements of the 2017 ANSI/SDI Design Standards and complies with the 2018 and 2021 IBC. The manual includes load tables and design examples for concentrated loads and scissor lift-type moving loads, as well as considerations for sound transmission and impact.
To help you quickly grasp the differences, here is a concise textual comparison of the major steel floor deck categories.
Composite steel floor deck is distinguished by its embossments that create mechanical interlock with concrete, enabling composite action and making it the first choice for multi-story commercial buildings, high-rises, and parking structures. It is available in depths of 1.5, 2, and 3 inches and excels in long-span, high-load applications where structural efficiency is paramount.
Non-composite form deck, on the other hand, has no embossments and acts only as permanent formwork. It is shallower (typically 9/16 to 1.5 inches) and more economical. Its primary applications include stairways, foundations, low-level mezzanines, renovation works, and light-duty residential or small commercial projects where composite action is not required.
Cellular steel floor deck incorporates a flat bottom plate that forms enclosed raceways for cabling and services. This type is specifically suited for data centers, high-tech facilities, and premium office buildings where integrating electrical and data infrastructure within the floor structure is a key design priority.
Acoustic steel floor deck features perforations and sound-absorbing layers to control noise transmission. It is the preferred solution for auditoriums, schools, healthcare facilities, and any environment where strict acoustic performance—measured by STC ratings—is mandatory.
In summary, the choice among these four types hinges on structural demands (span and load), fire-resistance requirements, acoustic targets, and the need for service integration. Each type has a well-defined niche, and proper selection not only ensures code compliance but also optimizes construction cost, speed, and long-term building performance.
The selection of steel floor deck is far more than a routine specification decision—it is a strategic choice that affects structural integrity, construction efficiency, cost, and long-term building performance. Composite steel floor deck offers unparalleled structural efficiency for multi-story commercial buildings, high-rises, and industrial facilities where long spans and high loads are the norm. Non-composite form deck provides an economical solution for applications where structural synergy with concrete is not required. Cellular deck and acoustic deck address specialized needs for service integration and sound control.
With the global steel floor deck market continuing to grow and SDI standards increasingly referenced in building codes worldwide, understanding the distinctions between deck types and their suitable application scenarios has never been more important. Engineers, architects, and contractors who master this knowledge can design steel structure buildings that are safer, more efficient, and more cost-effective—delivering lasting value to building owners and occupants alike.
As the Steel Deck Institute continues to advance industry standards through publications such as the Floor Deck Design Manual (FDDM2) and the Diaphragm Design Manual (DDM4), the body of knowledge supporting informed deck selection will only grow. For any construction professional working with steel structure systems, staying current with these resources is essential to achieving optimal project outcomes.
