Walk into any modern city and look up. The skyline is dominated by steel structure buildings—office towers, residential complexes, industrial facilities, and logistics centers that define the contemporary urban landscape. But here's a question few people ask: what holds up the floors beneath our feet? What allows these towering steel skeletons to support thousands of tons of weight while remaining flexible, fire-resistant, and cost-effective?
The answer lies in a remarkably ingenious innovation: the floor bearing deck.
While steel beams and columns capture our attention with their dramatic structural presence, the floor bearing deck works quietly behind the scenes—literally beneath our feet—as the indispensable partner that makes modern steel structure construction possible. Without it, the buildings we take for granted would be heavier, more expensive, slower to build, and far less adaptable to our evolving needs.
At its simplest, a floor bearing deck—also known as a composite steel deck, profiled steel sheeting, or metal floor deck—is a cold-formed steel sheet that serves as both a permanent formwork for concrete and a structural reinforcement for the finished floor slab. But that description barely scratches the surface of what this remarkable product actually does.
The floor bearing deck is manufactured from steel sheet conforming to ASTM standards such as A1008 or A653, with minimum yield strengths typically ranging from 33 to 50 ksi. It is roll-formed into distinctive ribbed profiles—typically 1.5 inches, 2 inches, or 3 inches deep—that create a mechanical interlock with the poured concrete above.
When concrete is placed on the steel deck, the two materials form a composite action: the concrete handles compression forces while the steel deck serves as tensile reinforcement. The result is a unified structural system that is far stronger than the sum of its parts. Research has demonstrated that composite floor systems consistently achieve full composite action, with the mechanical interaction between the steel deck and concrete slab enabling superior structural performance.
In short, the floor bearing deck is the bridge—literally and figuratively—between the steel structure framework and the concrete floor slabs that people actually walk on.
To appreciate why modern buildings can't do without floor bearing decks, it helps to understand what came before. Traditional reinforced concrete construction required extensive temporary formwork—wooden or steel molds that supported the wet concrete until it cured. This formwork had to be erected, braced, and later removed, consuming enormous amounts of labor, time, and material.
The floor bearing deck revolutionized this process. Instead of temporary formwork that gets discarded, the steel deck remains permanently in place. It supports the wet concrete during construction and then becomes an integral part of the finished floor system. This dual role—serving as both formwork and reinforcement—represents one of the most significant efficiency improvements in modern construction history.
As one industry expert noted, composite decking can "more than halve time onsite installing floors compared to concrete slabs using conventional temporary formwork". This isn't just incremental improvement; it's a fundamental transformation in how buildings are built.
The most compelling argument for floor bearing decks is structural efficiency. In a composite floor system, the steel deck and concrete slab work together to resist loads. The concrete's compressive strength is complemented by the steel's tensile strength, creating a system that outperforms either material alone.
This synergy delivers measurable results. In experimental studies on profiled steel sheeting systems, specimens with 200 mm slab depths exhibited a 60% improvement in ultimate capacity compared to those with 150 mm slabs. The same study found that the system showed an 81% improvement in de-bonding resistance in thicker slabs. These aren't marginal gains—they represent fundamental improvements in structural performance.
The floor bearing deck also functions as a diaphragm, transferring lateral loads from wind and seismic events to the building's bracing elements. Concrete-filled steel deck diaphragms, "due to their strength, stiffness, and hysteretic characteristics, have demonstrated that they can influence the seismic performance of steel buildings". In earthquake-prone regions, this capability is not just advantageous—it's essential.
In the construction industry, time truly is money. Every day saved on a project translates directly to reduced financing costs, lower labor expenses, and earlier occupancy. The floor bearing deck delivers these savings in spades.

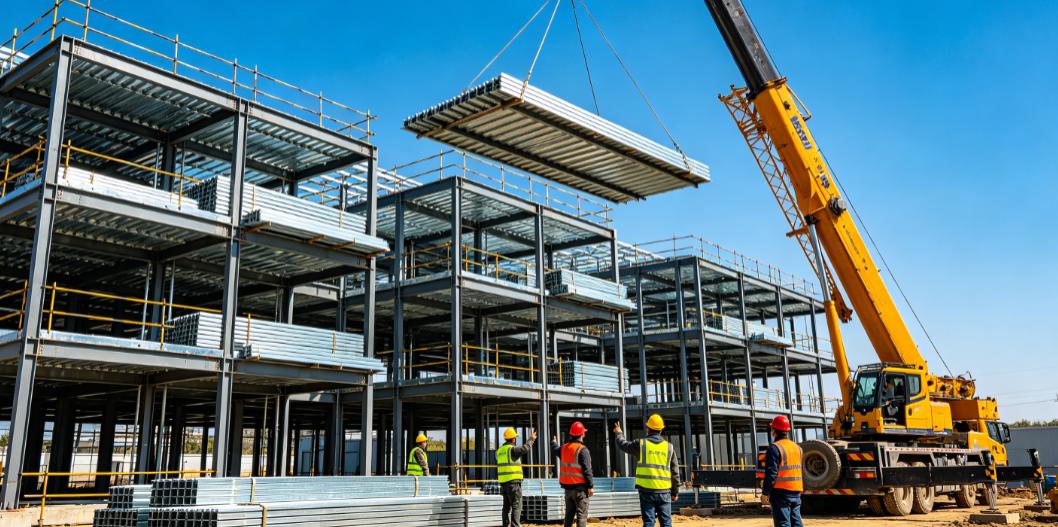

The steel deck arrives at the construction site ready to install. It can be laid quickly across steel beams, providing an immediate working platform for subsequent trades. Workers can place concrete on one floor while steel erection continues on the floor above—a parallel workflow that traditional construction methods cannot match.
Research has shown that prefabricated structural systems, including those utilizing composite steel decks, can achieve a 50% reduction in construction time compared to conventional methods. When multiplied across a multi-story building, these time savings translate into millions of dollars in project cost reductions.
Cost considerations drive many decisions in building design, and the floor bearing deck delivers compelling economics. Composite steel deck concrete floor systems typically range from $10 to $20 per square foot, though this varies with project complexity and market conditions.
But the true cost advantage extends beyond the initial material price. The reduced construction schedule lowers financing costs, crane rental, and site supervision expenses. The elimination of temporary formwork removes both material costs and labor for assembly and removal. The lighter weight of composite floors reduces foundation requirements—a significant saving in multi-story buildings.
The long-span capabilities of modern floor bearing decks further enhance cost-efficiency. By reducing the number of supporting beams required, these systems decrease the total steel tonnage in the steel structure. Less steel means lower material costs, lighter foundations, and reduced embodied carbon.
Modern architecture demands open, flexible interior spaces. Column-free floor plans allow for adaptable layouts that can evolve with changing tenant needs. The floor bearing deck makes this possible through long-span capabilities.
Composite floor systems can achieve clear spans of up to 28 feet between support members. Deep rib decks with profiles of 4.5, 6, and 7.5 inches can deliver "high-performance spans of well over 30 feet". These long spans reduce the number of columns needed, creating the open floor plates that modern buildings demand.
Dovetail composite decks, available in 2- and 3.5-inch profiles, can provide "an exceptionally thinner total floor depth, while reducing story height and maximizing ceiling height". This is particularly valuable in multi-story buildings where every inch of floor-to-floor height matters.
Sustainability is no longer a niche concern—it's a driving force in modern construction. Floor bearing decks contribute to greener buildings in multiple ways.
First, the reduced material usage is significant. Prefabricated systems have been shown to achieve an 84% decrease in material usage compared to conventional construction. Less concrete means lower carbon emissions from cement production. Less steel means reduced energy consumption in manufacturing.
Second, steel is infinitely recyclable. At the end of a building's life, the steel deck can be recovered and recycled into new products. This circular economy approach aligns with the growing emphasis on sustainable construction practices.
Third, the lighter weight of composite floors reduces the foundation requirements, further decreasing the overall material footprint of the building.
Steel structure buildings themselves are characterized by "shorter construction periods, flexible spatial layouts, strong seismic and wind resistance, and green, low-carbon and recyclable attributes". The floor bearing deck is an essential enabler of these sustainability benefits.
Not all floor bearing decks are created equal. The industry offers a variety of profiles and configurations to suit different applications:
Conventional Trapezoidal Decks are the workhorses of the industry, suitable for relatively short floor spans without temporary shoring. They're economical and widely available.
Deep Rib Decks feature profiles of 4.5, 6, and 7.5 inches, enabling spans well over 30 feet. Their deep fluted appearance can also serve as an exposed architectural ceiling.
Dovetail Decks provide excellent concrete bond and can achieve UL fire ratings with the thinnest floor sections available.
Cellular Decks incorporate hollow spaces that can conceal mechanical, electrical, and plumbing systems—a significant advantage in buildings with complex service requirements.
2VLI and 3VLI Decks are popular profiles for elevated floor slabs, with depths of 2 inches and 3 inches respectively.
Each type serves specific project requirements, allowing engineers to optimize the floor system for span, load, fire resistance, acoustics, and cost.
The numbers tell a compelling story about the growing importance of steel structure construction and, by extension, floor bearing decks. The global structural steel fabrication market was valued at $166.3 billion in 2025and is projected to grow at a CAGR of 10.9% to reach $423.3 billion by 2034.
In China alone, the steel structure building market reached approximately RMB 450 billion (about $62 billion) in 2025, with expectations to approach RMB 490 billion by 2030. Industrial buildings represent the largest and fastest-growing segment.
The global steel structure market is similarly robust, growing from $118.15 billion in 2024 to $124.72 billion in 2025, a CAGR of 5.6%.
These market figures reflect a fundamental shift in construction methodology. As the world builds more—and builds taller, faster, and greener—the floor bearing deck becomes not just a convenience but a necessity.
The reliability of floor bearing decks is ensured through rigorous standards and specifications. In the United States, composite steel floor deck is typically manufactured from steel conforming to ASTM Designation A1008 (A1008M), Grades 33 and 40, or from A653 (A653M), Structural Sheet Steel.
The Steel Deck Institute (SDI) provides comprehensive standards for design and erection. The ANSI/SDI-NC1.0 Standard for Non-Composite Steel Floor Deck and similar standards for composite decks establish the technical framework that ensures safety and performance.
Shear studs are typically welded through the deck to the supporting steel beams, creating the composite action between the steel structure and the concrete slab. The minimum bearing requirement on steelwork is typically 50mm, increased to 60mm where shear studs are used.
The floor bearing deck may not be the most glamorous component of modern construction, but it is unquestionably one of the most important. It transforms the steel structure from a skeletal framework into a complete, functional building. It enables faster construction, lower costs, greater design flexibility, and more sustainable outcomes.
As urbanization continues and the demand for efficient, sustainable buildings grows, the floor bearing deck will become even more essential. New profiles, improved materials, and innovative connection systems continue to expand the capabilities of this humble but indispensable product.
The next time you walk into a modern steel structure building—whether it's an office tower, a hospital, a school, or a warehouse—take a moment to appreciate what's beneath your feet. The floor bearing deck is there, silently doing its job, proving that sometimes the best partnerships are the ones you never notice.
Concrete has found its best buddy. And modern buildings can't do without either one.
