YXB-65-170-510 is a reliable steel truss floor bearing plate with a coil width of 1000mm. Thickness 0.8-1.2mm delivers section moment of inertia 69.32-83.8 cm⁴/m and section modulus 26.6-38.3 cm³/m. Suitable for flexible roof systems, it benefits from Wuxi Yataida’s 500,000㎡ annual production capacity and strict quality management. Ideal for industrial and commercial buildings, it offers quick assembly and superior load-bearing capacity.
| Quantity: | |
|---|---|
The YXB 65-170-510 is a high-performance steel structure floor bearing deck designed for modern construction projects. As a core product of professional steel structure manufacturers, it integrates stability, durability, and versatility, making it a preferred choice for builders and engineers worldwide. Crafted with advanced production equipment and sophisticated craftsmanship, this floor bearing plate adheres to strict quality management systems to ensure reliable performance in various architectural scenarios.

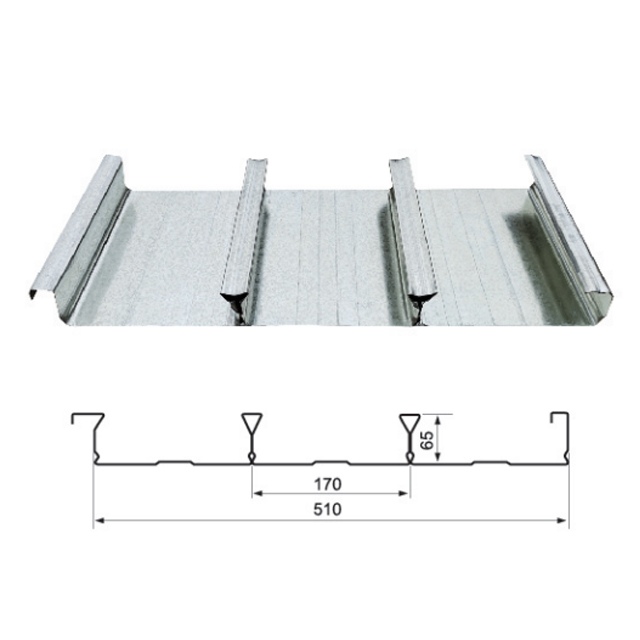

Its name reflects key structural features: "65" represents the height of the section, "170" denotes the pitch, and "510" refers to the effective width. The product is made of high-quality steel, which undergoes precise processing to achieve excellent mechanical properties. Whether used in flexible roof systems or floor structures, the YXB 65-170-510 maintains structural integrity even under complex loads, embodying the manufacturer’s commitment to "quality conquers hearts".
Industrial plants require floor and roof systems that can withstand heavy equipment, frequent operations, and harsh working conditions. The YXB 65-170-510, with its robust structure and high load-bearing capacity, is ideal for supporting industrial machinery and ensuring long-term operational safety. Its resistance to wear and corrosion also adapts to the humid or dusty environments common in factories.
Modern commercial buildings, such as shopping malls and office towers, demand both structural stability and aesthetic flexibility. This floor bearing plate integrates seamlessly with various architectural designs, providing a solid foundation for interior layouts. It is particularly suitable for large-span spaces, eliminating the need for excessive supporting columns and maximizing usable area.
Warehouses and logistics centers require durable flooring to handle heavy cargo stacking and frequent forklift movement. The YXB 65-170-510’s excellent moment of inertia and section modulus ensure it can bear concentrated loads without deformation, enhancing the efficiency and safety of cargo storage and transportation.
Public facilities like schools, hospitals, and stadiums prioritize structural safety and longevity. This product meets the strict standards of public construction projects, offering reliable performance in high-traffic areas. Its compatibility with flexible roof systems also makes it suitable for stadium canopies and hospital roof structures.
Product Model: YXB 65-170-510
Expanded Width: 1000mm
Application: Flexible roof systems and floor structures
Processing Technology: Precision roll forming with advanced automated production lines
The mechanical properties of YXB 65-170-510 are backed by strict testing, with the following key specifications (data sourced from official technical documents):
Thickness (mm) | Moment of Inertia (cm⁴/m) | Section of Modulus (cm³/m) |
0.8 | 55.7 | 26.6 |
1.0 | 69.32 | 34.3 |
1.2 | 83.8 | 38.3 |
These parameters ensure the product’s ability to resist bending and deformation, providing stable support for various construction scenarios. The thickness options allow customization based on specific project requirements, balancing performance and cost-effectiveness.
The primary advantage lies in its balanced combination of structural stability and versatility. Its optimized section design delivers excellent moment of inertia and section modulus, enabling it to withstand heavy loads while maintaining a lightweight structure. Additionally, it is produced with high-quality steel and strict quality control, ensuring long service life and resistance to corrosion and wear.
Yes. The manufacturer accepts incoming material processing and provides customized processing services. Clients can select from thickness options (0.8mm, 1.0mm, 1.2mm) or discuss specific requirements for dimensions and performance to meet the unique needs of different construction projects.
Absolutely. The product is specifically designed for flexible roof systems, as verified by its technical parameters and application cases. Its structural design adapts to the dynamic loads and environmental changes of flexible roofs, ensuring tight integration and long-term stability.
The product is accompanied by professional installation guidelines. It is recommended to use trained construction teams familiar with steel structure floor bearing plate installation. During installation, follow the manufacturer’s specifications for connection methods and spacing to ensure structural integrity. The manufacturer also provides technical support to address installation-related issues.
