On a cloudless morning in Nevada’s Copper Mountain solar complex, more than 1.8 million photovoltaic modules rotate in near-perfect unison. Their axis tilts east to west, chasing the sun’s arc with a precision that would have seemed impossible a decade ago. This is not a static field of glass and aluminium—it is a vast, choreographed machine, and its skeleton is made of C Shaped Steel.
Utility-scale solar has entered a new era. In 2025, global installed solar capacity surpassed 2 terawatts (TW) for the first time, with utility-scale projects accounting for over 60 % of that total. Behind every megawatt lies a tracker—a dynamic steel structure that boosts annual energy yield by 20–30 % compared to fixed racks. Yet the most critical engineering decisions are not about inverters or silicon wafers; they are about the steel structure that must survive 25 years of wind, snow, corrosion, and daily mechanical fatigue.
This article unpacks why C Shaped Steel has become the undisputed backbone of modern solar trackers, from ground-mount foundations to the high-voltage grid connection.

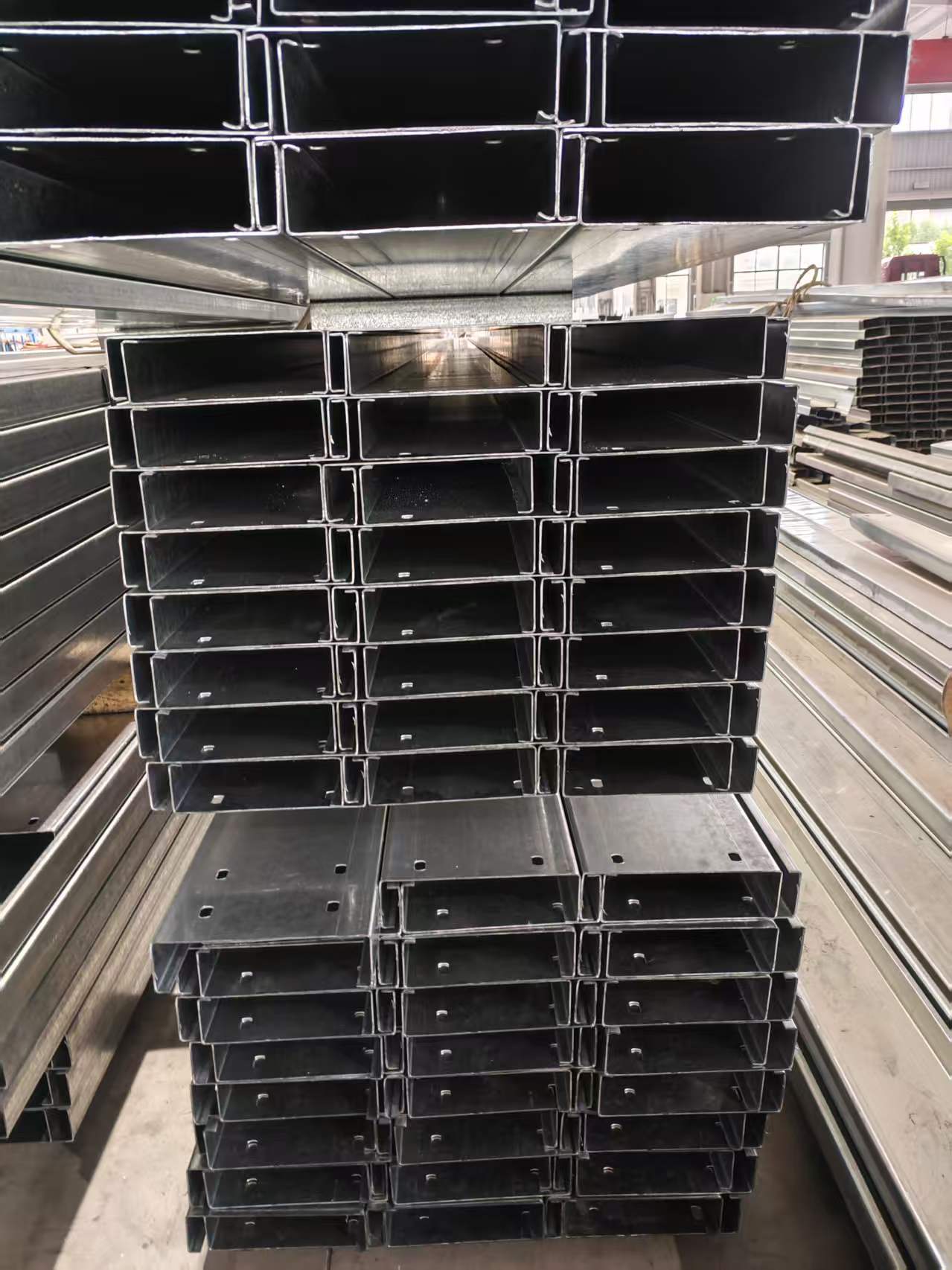

C Type Channel Steel Purlin Light Weigh Galvanized Profiles
The solar tracker market is booming. According to Wood Mackenzie’s Global Solar Tracker Market Share 2026 report, tracker shipments reached 134 GWdc in 2025, a 19 % year-on-year increase, and are projected to exceed 200 GWdc by 2028. The global utility-scale tracker market was valued at approximately USD 5.4 billion in 2025 and is expected to grow at a compound annual rate of 14.8 % through 2032, nearing USD 15 billion.
What drives this growth? First, falling module prices have made tracking’s incremental cost highly attractive. Second, developers in high-irradiance regions (the US Southwest, the Middle East, Australia) routinely specify single-axis trackers to maximise project internal rates of return. Third, new bifacial modules produce more power from rear-side irradiance, and trackers optimise this gain.
Every single tracker, however, is a load-bearing steel structure that must resist torsional moments, wind-induced flutter, and gravitational creep. The choice of section shape directly affects material consumption, installation speed, and long-term reliability. C Shaped Steel has emerged as the optimal solution, not by chance, but by rigorous engineering calculus.
A typical horizontal single-axis tracker (HSAT) consists of four primary structural subsystems:
Foundation piles – driven steel posts that transfer loads to the ground.
Torque tube – the main rotating beam (often a round or square hollow section) that carries the modules.

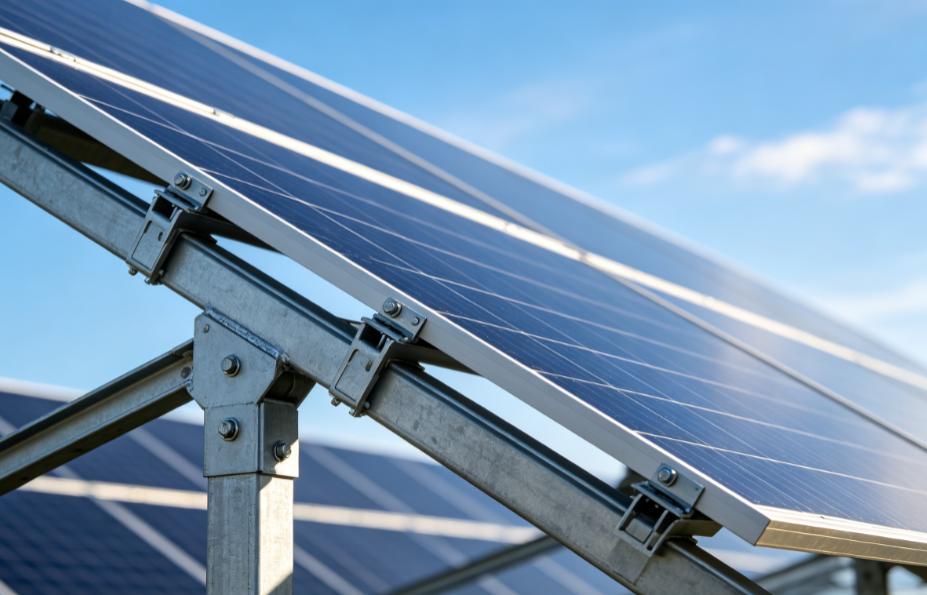

Purlins (cross-beams) – secondary members that support the module frames.
Drivetrain and dampers – mechanical actuators and stabilisers.
C Shaped Steel is predominantly used in two roles:
(a) as purlins that span between torque tubes, and
(b) as bracing and diagonal members that stiffen the array against wind-induced torsion.
In a representative 1-MW tracker system, C Shaped Steel accounts for roughly 70–80 % of the total structural weight. For instance, a documented 530-kg structural assembly contained 429 kg of C Shaped Steel—the remainder being torque tube steel and fasteners. This dominance stems from the C-section’s unique combination of high moment of inertia, light weight, and ease of connection.
The geometry is deceptively simple: a web with two flanges creates an open section that resists bending about its major axis while offering sufficient torsional stiffness when paired with module clamping. Unlike closed sections (e.g., rectangular tubes), C Shaped Steel allows easy access for bolted or clamped connections—a crucial advantage for field assembly.
Why not use I-beams, angle irons, or aluminium extrusions? The answer lies in specific stiffness (stiffness per unit mass) and buckling resistance.
C Shaped Steel for trackers is almost always cold-formed from high-strength low-alloy (HSLA) steel coils. The cold-forming process work-hardens the material, boosting yield strength from 250 MPa to over 350–450 MPa without additional heat treatment. This allows designers to use thinner gauges (typically 2.0–4.0 mm) while maintaining structural integrity.
Recent research on high-strength cold-formed C Shaped Steel purlins (grades such as LQ550) has demonstrated that properly reinforced sections can withstand design wind pressures exceeding 2.5 kN/m² and snow loads up to 3.6 kN/m²—matching or exceeding the performance of heavier hot-rolled sections. The open web also facilitates drainage and reduces wind debris accumulation.
Patented innovations have further improved the C-section. For example, some manufacturers now produce C Shaped Steel with stiffening ribs along the web, which increase local buckling resistance by up to 40 % without adding material. Others have introduced asymmetric flanges to better distribute clamping forces from module attachment bolts.
Crucially, the torsional behaviour of a tracker’s main beam is influenced by the purlin connections. When C Shaped Steel purlins are bolted to the torque tube, they create a torsional diaphragm that distributes wind-induced moments across multiple bays. Finite-element analyses have shown that using C Shaped Steel cross-beams reduces peak torque tube stresses by 15–20 %, enabling a lighter torque tube design—a cascading cost saving.
The Achilles’ heel of any outdoor steel structure is corrosion. Solar farms are often sited in deserts (abrasive sand), coastal zones (salt spray), or agricultural fields (humidity and fertiliser residues). Traditional hot-dip galvanising (Z600 coating) provides 20–25 years of protection, but the industry is rapidly shifting to zinc-aluminium-magnesium (Zn-Al-Mg) coated C Shaped Steel.
Zn-Al-Mg coatings, such as ArcelorMittal’s Magnelis® or Tata Steel’s ZM® , offer three distinct advantages:
Self-healing edges – the magnesium-rich phase migrates to cut edges, protecting them from red rust.
Higher corrosion resistance – in salt-spray tests (ISO 9227), Zn-Al-Mg outlasts conventional galvanising by a factor of 2–3.
Reduced coating weight – equivalent protection can be achieved with 40 % less zinc, lowering the carbon footprint.
For C Shaped Steel used in trackers, the Zn-Al-Mg coating is applied via continuous hot-dip lines before cold-forming, ensuring uniform coverage over the entire section. Many suppliers now guarantee 30-year perforation-free service for these coated sections, matching the typical project finance horizon.
Moreover, the coating’s lubricity facilitates cold-forming, reducing tool wear and producing smoother edges—critical for worker safety during installation.
In utility-scale solar, the levelised cost of energy (LCOE) is king. Structural steel typically represents 10–15 % of total EPC (engineering, procurement, construction) costs. Optimising the steel structure can therefore shave cents per watt from the installed cost.
C Shaped Steel delivers savings through four channels:
Material efficiency – Its high strength-to-weight ratio means fewer kilograms per MW. For a 100-MW plant, switching from rectangular tubes to C Shaped Steel purlins can save 300–400 tonnes of steel, equivalent to roughly USD 300,000–400,000 at 2026 prices.
Transport logistics – C-sections nest compactly, reducing shipping volume by 20–30 % compared to I-beams or tubes. This lowers freight costs and carbon emissions.
Installation speed – Pre-punched holes and clip-on connections allow a two-person crew to install purlins at a rate of 60–80 sections per hour, versus 30–40 for bolted angle frames. Labour savings can reach USD 0.02/Wdc.
Foundation savings – Lighter superstructures permit smaller diameter piles or shallower driven depths. In rocky or challenging geologies, this can reduce foundation costs by up to 15 %.
A 2025 benchmark study by the National Renewable Energy Laboratory (NREL) estimated that optimised C Shaped Steel tracker designs could reduce overall structural costs by 8-12 % compared to conventional hot-rolled solutions, translating to a 2-3 % reduction in total project capital expenditure.
Wind is the dominant load for most trackers. During stow (night or high-wind) conditions, panels are tilted to a horizontal or near-horizontal position to minimise drag. But operational trackers are exposed to fluctuating pressures that induce galloping and vortex shedding.
C Shaped Steel contributes to wind resilience in two ways:
Damping – The open section, when combined with module clamps, provides inherent friction damping that dissipates vibrational energy. Field measurements have shown that C Shaped Steel purlin systems exhibit 10-15 % higher structural damping than equivalent closed sections.
Stiffness redundancy – Multiple C Shaped Steel braces create a triangulated frame that resists racking. In the event of a single component failure (e.g., a loose bolt), the redundancy allows the structure to remain stable until maintenance.
Design codes such as ASCE 7-22 and Eurocode 3 (EN 1993-1-1) now include specific provisions for cold-formed C Shaped Steel in solar applications. These codes require thorough checks for local buckling, distortional buckling, and lateral-torsional buckling—all of which are well-addressed by modern C Shaped Steel profiles with stiffened flanges.
Z Purlin Galvanized Steel Z Shape Purlin for Factory
To see C Shaped Steel in action, consider the fictional but representative “Desert Sunlight” project in California’s Mojave Desert (patterned after real-world installations). The plant uses 3,200 single-axis trackers, each with a 2-in-2 (two modules in portrait) configuration. The engineering team selected C Shaped Steel purlins (200 mm web × 70 mm flange, 3 mm thick) with Zn-Al-Mg coating.
Key outcomes after two years of operation:
No structural failures reported despite 40+ m/s wind gusts during a 2025 storm.
Installation time for the tracker steel structure was 22 % below budget.
Overall tracker availability exceeded 99.7 %, with zero downtime attributed to structural issues.
The project’s structural lead noted: “The C Shaped Steel sections gave us the stiffness we needed without the weight penalty. Their compatibility with automated bolting systems was a game-changer for our schedule.”
Solar energy is green, but its infrastructure must also be sustainable. Steel is the world’s most recycled material—about 85-90 % of structural steel is recovered and remelted at end-of-life. C Shaped Steel is 100 % recyclable, and its cold-forming process consumes less energy than hot-rolling.
Moreover, lightweight C Shaped Steel reduces the embodied carbon per MW. Using electric-arc furnace (EAF) steel with high scrap content, some suppliers now offer C Shaped Steel with an embodied carbon of less than 300 kg CO₂ per tonne, compared to the global average of ~1.8 tonnes for primary steel. When combined with longer tracker lifetimes (30 years), the carbon amortisation becomes negligible against the clean energy generated.
The next decade will see even smarter applications of C Shaped Steel. Digital twin models, fed by real-time strain gauges, will enable predictive maintenance of steel structure components. AI-driven design optimisation tools are already generating C Shaped Steel profiles with non-uniform web heights to precisely match site-specific wind maps.
Additive manufacturing (3D printing) is still too slow for mass production, but roll-forming lines are becoming more flexible, allowing custom C Shaped Steel sections per project. Some manufacturers are exploring high-entropy alloys and duplex stainless steels for extreme corrosion environments, though cost remains a barrier.
Meanwhile, the push for taller trackers (to accommodate larger modules and higher row-to-row clearance) demands even stronger and stiffer C Shaped Steel—an area where ongoing research into ultra-high-strength cold-formed steels (yield > 700 MPa) promises to deliver the next leap in performance.
From the ground—where foundation piles anchor against Earth’s shifting forces—to the grid—where clean electrons flow into transformers and transmission lines—C Shaped Steel is the quiet enabler that makes utility-scale solar tracking feasible, affordable, and durable.
It is not glamorous. It does not appear in headlines about new module efficiencies or battery storage breakthroughs. But without a reliable steel structure built from optimised C Shaped Steel, the world’s 2-terawatt solar fleet would be a collection of wobbly, short-lived racks.
As the industry moves toward 5 TW by 2035, the demand for high-performance C Shaped Steel will only intensify. Engineers, project developers, and financiers alike would do well to remember: behind every flawless sun-tracking trajectory lies a cold-formed, galvanised, meticulously engineered C Shaped Steel section—holding the future of energy firmly in place.
