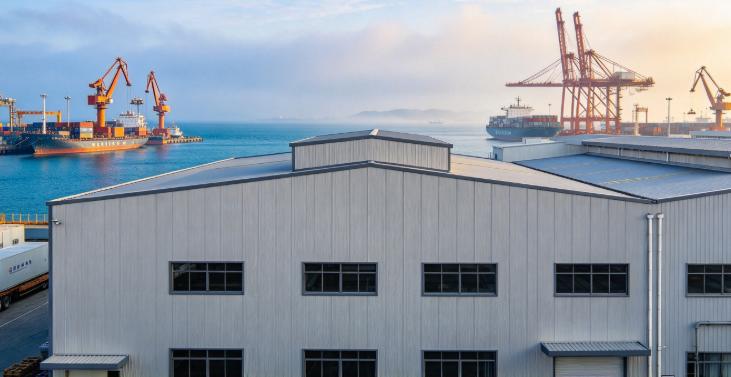

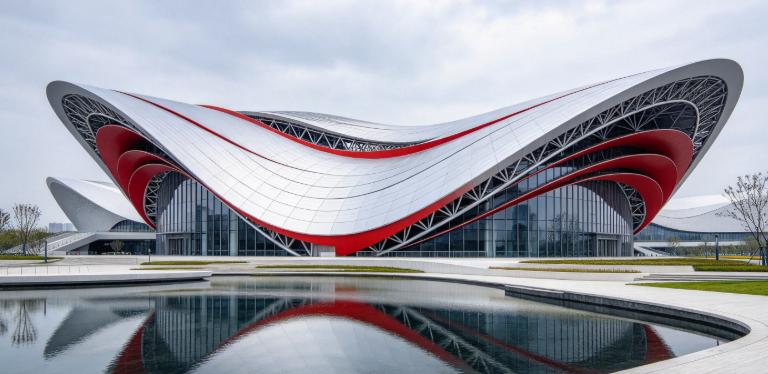

Every color steel sheet that leaves a modern coating line—whether destined for a warehouse roof, a stadium facade, or an agricultural steel structure—is the product of a continuous, highly controlled manufacturing sequence. The transformation from a cold-rolled steel coil to a finished profiled panel involves five major stages: metallic coating, chemical pretreatment, organic coating application, high-temperature curing, and roll forming. Each stage builds on the chemical and mechanical integrity established by the one before it, and each decision made along the way determines whether the final prepainted steel will perform for ten years or forty.
The scale of this industry is substantial. As of December 2025, China alone operates approximately 56.59 million tonnes of annual color steel sheet production capacity, with East China accounting for 67.26% of that total. In the first eleven months of 2025, China exported 8.64 million tonnes of coated steel strip, a year-on-year increase of 22.57%. These figures reflect the material's role as a foundational component of modern steel structure construction, where factory-applied coatings replace field painting and reduce both labor costs and environmental emissions. For engineers and specifiers, understanding the full production flow of coated steel is not merely academic—it is the key to selecting materials that will protect a building envelope for decades.
YX 51-250-750 Prepainted Steel Plate
The starting point of any color steel sheet is a steel substrate, typically cold-rolled coil with a thickness between 0.2 mm and 1.6 mm and a width of 600–1600 mm. Cold-rolled steel provides a smooth, uniform surface essential for consistent coating adhesion, but it offers no inherent corrosion protection. That protection is supplied by the metallic coating applied in the galvanizing line, and it is the first line of defense for the eventual steel structure.
More than 60% of global galvanizing production is accomplished through continuous hot-dip galvanizing lines, where the steel strip is fed from a coil, cleaned, annealed if necessary, and immersed in a molten zinc bath at approximately 450–460°C. The strip emerges coated with zinc, and the coating weight is controlled by gas knives that wipe excess molten metal from the surface. The zinc layer performs a dual function: it acts as a physical barrier against moisture and oxygen, and it provides sacrificial anodic protection. Because zinc has a more negative electrochemical potential than iron, it corrodes preferentially at cut edges and scratches, preserving the underlying steel structure from red rust formation. This is why even a scratched color steel sheet can continue to protect a steel structure for years without visible corrosion.
For premium color steel sheet products, zinc-aluminium-magnesium (Zn-Al-Mg) alloy coatings have become increasingly common. The addition of magnesium at approximately 3 weight percent substantially improves cut-edge corrosion resistance by promoting the formation of protective magnesium-containing corrosion products. Alternative substrates include Galvalume (55% aluminium, 43.5% zinc, 1.5% silicon) and Galfan (95% zinc, 5% aluminium), each offering different trade-offs between corrosion performance and cost. The choice of metallic coating directly influences the service life of the prepainted steel and the steel structure it protects.
Industry practice has established a quantitative relationship between coating weight and substrate thickness. The "zinc ratio"—defined as the single-side zinc coating weight in grams per square meter divided by the substrate thickness in millimetres—should exceed 100 to ensure adequate cut-edge protection in architectural color steel sheet. A 0.5 mm thick panel, for example, requires at least 50 g/m² of zinc per side. This criterion directly influences the long-term performance of the finished steel structure. When specifying coated steel for a steel structure in a corrosive environment, the zinc ratio is one of the first parameters that should be verified.
After galvanizing, the coil must be prepared for organic coating. The surface of galvanized steel is chemically active and may carry residual oils, oxides, and contaminants from the galvanizing process. Without proper pretreatment, the organic coating would fail to adhere, leading to premature delamination and corrosion of the color steel sheet. This stage is therefore critical for the durability of any steel structure that relies on coated steel for its envelope.
The first pretreatment step is alkaline cleaning, which removes organic soils, rolling oils, and particulate contamination. In a typical horizontal spray degreasing section, the strip passes through three successive stages: spray nozzles with brushes, spray nozzles alone, and a final rinse. Alkaline cleaners are invariably used for steel and zinc-coated substrates because they are the most efficient at removing organic soils. The alkali concentration is typically maintained at 5–6% in the cleaning tanks, followed by high-pressure water spraying to remove residual cleaner. A clean surface is the foundation for a color steel sheet that will resist corrosion for decades.
Following cleaning, the strip receives a conversion coating that serves as the molecular bridge between the inorganic zinc surface and the organic paint system. Historically, chromate conversion coatings were widely used, formed by reacting the metal surface with a solution containing chromates or chromic acid. These coatings provide excellent corrosion resistance and paint adhesion. However, environmental and health concerns regarding hexavalent chromium have driven the industry toward chrome-free alternatives, including titanium- and zirconium-based conversion coatings and "no-rinse" technologies that apply a very thin chemical layer to bond the organic coating to the steel.
The conversion coating is applied by roll coating or immersion, with a typical dry film thickness of less than 1 µm. After application, the strip is dried uniformly before entering the coating section. A well-controlled conversion coating is critical: it determines the adhesion of the primer and the ultimate corrosion resistance of the finished color steel sheet. For any steel structure exposed to humid or marine environments, the quality of this pretreatment step often determines whether the coating system survives beyond its warranty period.
YX 51-250-750 Prepainted Steel Plate
The organic coating system of a color steel sheet typically consists of two layers: a primer and a topcoat. Each layer has a distinct chemical function, and together they determine the aesthetic and protective performance of the final prepainted steel used in a steel structure.
The primer is applied by reverse roller coating, a precision method in which a pickup roll transfers paint from a pan to an applicator roll, which then deposits a controlled film onto the moving strip. The primer serves two purposes: it provides corrosion inhibition through inhibitive pigments, and it promotes adhesion between the conversion coating and the topcoat. Typical dry film thickness for the primer is 3–8 µm.
Primer formulations are commonly based on epoxy or polyester resins. Epoxy primers offer excellent adhesion and corrosion resistance, while polyester primers provide better flexibility for subsequent forming operations. The choice depends on the intended application of the color steel sheet: architectural panels that will be roll-formed require primers with sufficient flexibility to withstand bending without cracking. A primer that fails during forming will leave the steel structure vulnerable to corrosion at every bend.
The topcoat is the visible, functional surface of the color steel sheet. It determines colour, gloss, UV resistance, and chemical durability. Topcoats are applied by the same reverse roller coating method, typically at a dry film thickness of 15–25 µm, bringing the total coating thickness to 20–40 µm.
The chemical composition of the topcoat varies by performance tier. Polyester (PE) coatings offer good formability and colour range at low cost but degrade under UV exposure within 7–8 years. Silicon-modified polyester (SMP) incorporates silicone resins at 5–50% modification ratios, extending UV resistance to 10–12 years. High-durability polyester (HDP) uses cyclohexane-structured monomers and UV stabilizers to reach approximately 15 years of weather resistance. PVDF (polyvinylidene fluoride) coatings, with their carbon-fluorine bonds (bond energy approximately 485 kJ/mol), represent the highest tier, achieving 20–25 years of corrosion life and colour warranties extending to 35 years. Industry specifications require PVDF content of no less than 70% in the coating formulation. When a steel structure demands maximum longevity, PVDF-coated color steel sheet is often the specified choice.
On the reverse side of the strip, a back coat or service coat is applied. This layer is not decorative; it protects the back surface during transport and installation and may be formulated to accept adhesives when the color steel sheet is used in insulated sandwich panels for steel structure envelopes. A quality back coat also prevents corrosion from developing on the hidden side of the panel, which is often the first point of failure in poorly manufactured coated steel.
The applied coatings are wet films containing solvents that must be evaporated and resins that must be crosslinked to form a durable, continuous film. This is accomplished in the curing oven, the most energy-intensive section of the colour coating line. The curing stage ultimately determines the chemical resistance and mechanical durability of the color steel sheet.
Most organic coatings cure in the peak metal temperature (PMT) range of 200–250°C. To achieve this PMT, the oven temperature is typically set higher—often in the range of 250–350°C—because the strip moves through the oven at high speed and must absorb enough heat to reach the required temperature within the dwell time, which is typically 20–30 seconds for a liquid coating. The curing process involves solvent evaporation, resin flow and levelling, and crosslinking reactions that convert the thermoplastic or partially cured film into a thermoset network.
Precise temperature control is essential. If the PMT is too low, the coating remains under-cured, leading to poor adhesion, reduced corrosion resistance, and potential blocking (sticking) when the coil is rewound. If the PMT is too high, the coating may become brittle, discoloured, or lose adhesion due to over-crosslinking or thermal degradation. An improperly cured prepainted steel will fail prematurely, compromising the entire steel structure envelope.
After exiting the curing oven, the strip is cooled by water spray or air quenching to below 40°C before rewinding. The cooled color steel sheet coil is then inspected for coating thickness, colour consistency, and surface defects. Coating thickness is measured by magnetic thickness gauges, adhesion is tested by cross-hatch or grid methods, and corrosion resistance is verified through salt spray testing (ASTM B117 or ISO 9227). Finished coils are slit to the required width or shipped as full coils to roll-forming facilities. Every coil of coated steel that passes these tests carries with it the assurance that the steel structure it will eventually clad has a reliable protective skin.
The final transformation of color steel sheet into a usable building product occurs at the roll forming line. Roll forming is a continuous bending operation in which a flat strip is passed through a series of paired rolls, each pair performing an incremental bend until the desired cross-sectional profile is achieved. This is the most common method for producing building roof and wall panels from color steel sheet.
A typical roll-forming line for architectural panels consists of an uncoiler, an entry guide, a series of forming stations (often 12 to 24 pairs of rolls), a cut-off press, and a run-out table. The number of stations depends on the complexity of the profile: a simple trapezoidal roof sheet may require 12–16 stations, while a deep ribbed or concealed-fix profile may require 20 or more. The strip is cold-formed at ambient temperature, meaning the coating must possess sufficient flexibility to withstand the bending strains without cracking or delamination. A color steel sheet with a brittle coating will fail at the bend radii, exposing the steel structure to corrosion.
The mechanical properties of the substrate steel are critical at this stage. High-strength structural grades with yield strengths of 280–345 MPa allow for thinner color steel sheet in architectural cladding without compromising load-bearing capacity—an important consideration for large-span steel structure envelopes. The steel must also maintain sufficient elongation to accommodate the forming strains, particularly at the bend radii of the profile. When a steel structure is designed with long spans or high wind loads, the roll-forming characteristics of the prepainted steel become a structural parameter, not just a manufacturing detail.
As the strip progresses through the forming stations, it is progressively shaped from a flat sheet into the final profiled panel. The formed panel is then cut to the specified length by a flying shear or cut-off press that travels with the strip, allowing continuous production without stopping the line. Finished panels are stacked, bundled, and prepared for shipment. The profiled color steel sheet is now ready to become part of a steel structure, whether as a roof, wall, or facade element.
Throughout the production flow, quality control ensures that the finished color steel sheet meets the performance requirements of its intended application. Key tests include coating thickness measurement, adhesion testing (cross-hatch and bend tests), salt spray resistance, colour difference measurement, and gloss retention evaluation after accelerated weathering. International standards such as EN 10169, ASTM A755, and JIS G3312 define the performance categories and test methods. For any steel structure project, these certifications provide the evidence that the coated steel will perform as specified.
Environmental performance has become an increasingly important dimension of the production flow. The curing ovens generate solvent emissions that must be treated through thermal oxidation or solvent recovery systems. Recent innovations have demonstrated significant reductions: in 2025, WISCO launched a water-based coated color steel sheet that achieved an 86% reduction in VOC emissions per tonne of steel compared with conventional solvent-based systems. Recycled content is also increasing, with some manufacturers incorporating up to 25% recycled plastic into their coating formulations. These developments make color steel sheet an increasingly sustainable choice for steel structure construction, aligning with green building standards and life-cycle assessment requirements.
The journey from raw coil to profiled panel is a sequence of precisely controlled chemical and mechanical transformations. The galvanizing line establishes the electrochemical foundation. Pretreatment creates the molecular interface. Coating application defines the aesthetic and protective surface. Curing locks the system into a durable thermoset network. Roll forming shapes the finished color steel sheet into a functional building component. Understanding this flow is not merely academic: for engineers specifying materials for steel structure projects, the decisions made at each stage—coating weight, pretreatment chemistry, topcoat formulation, and curing parameters—determine whether a building envelope will perform for ten years or forty. The production flow is, in effect, the biography of the prepainted steel, and its final chapter is written on the steel structure itself. When you specify a color steel sheet, you are not just choosing a colour; you are choosing a process, a chemistry, and a level of durability that will define the performance of the steel structure for generations.
