Walk into any modern high-rise office, multi-story car park, hospital, or school, and you will likely experience something remarkable without even noticing it: a floor that feels solid, stable, and seamless. Beneath that finished surface— whether carpet, tile, or polished concrete—lies one of the most ingenious structural innovations in modern construction: floor bearing decking.
This humble profiled steel sheet, often no thicker than a few millimeters, transforms from a simple metal panel into an integral part of a load-bearing floor system capable of supporting immense weights over vast spans. It is the invisible strongman of the construction world—a component that goes unnoticed yet carries the weight of entire buildings.
This article takes you on a journey from raw steel coil to finished composite floor, revealing the science, engineering, and real-world performance that make floor bearing decking an indispensable element of modern steel structure construction.
The story of floor bearing decking begins with cold-formed steel sheet. Manufactured from steel coils, these sheets are roll-formed into specific profiles—typically trapezoidal, re-entrant, or dovetail shapes—each designed for particular performance characteristics. The Steel Deck Institute (SDI), whose standards are referenced in the International Building Code and NFPA 5000, governs the materials, design, and erection of composite concrete slabs utilizing cold-formed steel deck.
The deck profiles vary in depth and geometry. Shallow profiles like ComFlor 46 (46 mm deep) are nestable, allowing more square meters per bundle and reducing transport costs. Deeper profiles like ComFlor 210 and 225, reaching 100 mm or more, are designed for long-span applications. The Cofraplus 80 system offers weight reduction of up to 30% compared to precast slabs and reduces CO₂ emissions by 15%. This is not merely a steel sheet—it is a precision-engineered component.
When a floor bearing decking sheet arrives on a construction site, it serves two entirely distinct purposes across its lifecycle.
During Construction: Permanent Formwork

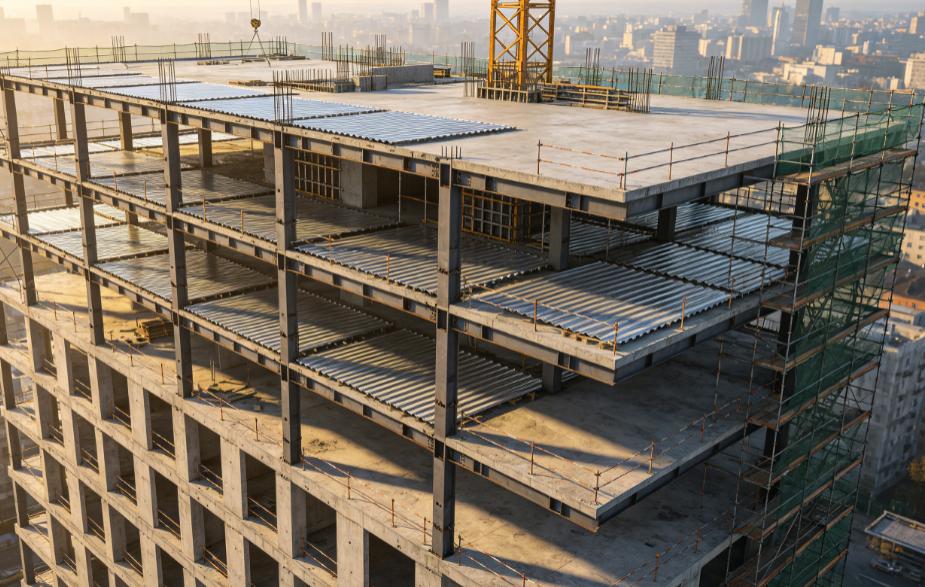

Traditional concrete floor construction requires temporary formwork— wooden or metal shuttering that must be erected, supported by propping, and later removed. This process is labor-intensive, time-consuming, and costly. Floor bearing decking eliminates this entirely. The steel deck itself acts as permanent formwork, supporting the weight of wet concrete during the pour.
In many systems, the deck can support the concrete pour without any temporary propping whatsoever. ComFlor profiles cover unpropped construction up to 4.5 meters, with propped spans exceeding 7 meters. The deep ComFlor 210 and 225 profiles achieve typical unpropped spans extending to 6 meters and propped spans to 9 meters. Cofraplus 80 spans up to 4.5 meters without props and more than 6.5 meters with props.
After Curing: Tensile Reinforcement
Once the concrete has cured, the role of the floor bearing decking fundamentally transforms. It no longer acts merely as formwork—it becomes an integral part of the structural system. The steel deck provides tensile reinforcement, while the concrete handles compression. Together, they form a composite slab far stronger and stiffer than either material could achieve alone.
The magic of floor bearing decking lies in something engineers call "composite action." But how does a smooth steel sheet bond with concrete to act as a single structural unit?
Mechanical Interlock Through Embossments
The bond is established primarily through mechanical interlock—small indentations or embossments pressed into the steel deck during manufacturing. These embossments run across the webs of the profile, creating a clamping effect between the concrete and steel deck. When concrete is poured, it flows around these embossments, creating a mechanical connection that resists horizontal shear and prevents vertical separation at the steel-concrete interface.
Shear Studs

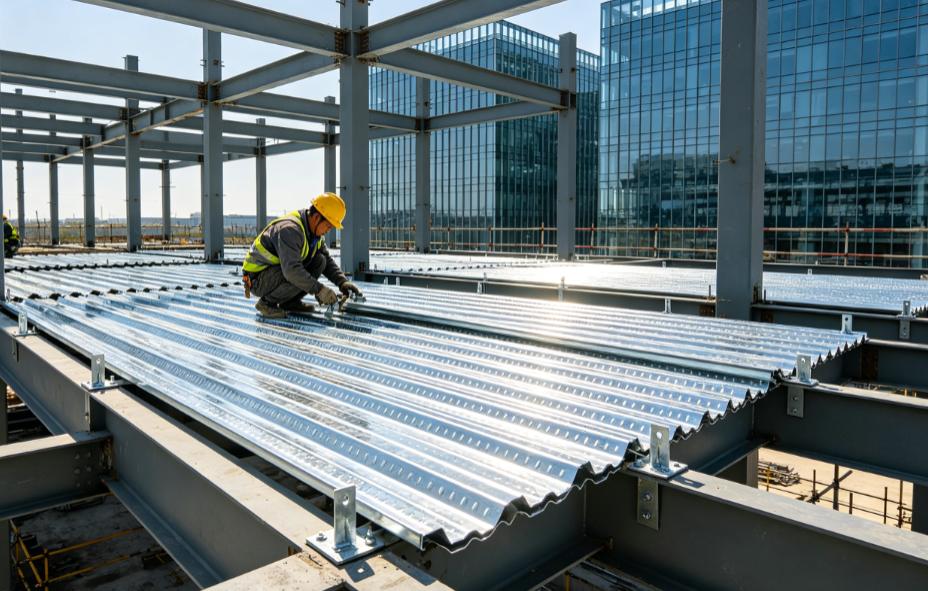

Additional shear transfer is provided by shear studs — short steel connectors welded through the deck to the supporting steel beams. These studs ensure that the steel and concrete deflect as a single unit under load. The ComFlor 51+ profile features new embossments that give even better shear key performance.
The result is a floor system where the concrete slab and steel deck work together synergistically. The steel carries tension, the concrete carries compression, and the composite slab achieves load-bearing capacity far beyond the sum of its parts.
One of the most compelling advantages of floor bearing decking is the remarkable speed of installation. Large areas can be easily craned into position, and a single two-man team can lay in excess of 400 square meters per day. With minimal mesh or fiber reinforcement and pumped concrete, the completed floor can quickly follow.
Comparative studies quantify these advantages. Research comparing Structural Steel Decked slabs with conventional reinforced cement concrete slabs found a 20.3% reduction in total construction cost and a 43.75% decrease in construction time. Another study of a 10-story multi-level car park demonstrated that steel frame with composite deck floor saves 55.3% construction time compared to precast frame with precast concrete floor.
Real-world projects validate these numbers. The IMEC car park in Leuven, Belgium, installed flooring across all eight floor levels in only three weeks. The Battersea Power Station project in London utilized over 135,000 square meters of ComFlor floor decks. These are not laboratory curiosities—they are proven, large-scale commercial applications.
The ability of floor bearing decking to enable long, column-free spans is where it truly earns its "strongman" reputation.
The deep-ribbed composite floor system can span up to 22 feet (approximately 6.7 meters) unshored. The ComFlor 210 profile has the capability to span up to 6 meters in unpropped construction. The innovative TekDek system, comprising 1.25 mm thick steel plate in a 225 mm deep profile, has theoretically achieved clear spans of over 10.5 meters.

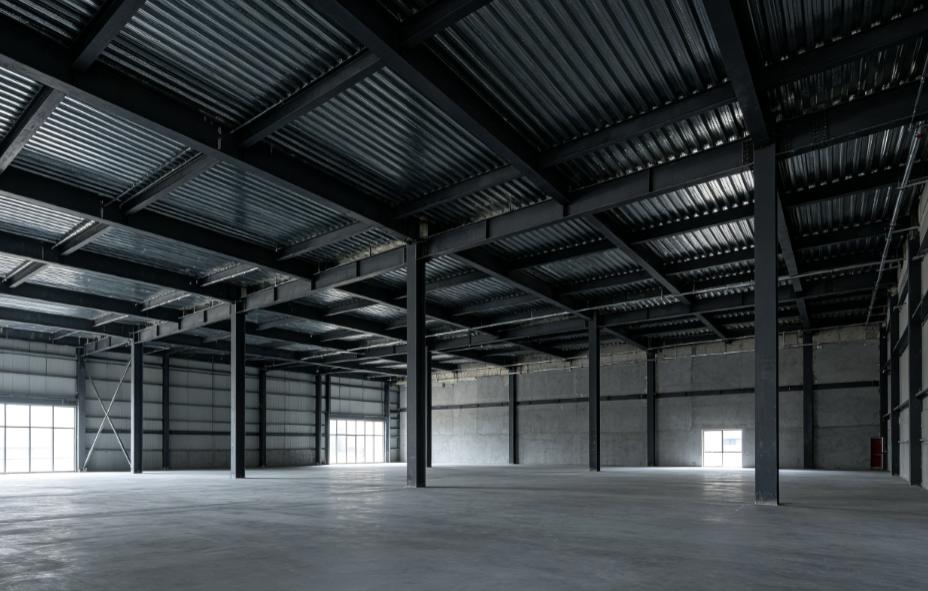

These long spans translate directly into column-free interiors—the open, flexible spaces that architects and tenants increasingly demand. A deep-ribbed composite floor system can avoid space-robbing steel beams, supporting columns, lateral bracing, and the overall weight associated with those elements. The result is maximum usable floor area and design freedom.
Fire safety is a critical concern in any building, and floor bearing decking systems deliver robust performance. The fire resistance of composite steel deck floors is well-documented through extensive testing.
NIST (National Institute of Standards and Technology) conducted a series of fire experiments on a two-story steel-framed building with composite floors. In one test, a 6.1 m by 9.1 m composite floor assembly was exposed to a standard fire. The test floor slab, constructed with lightweight concrete cast on 7.7 cm deep formed steel deck units, was designed for a 2-hour restrained fire resistance rating. The study revealed that the test floor assembly could withstand an imposed load at a large vertical deflection on the order of span/16.
ComFlor systems provide inherent fire resistance, with ComFlor 51+ offering excellent fire performance for both slab and beams. Cofraplus 220 offers fire resistance of 60 to 120 minutes through the simple integration of rebar in the rib. For design to Eurocodes, BS EN 1994-1-2 contains simplified methods for calculating the design moment resistance of composite steel deck floors in fire.
In multi-story buildings, acoustic performance is paramount. Floor bearing decking systems can achieve impressive Sound Transmission Class (STC) ratings. Conventional steel joist and metal deck assemblies can reach maximum STC values of 47. Shallow decks typically achieve 47-50 dB STC, suitable for most general applications. Some systems achieve STC ratings up to 63.
Adding a suspended ceiling can improve STC ratings by up to 11 points and IIC (Impact Insulation Class) ratings by up to 19 points. Composite floors are a very effective way of constructing separating floors with good acoustic performance.
Sustainability is no longer optional in construction—and floor bearing decking delivers compelling environmental credentials.
Lighter Weight, Less Material
Composite floor decks are inherently lighter than precast concrete floors. Cofraplus 80 offers weight reduction of up to 30% compared to precast slabs. A lighter floor imposes less load overall, meaning a lighter building structure and lighter foundations can be designed. This material efficiency translates directly to reduced embodied carbon.
Recycled Content and Recyclability
Steel is one of the most recycled materials on earth. The end-of-life recycling rate for steel decking is 89%. Structural steel produced in the U.S. contains approximately 92% recycled content on average, and 100% of a structural steel frame can be recycled into new steel products. The reduced weight also facilitates dismantling and recycling at the end of a building's service life.
Reduced CO₂ Emissions
Cofraplus 80 reduces CO₂ emissions by 15% compared to precast alternatives. Steel profile composite floors are lighter than alternatives, which promotes overall material savings and contributes to more sustainable construction.
The capabilities of floor bearing decking are demonstrated by numerous landmark projects:
100 Bishopsgate, London: Required a composite flooring solution that enabled long-span beams and provided highly efficient column-free accommodation.
Nova Victoria, London: Required long spans of up to 16 meters, achieved using ComFlor 51+.
IMEC Car Park, Leuven: Installed across all eight floor levels in only three weeks.
Battersea Power Station, London: Over 135,000 square meters of ComFlor floor decks installed.
These projects demonstrate that floor bearing decking is not a theoretical concept but a proven, practical solution for real-world construction challenges.
Successful implementation of floor bearing decking requires careful engineering consideration at multiple stages:
Construction Stage
Engineers must verify the adequacy of the floor framing when steel beams support the decking but are unrestrained against buckling; during the concrete pour when the deck supports wet concrete without composite action; and during occupancy when full composite action develops.
Service Stage
The AISC Specification for Structural Steel Buildings requires that "the effect of vibration on the comfort of the occupants and the function of the structure shall be considered". AISC Design Guide No. 11 provides comprehensive guidance for predicting floor vibration due to human activity.
Fire Design
Design principles are in accordance with BS EN 1993-1-3, 1994-1-1, and EN 1994-1-2: Eurocode 4. Software tools like ComFlor 9.0.34 analyze composite floor decks in construction stage, service stage, and for fire resistance.
From a humble steel sheet to an integral part of a load-bearing floor system, floor bearing decking undergoes a remarkable transformation. It starts as a cold-formed steel profile, serves as permanent formwork during construction, and ultimately becomes the tensile reinforcement in a composite slab that supports the weight of buildings, people, and activities.
It is the invisible strongman—unseen beneath finished floors, yet essential to the performance, safety, and efficiency of modern buildings. It enables long, column-free spans that create flexible, adaptable interiors. It accelerates construction schedules, reduces costs, and delivers robust fire and acoustic performance. It is lighter, more sustainable, and more recyclable than traditional alternatives.
The data is clear: floor bearing decking, working in synergy with steel structure framing, represents one of the most efficient, reliable, and versatile floor systems available to the construction industry. The next time you walk across a solid, seamless floor in a modern building, take a moment to appreciate the invisible strongman beneath your feet—the floor bearing decking that made it all possible.
