In the competitive landscape of modern construction, time is money—and nowhere is this truer than in the choice of floor systems. For decades, cast-in-place reinforced concrete slabs were the default solution for multi-story buildings. But as project timelines tighten and budgets face relentless pressure, a superior alternative has emerged: the steel floor deck. This composite system—combining profiled galvanized steel sheets with a concrete topping—is transforming how buildings are designed and built, delivering measurable reductions in construction cycles and significant overall cost savings.
Open Type Floor Decking HY51-250-750 - HongYe
A steel floor deck—also referred to as profiled steel sheeting or composite steel deck—consists of cold-formed galvanized steel sheets with a corrugated profile. These sheets serve as permanent formwork, eliminating the need for temporary timber or steel molds. Once concrete is poured and cured, the steel and concrete work synergistically: the concrete resists compression while the steel deck handles tensile forces. This composite action creates a floor system that is not only stronger but also lighter and faster to install than traditional alternatives.
The steel structure framing that supports these decks further amplifies these advantages. When steel floor deck is paired with steel beams and columns, the entire system benefits from prefabrication, precise engineering, and rapid on-site assembly.
Perhaps the most significant time-saving feature of the steel floor deck is its role as permanent formwork. Traditional concrete slabs require extensive temporary formwork—wood or steel molds that must be built, supported, and later stripped away. This process is labor-intensive, weather-dependent, and adds weeks to the construction schedule.

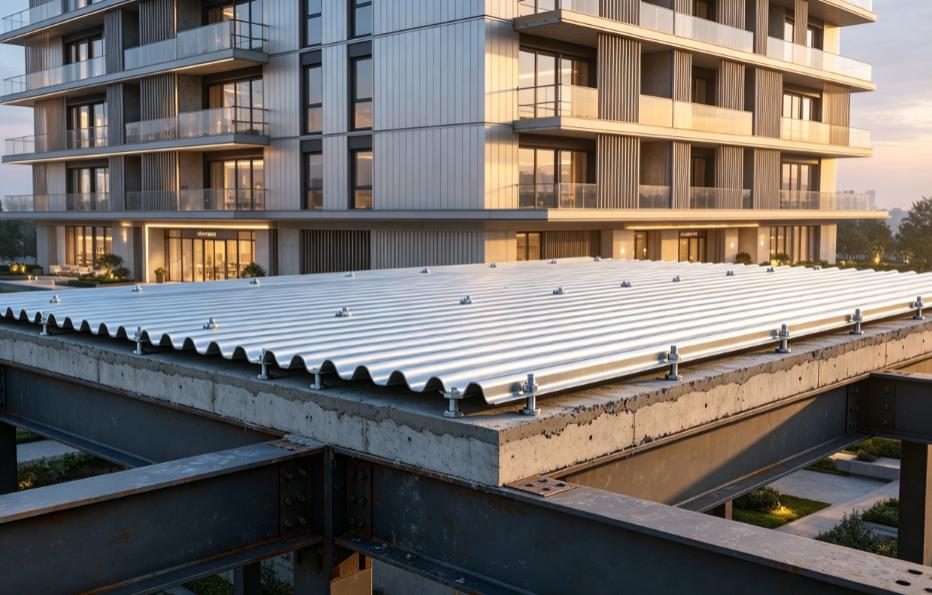

With a steel floor deck, the steel sheets are laid directly onto the steel structure framing, creating an immediate working platform. Concrete can be pumped onto the deck almost immediately after placement. There is no waiting for formwork to be erected or removed, and no delay for concrete to reach full strength before subsequent trades can begin work.
The numbers speak for themselves. A comparative study of reinforced cement concrete (RCC) slabs versus structural steel decked (SSD) slabs found that SSD systems delivered a 43.75% decrease in construction time. Similarly, a project using the UltraBond composite floor system—a type of steel floor deck—saved the general contractor about three months of construction time on an 11-story apartment building. The system used one-third of the rebar and 50 percent less concrete than a traditional nine-inch slab, dramatically accelerating the construction process.
Modern steel floor deck systems increasingly leverage prefabrication. The American Institute of Steel Construction’s (AISC) Need for Speed initiative, launched in 2019, aimed to design and construct steel buildings 50% faster. One outcome is FastFloor, a modular steel floor system fabricated mostly offsite and assembled quickly in the field. This approach allows buildings to be built 30% to 50% faster than traditional floor systems.
The concept is simple: by manufacturing components in controlled factory environments, quality improves, waste decreases, and on-site labor requirements plummet. One manufacturer reports that a single two-person team can lay over 400 square meters of composite floor deck per day. In another project, All Steel was able to construct 20,000 square feet of steel floor decking in just 10 days, compared to the standard guideline of 6,000 square feet per week for conventional systems.
The speed of steel floor deck installation enables a cascading acceleration across the entire project. Because the deck creates a stable working platform immediately after placement, mechanical, electrical, and plumbing (MEP) trades can begin their work on lower floors while upper floors are still being decked. This overlapping of trades—impossible with traditional concrete slabs that require extensive curing before any load can be applied—compresses the overall project timeline dramatically.
Research has shown that a steel floor deck assembly can be completed and serviceable, allowing design loads within 2 to 10 days of placement, compared to over 28 days for standard concrete deck systems. A crew of six people may be able to place up to 30,000 square feet of flooring in a structure within a single day.
Traditional concrete slabs often require extensive shoring—temporary supports that hold the formwork in place until the concrete cures. This adds both time and material costs. Many steel floor deck systems, however, are designed for unpropped construction. ComFlor profiles, for instance, cover unpropped construction up to 4.5 meters, with propped spans extending beyond 7 meters. By reducing or eliminating shoring, contractors save days or even weeks of installation and removal time.
The most direct cost saving from using a steel floor deck comes from the elimination of temporary formwork. A traditional concrete slab requires timber or steel forms that must be purchased, erected, maintained, and eventually removed or discarded. These costs can be substantial—saving 30-40 CNY per square meter (approximately $4-6 USD) in formwork expenses alone.
Steel floor deck systems use significantly less material than conventional slabs. The composite action between steel and concrete means that less concrete and less reinforcing steel are required to achieve the same structural performance. Studies indicate concrete usage can be reduced by 20-30%, and slab self-weight drops by up to 40%. This reduction in material has a cascading effect: lighter floors require smaller beams and columns, which in turn reduce the demand on foundations.
One steel floor deck product, TR60+, can cover the same floor area with up to one-third fewer sheets than standard profiles, significantly reducing labor and improving installation efficiency. The result is a lower installed cost per square meter on comparable spans.
Labor is typically the largest variable cost in construction. Because steel floor deck systems are lightweight and easy to handle, they require fewer workers and less time to install. The elimination of rebar placement, formwork erection, and extended curing periods further reduces labor requirements. One analysis found that composite decking reduces scaffolding, rebar, and labor costs by 60-80%.
Innovations in connection systems further drive down labor costs. The Delta Grip side-lap attachment tool, for example, is designed specifically to reduce installation costs. Steel deck profiles supplied pre-primed save additional installation labor costs.
Open Type Floor Decking HY51-250-750 - HongYe
The financial advantages of steel floor deck systems are evident in direct cost comparisons. A study of composite steel deck versus conventional concrete slab found that composite decking costs approximately 105-120 CNY per square meter (roughly $15-17 USD), compared to 130-150 CNY per square meter (approximately $18-21 USD) for a traditional slab—a saving of 20-30 CNY per square meter. On a 10,000 square meter project, this amounts to 200,000-300,000 CNY in direct savings.
A comprehensive comparative analysis of RCC slabs and SSD slabs found a 20.3% reduction in total construction cost for the steel deck system. Other studies have reported cost savings ranging from 7% to 12% when using deck floor panels.
The lighter weight of steel floor deck systems translates into significant savings in the steel structure and foundations. By reducing the dead load of each floor, the entire structural frame can be downsized. ArcelorMittal’s Cofraplus composite floor deck offers weight reduction of up to 30% compared to precast slabs. This reduction in weight lowers the demand on foundations, allowing for smaller footings and less extensive site preparation.
Long-span steel floor deck profiles further enhance structural efficiency. By spanning greater distances between supports, these decks reduce the number of secondary steel framing members required. Fewer beams mean less steel, fewer connections, less fireproofing, and faster erection—all of which contribute to lower overall costs.
Perhaps the most overlooked financial benefit of steel floor deck systems is the cost savings driven by shorter schedules. Faster construction means:
Reduced equipment rental costs for cranes, hoists, and other machinery
Lower project management and supervision fees
Earlier building commissioning and revenue generation
Reduced financing costs due to shorter borrowing periods
Lower general conditions and site overhead expenses
A project completed three months earlier, as with the UltraBond example, represents substantial savings in carrying costs, overhead, and interest.
Beyond first costs, steel floor deck systems offer lifecycle advantages. The ductility of steel enhances seismic performance, improving a building’s resistance rating by one to two levels compared to the relatively brittle behavior of pure concrete. Steel is also 100% recyclable, and the reduced material usage lowers embodied carbon. Cofraplus, for example, reduces CO₂ emissions by 15% compared to precast alternatives.
The UltraBond composite floor system was used in an 11-story, 166-unit apartment building. The system used 13,066 square meters of steel floor deck, weighing about 226,796 kilograms. The results were remarkable:
50% less concrete than a traditional nine-inch slab
One-third of the rebar required
Reduced shoring to just one row
Three months saved in construction time
Significant material cost savings
Analysis of a steel deck floor slab project for a BMW showroom and workshop found that the steel floor deck work required just 7 days to complete, compared to the 27 days estimated for conventional deck work. This dramatic reduction in installation time translated directly into lower labor and overhead costs.
ComFlor composite floor deck solutions were installed across all eight floor levels of an IMEC car park in only three weeks. The lighter weight of the system allowed for reduced floor heights and faster installation, guaranteeing the project’s tight timescales.
It is true that steel can have a higher upfront material cost than concrete. However, when considering the entire construction process—including formwork elimination, reduced labor, faster schedules, and lower foundation costs—the steel floor deck system is often more economical overall. The time saved alone can offset any material premium.
Steel can transmit sound more than concrete, potentially necessitating additional acoustic treatment. However, this can be addressed through high-density concrete design and proper detailing, and the benefits of speed and cost typically outweigh this consideration.
Steel floor deck systems must be properly designed to manage deflection. However, with appropriate span lengths, temporary propping where needed, and proper engineering, this is a manageable concern.
The steel floor deck represents a fundamental advancement in construction methodology. By eliminating formwork, reducing material quantities, enabling prefabrication, and allowing simultaneous trade access, these systems dramatically shorten construction cycles—often by 30% to 50% or more. The financial benefits are equally compelling: lower material costs, reduced labor requirements, smaller structural frames, and schedule-driven savings that compound across the entire project.
As the construction industry continues to seek greater efficiency and sustainability, the steel floor deck—integrated within a broader steel structure—stands out as a proven solution. The data is clear: whether measured in days saved or dollars earned, steel floor deck systems deliver superior value. For developers, contractors, and owners alike, the choice is increasingly obvious. The buildings of tomorrow will be built faster, cost less, and perform better—all thanks to the humble but transformative steel floor deck.
