The HY-35-125-750 steel structure is a versatile, high-performance building component designed to meet the diverse needs of modern construction. As a precision-engineered floor bearing plate, it combines lightweight design with exceptional structural strength, making it a go-to choice for projects ranging from industrial facilities to public infrastructure. This product is manufactured with advanced technology and strict quality control, ensuring consistent performance, durability, and compatibility with various construction scenarios.

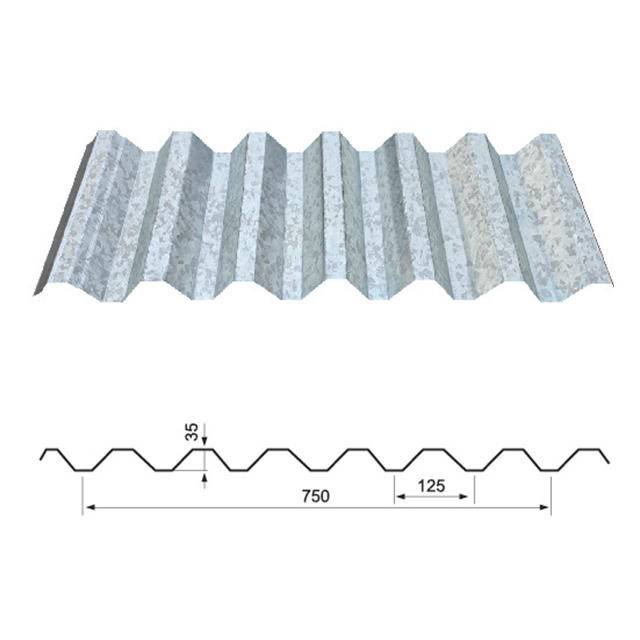

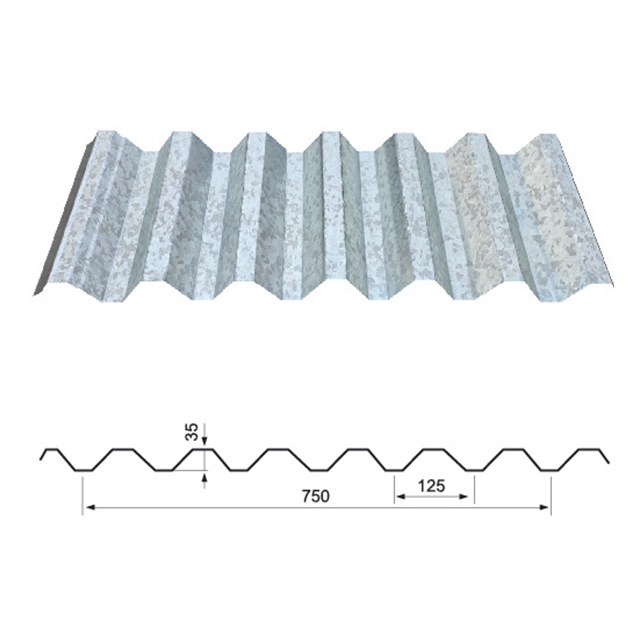

What defines the HY-35-125-750 is its unique 35-125-750 profile, which is optimized to enhance mechanical efficiency. Its moment of inertia and section modulus are carefully calibrated to provide reliable load-bearing capacity while keeping the product lightweight, reducing the overall burden on building frames. Whether used in low-rise warehouses or high-span industrial buildings, the HY-35-125-750 steel structure delivers stable, long-lasting performance, adhering to the highest standards of quality and safety.
The HY-35-125-750 is widely used in warehouses, distribution centers, and storage yards. Its load-bearing capacity (supported by a maximum section modulus of 37.32 cm³/m at 3.0mm thickness) enables it to handle heavy storage racks, pallets, and bulk materials. Its lightweight design also simplifies installation and reduces construction costs, making it a cost-effective solution for large-scale storage facilities.
Power plants, including thermal power stations, nuclear power plants, and renewable energy facilities, rely on the HY-35-125-750 for its structural reliability and resistance to harsh operating conditions. It is often used in boiler rooms, turbine halls, and auxiliary buildings, where stability and durability are critical for safe operation. Its compatibility with high-temperature and high-humidity environments further expands its application in the energy sector.
Schools, kindergartens, and community centers benefit from the HY-35-125-750’s safety and versatility. It serves as a reliable floor or roof component, providing stable support for classrooms, auditoriums, and outdoor facilities. Its non-toxic, environmentally friendly material selection also meets the strict safety requirements of public buildings, ensuring a healthy environment for users.
The HY-35-125-750 steel structure’s technical parameters are designed to balance performance and practicality, with precise values derived from rigorous testing:
Thickness (mm) | Moment of Inertia (cm⁴/m) | Section of Modulus (cm³/m) |
1.0 | 23.54 | 12.44 |
1.5 | 35.31 | 18.66 |
2.0 | 47.08 | 24.88 |
3.0 | 70.62 | 37.32 |
Standard Expanded Width: With an expanded width of 1000mm, it integrates seamlessly with standard construction materials and processes, ensuring efficient installation and compatibility with other structural components.
Wide Thickness Range: Offering thickness options from 1.0mm to 3.0mm, it caters to a broad spectrum of load requirements, from light-duty storage spaces to heavy-industry applications.
High Strength-to-Weight Ratio: Its optimized profile and high-quality steel material result in an excellent strength-to-weight ratio, providing strong load-bearing capacity without excessive weight.
The maximum safe span depends on the thickness and load conditions. For the 3.0mm variant (section modulus 37.32 cm³/m), the maximum span for light loads (e.g., 5kN/m²) is approximately 3-4 meters. For heavier loads or longer spans, consult the manufacturer’s structural engineers for customized solutions.
Yes. The product’s surface can be painted, galvanized, or coated with other decorative or protective finishes. Galvanization enhances corrosion resistance, while custom paint colors can match the architectural design of your project. The manufacturer offers pre-coating services upon request.
The product complies with international quality standards for steel structural components, including ISO 9001 quality management system certification. It undergoes strict testing for load-bearing capacity, corrosion resistance, and dimensional accuracy before shipment, ensuring reliable performance.
