Walk onto any construction site, and you will see corrugated steel sheets everywhere—some lying flat as roofing panels, others serving as the foundation for concrete floors. To the untrained eye, they look nearly identical: ribbed profiles, galvanized surfaces, and similar dimensions. Yet the difference between a floor bearing deck and an ordinary corrugated steel sheet is not merely cosmetic—it is the difference between a structure that stands for decades and one that fails under load.
This article unpacks that difference. We will examine how these two products are manufactured, how they perform structurally, and why choosing the wrong one can compromise an entire steel structure. By the end, you will understand why floor bearing deck systems have become the backbone of modern composite construction—and why ordinary corrugated sheets belong on roofs and walls, not on floors that bear weight.
An ordinary corrugated steel sheet is a cold-formed product characterized by a repeating wave or trapezoidal pattern. Its primary purposes are roofing, wall cladding, and non-structural partitioning. The corrugations provide stiffness—much like the ridges on a piece of cardboard—allowing the sheet to span across purlins or girts without excessive deflection under wind loads or its own weight.
Typical properties include:
Thickness: 0.27 mm to 0.8 mm, generally lighter than structural deck products
Weight: Approximately 10–14 kg/m², roughly 1/30 of a brick wall
Coating: Zinc or color-coated for corrosion resistance, with coating retention periods of 10–15 years
Applications: Roofing, wall panels, temporary enclosures, and architectural cladding
These sheets are designed to resist out-of-plane loads—wind pressure, snow, and rain—transferred to the primary framing through fasteners. They are not designed to support heavy in-plane or concentrated floor loads. Their structural role is secondary; they are cladding, not structure.
A floor bearing deck—often referred to as a composite steel floor deck, metal floor deck, or profiled steel sheeting—is a fundamentally different product. While it shares the corrugated appearance of ordinary sheets, its design, material grade, and performance characteristics are engineered for one purpose: to act as both permanent formwork and tensile reinforcement for concrete slabs in steel structure buildings.
Key distinguishing features:
Thickness: Typically 0.8 mm to 1.5 mm, substantially heavier than roofing sheets
Profile geometry: Deeper ribs (51 mm to 130 mm) with specific shapes—trapezoidal, dovetail, or closed rib—optimized for composite action with concrete
Embossments: Surface patterns or indentations that create mechanical interlock with concrete, enabling composite action
Steel grade: Higher-strength steel, often G550 or equivalent, with minimum yield strengths around 550 MPa
Composite function: The deck serves as the bottom tensile reinforcement of the slab, replacing traditional rebar in the tension zone
The floor bearing deck is not merely a surface; it is an integral structural component of the flooring system.

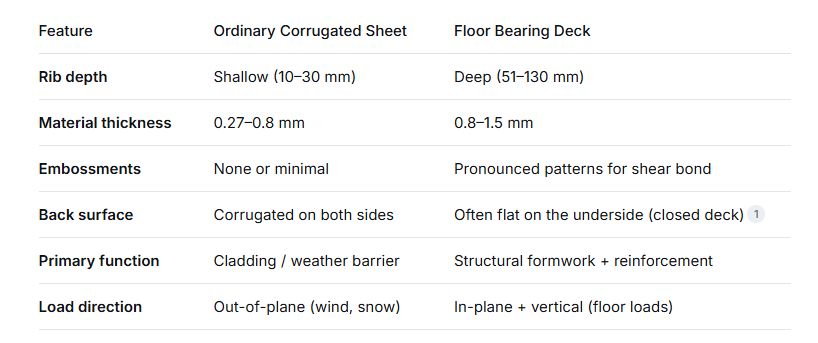

If you were to place an ordinary corrugated sheet next to a floor bearing deck, the differences would be immediately apparent:
The closed floor bearing deck, for instance, features a flat underside after forming, which facilitates secondary construction and provides a clean ceiling appearance. Open floor decks have a corrugated back surface, which complicates construction but offers different composite properties. Ordinary corrugated sheets lack this design sophistication entirely—they are simple, single-purpose products.
The load-bearing capacity of a floor bearing deck is quantified in kilonewtons per square meter (kN/m²) and depends on deck thickness, profile geometry, and span length. For a 50 mm deep deck with 0.8 mm thickness, allowable loads range from approximately 19.33 kN/m² at a 1.0 m span down to 1.73 kN/m² at a 3.0 m span. Thicker decks and deeper profiles substantially increase capacity.
By contrast, ordinary corrugated sheets are not rated for floor loads. Their load tables address wind uplift and snow loads—orders of magnitude lower than the live and dead loads imposed by occupancy, equipment, and concrete.
The defining advantage of a floor bearing deck is composite action. When concrete is poured over the deck, the embossments on the steel surface create a mechanical interlock that prevents slip between the steel and concrete. The result is a unified slab where:
The steel deck resists tensile stresses at the bottom
The concrete resists compressive stresses at the top
The two materials work together, each performing its optimal role
This composite behavior has been validated through extensive testing. A 2024 study on the BlueDeck profiled steel sheeting system found that specimens achieved full composite action, with composite specimens demonstrating significantly higher flexural stiffness and load-bearing capacity as concrete depth increased. Specifically, specimens with 200 mm slab depths exhibited a 60% improvement in ultimate capacity compared to those with 150 mm slabs, while those with 175 mm depths saw a 27% increase. The system also showed an 81% improvement in de-bonding resistance in thicker slabs.
Ordinary corrugated sheets provide no such composite action. They are simply formwork—and inadequate formwork at that, given their shallow ribs and lack of embossments.
Fire performance is another area where the floor bearing deck excels. Composite slabs with steel decking have been tested under ISO 834 fire curves for up to 90 minutes, with researchers documenting temperature evolution, failure patterns, and residual load capacity. Full-scale fire resistance tests on composite slabs with steel fiber-reinforced concrete (SFRC) demonstrated compliance with performance criteria for load-bearing capacity, integrity, and thermal insulation—with maximum allowable vertical displacement maintained for up to 150 minutes. Throughout this period, no structural collapse or loss of integrity was observed.
The Steel Deck Institute (SDI) provides comprehensive design standards—including ANSI/SDI C-2017 for composite steel floor deck-slabs—that govern fire resistance requirements. Ordinary corrugated sheets have no such fire-rated structural capacity; they are not designed to contribute to the fire resistance of a floor system.
One of the most compelling arguments for specifying a floor bearing deck in any steel structure is construction speed. Traditional reinforced concrete slabs require:
Erecting formwork (wood or metal)
Placing reinforcing bars
Pouring concrete
Curing
Removing formwork
A floor bearing deck eliminates steps 1 and 5 entirely. The deck serves as permanent formwork, remaining in place after the concrete cures. This allows contractors to pour multiple floors simultaneously without waiting for formwork to be stripped and reused.
The time savings are substantial. A comparative study of conventional RCC slabs versus composite steel deck slabs found that composite systems offer a 43.75% reduction in construction time and a 20.3% reduction in total construction cost. The steel deck also provides a safe working platform during construction, enabling rapid progress and improved site safety.
Furthermore, advanced floor bearing deck systems offer impressive spanning capabilities—up to 14.3 meters in some cases—which minimizes joints and installation time while improving structural continuity. Temporary propping can often be eliminated entirely, further accelerating the construction schedule.
Ordinary corrugated sheets offer none of these advantages. They require additional structural support, cannot serve as permanent formwork, and provide no composite reinforcement.
The distinction between a floor bearing deck and an ordinary corrugated sheet is codified in industry standards worldwide.
The Steel Deck Institute (SDI) , founded in 1939, provides authoritative standards for the engineering, design, manufacture, and field usage of steel floor and roof decks. The ANSI/SDI SD-2022 "Standard for Steel Deck" governs the materials, design, and erection of composite concrete slabs utilizing cold-formed steel deck. The SDI Floor Deck Design Manual, Second Edition (FDDM2), integrates updated 2017 ANSI/SDI Design Standards and aligns with the 2018 and 2021 IBC codes, incorporating load tables and design examples for concentrated loads and moving loads.
In Australia and New Zealand, AS/NZS 2327 provides the framework for composite slab design—with experimental studies confirming that floor bearing deck systems consistently exceed the bending moment and deflection limits prescribed by the standard.
Ordinary corrugated sheets are governed by entirely different standards—those for roofing and cladding, not structural flooring. They are not recognized in any building code as load-bearing floor elements.
A floor bearing deck is the correct choice for:

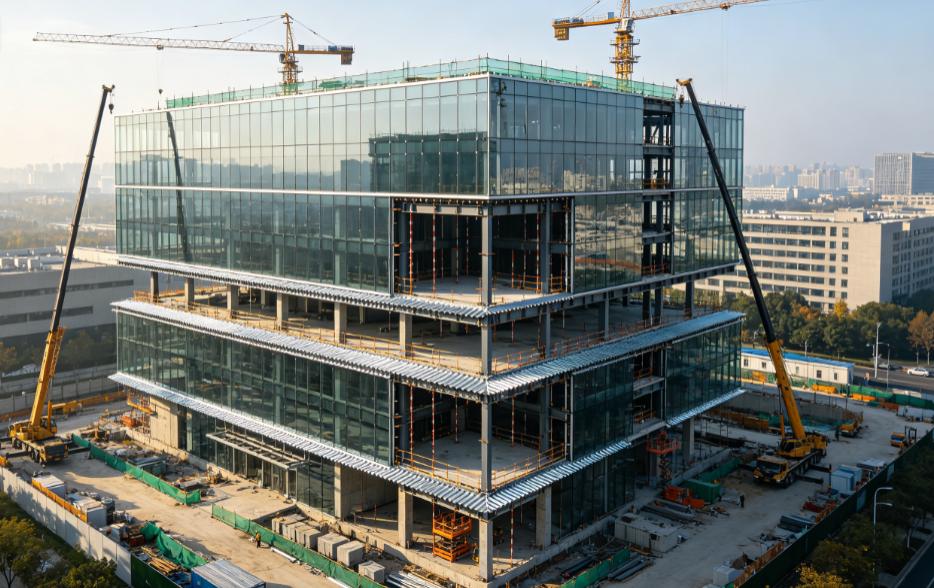

Multi-storey steel structure buildings where floor loads are significant
Composite floor systems in offices, showrooms, factories, and warehouses
Mezzanine floors in pre-engineered buildings
Parking structures and bridges requiring high load capacity
Any application where the floor slab must act compositely with the supporting steel framing
The composite system offers lighter weight, increased strength-to-weight ratios, reduced floor-to-floor heights, easy MEP accommodation, and increased bay lengths. As one industry expert succinctly put it: "It's twice the performance with half the weight".
Ordinary corrugated sheets remain the right choice for:
Roofing and wall cladding in industrial and commercial buildings
Temporary enclosures and non-structural partitions
Architectural features where aesthetics and weather resistance are primary
Low-load applications where structural performance is not required
Some builders, tempted by lower material costs, have attempted to substitute ordinary corrugated sheets for floor bearing deck systems. This is a false economy.
While the upfront cost per square meter of an ordinary corrugated sheet may be lower, the total installed cost of a floor bearing deck system is often lower when factoring in:
Elimination of formwork (labor and material savings)
Reduced reinforcement (the deck replaces bottom rebar)
Faster construction (reduced financing costs and earlier occupancy)
Thinner slabs (reduced concrete volume and building height)
Longer spans (fewer supporting beams)
A floor bearing deck system from a reputable manufacturer—using ASTM A653 SS Grade 550 steel with Z180 galvanized coating—delivers structural performance that ordinary sheets cannot match. The cost per square foot of a composite steel deck system, when evaluated on a lifecycle basis, is highly competitive with—and often superior to—alternative flooring systems.
The difference between a floor bearing deck and an ordinary corrugated steel sheet is not a matter of semantics—it is a matter of structural integrity, construction efficiency, and building safety.
One picture may indeed say it all: the deep ribs, the embossed surface, the flat underside, and the load tables that quantify performance in kilonewtons. But the real story is what that picture represents—decades of engineering research, thousands of laboratory tests, and millions of square meters of successfully constructed steel structure floors.
When you specify a floor bearing deck, you are not just buying a steel sheet. You are buying composite action, fire resistance, construction speed, and peace of mind. When you specify an ordinary corrugated sheet for a floor application, you are gambling with the structural performance of the entire building.
The choice is clear. The next time you see corrugated steel on a construction site, ask yourself: is this a floor bearing deck—or just a sheet? The answer will tell you everything you need to know about the building's quality, safety, and longevity.
