A color steel sheet is rarely just steel. It is a composite system in which a thin organic coating is expected to protect the metal beneath from sunlight, rain, salt, pollution, and temperature swings for years. The same applies to almost every exposed steel structure, from a warehouse roof to an airport facade. The substrate may be identical, but the coating chemistry decides whether the color steel sheet still looks acceptable after eight years or twenty-five. Three chemistries dominate the market: polyester coating, SMP coating, and PVDF coating. Each has a distinct balance of cost, weatherability, corrosion resistance, and color retention. This article explains the pros and cons of each system in practical terms, using recognized industry standards rather than marketing claims.
YX 71-380-760 Prepainted Steel Coils
An organic coating on a color steel sheet performs several jobs at once. It provides corrosion resistance by blocking moisture and oxygen from reaching the zinc or zinc-aluminium coating underneath. It provides UV resistance by absorbing or reflecting solar radiation that would otherwise degrade the paint film. It provides color retention so the steel structure keeps its intended appearance. It also provides film integrity — the ability to resist cracking, peeling, and chalking during bending, roll-forming, and thermal expansion. No single resin excels at all of these properties. That is why polyester, SMP, and PVDF occupy different positions in the specification market.
Polyester coating is the most widely used organic coating for color steel sheet because it offers the best balance of cost and basic performance. A polyester coating adheres well to metal, accepts a wide range of colors and gloss levels, and remains flexible enough for bending and roll-forming. These advantages make it the default choice for interior panels, appliances, temporary buildings, and outdoor steel structures in mild climates where periodic repainting is acceptable.
The weakness of a standard polyester coating is ultraviolet stability. Polyester resin absorbs UV radiation and gradually breaks down at the surface. The visible results are chalking and color fading. In a general outdoor environment, the expected anti-corrosion lifespan of a standard polyester coating on a color steel sheet is often placed at around seven to eight years. In industrial or heavily polluted areas, that figure can be shorter. This does not mean the steel structure fails structurally; it means the coating loses appearance and eventually loses its protective function.
The industry has responded with high-durability polyester, often called HDP. By modifying the resin structure and adding UV absorbers, manufacturers have improved the weatherability of polyester coating considerably. High-durability polyester can approach the performance of more expensive systems in moderate environments, although it still does not match PVDF coating in harsh UV exposure. For a color steel sheet used indoors or in a short-life steel structure, polyester coating remains a rational and economical choice.
SMP coating — silicone-modified polyester — was developed to fill the gap between standard polyester coating and PVDF coating. The resin is still based on polyester, but it is chemically modified with silicone intermediates. These silicone components improve resistance to UV degradation and help the coating retain gloss. In practice, an SMP coating on a color steel sheet offers better weatherability than ordinary polyester, with a typical anti-corrosion lifespan of around ten to twelve years in general environments.
Under the AAMA 2604 specification, an SMP coating must demonstrate weathering performance equivalent to five years of South Florida exposure. That is a meaningful improvement over AAMA 2603, which is the basic specification often associated with standard polyester coating. SMP coating also offers practical advantages that PVDF coating cannot match. It is generally tougher once cured, with excellent scratch resistance. It can be formulated in more gloss levels and textured finishes. For industrial roofs, warehouses, and agricultural steel structures, SMP coating is often the most balanced choice.
The limitations of SMP coating are equally important. Because silicone resin has relatively poor adhesion and formability, an SMP coating on a color steel sheet is not ideal for applications requiring severe bending or multiple forming operations. More significantly, field experience has shown that SMP coating can fade and chalk noticeably within the first decade. In one documented case, identical green panels — some SMP coating, some PVDF coating — were installed on the same project. After eight years, the SMP coating panels showed severe fading, while the PVDF coating panels retained their original appearance. Warranty terms reflect this gap. Many PVDF coating warranties allow a maximum color change of 5 Delta E units, while SMP coating warranties often allow 7 to 9 Delta E units. Chalk resistance limits are also stricter for PVDF coating than for SMP coating. For a high-visibility steel structure, those differences matter.
PVDF coating — polyvinylidene fluoride — is the benchmark for architectural color steel sheet. The best-known brands are Kynar 500 and Hylar 5000. PVDF coating was developed from fluoropolymer chemistry, and its performance comes from the carbon-fluorine bond, one of the strongest chemical bonds in polymer science. The molecular structure of PVDF coating is highly stable, which makes it resistant to UV radiation, chemical attack, and long-term chalking. Architectural-grade PVDF coating typically contains at least 70% PVDF resin, with the remainder usually acrylic resin to aid adhesion and film formation.
The result is a color steel sheet coating that can last for decades. In a general environment, PVDF coating on a color steel sheet is commonly expected to provide twenty to twenty-five years or more of anti-corrosion performance. Some manufacturers offer warranties extending significantly longer for film integrity and color retention. Under AAMA 2605, the most demanding specification for organic coatings on architectural metal, PVDF coating must withstand ten years of South Florida exposure while maintaining color change within 5 Delta E units, chalk resistance of at least 8, and gloss retention of at least 50%. South Florida is widely used as the benchmark because its combination of intense sunlight, heat, and humidity is among the harshest in the United States.

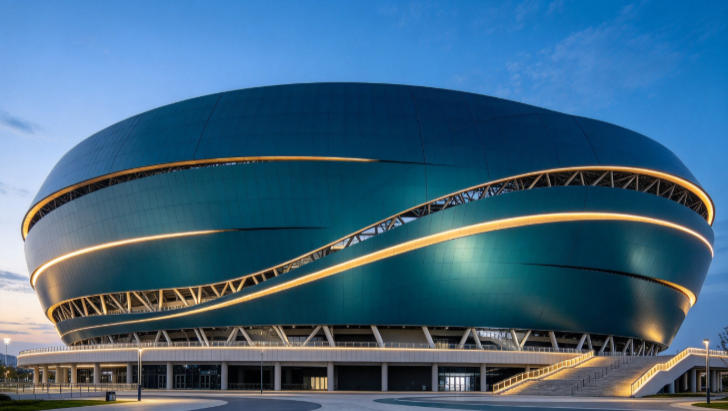

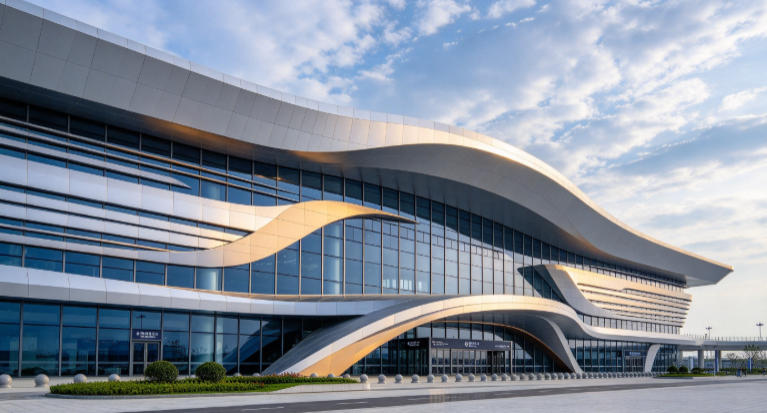

PVDF coating also performs well in coastal and industrial environments. Its chemical resistance makes it suitable for steel structures near the ocean, in chemical plants, and in high-pollution cities. It is the default specification for architectural curtain walls, airports, stadiums, and high-end commercial facades. The disadvantage is cost. PVDF coating carries a significant premium over polyester coating and SMP coating. On a large steel structure, that premium is a real budget item. However, when the expected service life of the color steel sheet is measured in decades rather than years, the higher upfront cost is often offset by lower maintenance and avoided repainting.
YX 71-380-760 Prepainted Steel Coils
The differences between polyester coating, SMP coating, and PVDF coating are best understood as a trade-off between initial cost and life-cycle performance. A standard polyester coating on a color steel sheet offers the lowest cost and the best formability, but its UV resistance and color retention are limited. An SMP coating improves weatherability and scratch resistance at a moderate cost, but it can still fade and chalk within a decade. A PVDF coating delivers the best UV resistance, chemical resistance, and color retention, but it costs more and is less forgiving in complex forming operations.
Coating thickness is another common source of confusion. At specification grade, all three systems are often applied at similar film builds, typically around 20 to 35 microns on the top side. A thicker polyester coating does not automatically become a PVDF coating. Performance comes from resin chemistry, not from paint thickness alone. A color steel sheet with a 25-micron PVDF coating will generally outperform a color steel sheet with a 30-micron polyester coating in long-term outdoor exposure. This is why specifiers should focus on resin type and standard compliance rather than thickness alone.
The right choice depends on three questions. First, what environment will the steel structure face? A mild inland climate is very different from a coastal zone or an industrial area. Second, how long must the color steel sheet remain visually acceptable? A temporary warehouse and a landmark building have different expectations. Third, what is the budget for the initial coating versus the cost of future maintenance?

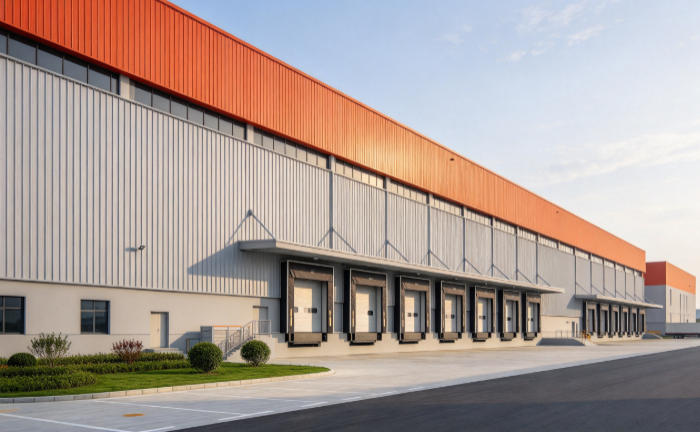

For interior applications and short-life steel structures, polyester coating is usually sufficient. For industrial roofs, warehouses, and agricultural buildings in moderate climates, SMP coating offers a practical upgrade. For architectural facades, coastal installations, and any color steel sheet expected to remain attractive for decades, PVDF coating is the only system that consistently meets the requirement. A common specification mistake is to use polyester coating on a high-visibility steel structure and then face premature fading. Another mistake is to pay for PVDF coating on an interior panel where its UV resistance is never tested.
Maintenance also affects performance. All coated color steel sheet surfaces benefit from periodic cleaning, especially in coastal or polluted areas where salt and dirt can accumulate. Cleaning removes deposits that hold moisture and accelerate coating degradation. Even the best PVDF coating cannot compensate for years of neglect, but PVDF coating and SMP coating are more forgiving than standard polyester coating under real-world conditions.
The organic coating on a color steel sheet is not a cosmetic detail. It is the primary barrier between the steel structure and the environment. Polyester coating offers low cost and excellent formability, but limited UV resistance. SMP coating improves durability and scratch resistance at a moderate price, though it can still fade within a decade. PVDF coating delivers the best long-term color retention, corrosion resistance, and weatherability, making it the preferred choice for demanding architectural and coastal steel structures. By matching the coating chemistry to the environment, the expected service life, and the budget, specifiers can ensure that every color steel sheet performs as intended for as long as possible.
