In the modern construction and manufacturing landscape, few materials offer the perfect blend of strength, aesthetics, and durability like the prepainted color steel sheet. Often hidden in plain sight on the roofs of industrial complexes, the walls of commercial buildings, and even the casings of household appliances, this engineered marvel is the result of a highly sophisticated manufacturing process. The final performance of a color steel sheet—its weather resistance, formability, corrosion protection, and lifespan—is not merely a function of the steel base; it is predominantly determined by the precision of its coating forming process.
This article takes you behind the scenes of the coil coating line, explaining how each stage of the process, from substrate preparation to curing, defines the quality and suitability of the color steel sheet for various applications, particularly in synergy with modern steel structure buildings.

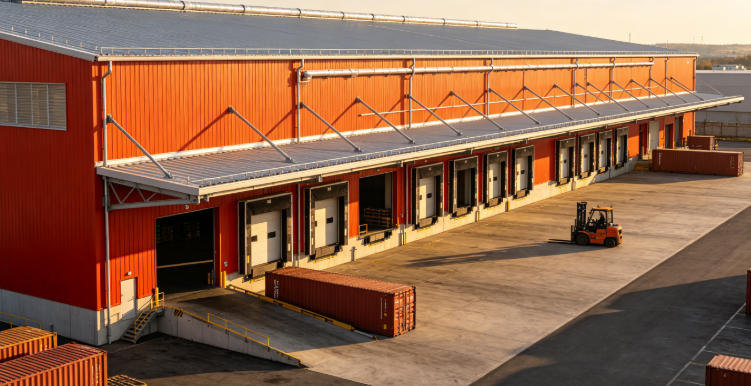

825type Color steel sheet from China manufacturer - Anhui Hongye Steel Structure Co., Ltd.
Before any color is applied, the journey of a high-quality color steel sheet begins with a strict regimen of cleaning and pretreatment. The base metal, typically a hot-dip galvanized steel (GI) or Galvalume (aluminum-zinc alloy) coil, is the structural backbone. However, even the best steel surface harbors microscopic contaminants that can compromise paint adhesion.
In a modern coil coating line, the steel strip travels at impressive speeds—often up to 120 meters per minute in the process section—through a series of alkaline spray cleaning stages. This is followed by brushing and rinsing with demineralized water. The goal is to achieve a pristine, chemically active surface. Subsequently, a chromium-free pretreatment is applied. This chemical conversion coating acts as a bridge between the metal and the primer, dramatically enhancing the corrosion resistance of the final color steel sheet. Without this critical step, even the most expensive topcoat would fail prematurely due to underfilm corrosion.
The performance characteristics of the color steel sheet are built layer by layer. While the general public sees only the final color, engineers understand a complex system comprising a primer, a back coat, and a high-performance topcoat.
The primer is applied directly onto the pretreated metal in a process known as "primary coating." Its primary function is adhesion. It creates a strong bond between the steel substrate and the topcoat while providing an initial, vital barrier against corrosion. Industry specifications indicate that a primer layer is typically combined with a topcoat to achieve a total film thickness of around 25 microns minimum on the top side and 10 microns for the back side epoxy primer.
The back coat on the reverse side of the color steel sheet is equally crucial, especially for steel structure roofing and sandwich panel applications. This layer protects the steel from the underside, preventing corrosion in humid or insulated environments. For example, advanced products utilize a two-layer grey backside coating to improve adhesion properties to adhesives and foams used in insulation systems.
The topcoat is the most visible component, dictating the color and gloss. However, its chemical composition is the primary determinant of long-term performance. The choice of resin system in the topcoat dictates how the color steel sheet withstands UV radiation, abrasion, and chemical exposure.
Polyester (PE): The standard workhorse, offering excellent adhesion and formability. It is cost-effective and suitable for general environments, with an anti-corrosion lifespan of about 7-8 years.
Silicone Modified Polyester (SMP): Modified with silicone resin, this coating offers improved heat resistance and UV protection compared to PE, extending service life to 10-12 years. It is widely used for building roofs and walls.
High Durability Polyester (HDP): Developed to bridge the gap between standard polyesters and premium fluorocarbons, HDP offers weather resistance close to PVDF (around 60-80%) at a more accessible price point, achieving a service life of up to 15 years.
PVDF (Polyvinylidene Fluoride): The premium choice for the most demanding architectural applications. Due to its strong carbon-fluorine bonds, PVDF offers superior resistance to chalking, fading, and corrosion, with a lifespan of up to 20-25 years. It is often the specified coating for high-end steel structure facades.
The manufacturing process involves applying these coatings via roller coaters. The "forming process" refers to the physical application and baking of these layers. A typical line features a prime coater and finish coaters to apply these layers in a continuous, automated sequence.

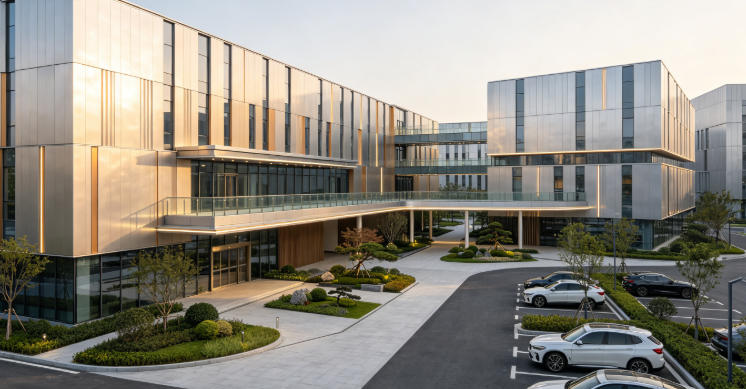

825type Color steel sheet from China manufacturer - Anhui Hongye Steel Structure Co., Ltd.
The physical properties of the paint, such as viscosity, are meticulously controlled. For instance, the front finish paint viscosity is often maintained at 75-90 seconds (using a specific viscosity cup), while the back finish paint is kept between 55-70 seconds. The speed ratio between the lifting roller and the coating roller is precisely calculated to ensure an even film thickness. If the viscosity or speed is off, the film may exhibit orange peel, shrinkage, or uneven thickness, compromising the protective integrity of the color steel sheet.
Perhaps the most critical step in the process is the curing oven. The freshly coated steel strip enters a long furnace (sometimes exceeding 60 meters) where hot air is blown directly onto the strip. The "Peak Metal Temperature" (PMT)—the maximum temperature the steel itself reaches—is strictly controlled. For primer coatings, this often needs to reach 232-241°C to achieve the optimal degree of cross-linking of the polymers. The holding time at this temperature is typically 20 to 25 seconds.
If the temperature is too low, the paint will not cure properly, resulting in poor hardness and adhesion. If the temperature is too high, the coating can become brittle or discolored. Immediately after baking, the color steel sheet is rapidly quenched in a water tank to cool it down from 240°C to approximately 40°C, stabilizing the cured coating. This rapid cooling locks in the mechanical properties of the film.
The success of the coating forming process is validated through rigorous testing. High-quality color steel sheet products are measured against demanding standards.
Salt Spray Resistance: The ultimate test of corrosion protection. Premium variants utilizing SDP/PVDF paints can achieve a salt spray resistance of over 1000 hours without failure.
Scratch Resistance: The hardness of the coating is crucial for handling during installation on a steel structure. Scratch resistance values of 40 N are achievable with high-end coatings like Pural BT.
Formability: The color steel sheet must be able to be bent, profiled, and folded on-site without the coating cracking. High-performance materials can withstand demanding folding even at temperatures as low as -15°C, demonstrating excellent ductility from the forming process.
The prepainted color steel sheet is a testament to advanced material engineering. It is not merely "painted steel"; it is a composite material where the polymer chemistry of the coatings and the physics of the application process are fused to the mechanical strength of the steel. For designers and engineers working with steel structure buildings, understanding these process variables is essential.
When you select a color steel sheet, you are not just choosing a color; you are selecting a specific coating chemistry (PE, SMP, HDP, PVDF) and trusting in a manufacturing process that precisely controls cleaning, pretreatment, application speed, baking temperature, and cooling. These factors determine whether the building will retain its beauty and structural integrity for 8 years or 25 years. The coating forming process, therefore, is not just a step in manufacturing; it is the determinant of the material's very soul.

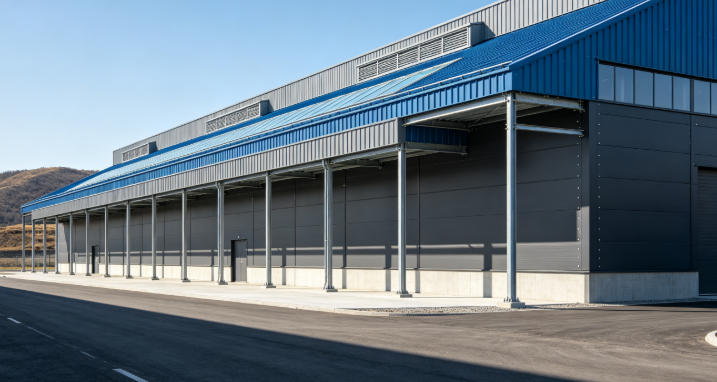

Color steel sheet from China manufacturer - Anhui Hongye Steel Structure Co., Ltd.
