When you look at a color steel sheet, you see a single, uniform color. A deep blue, a bright red, a subtle grey. It seems like one continuous surface. But that appearance is deceiving. The paint system on a color steel sheet is not a single layer. It is a carefully engineered stack of at least two, often three, distinct organic layers. Each layer has a specific job. The primer and the topcoat are the two most important. Misunderstanding their roles—or specifying them poorly—leads to premature failure, peeling, and corrosion. This article unpacks the multi-layer paint structure of color steel sheet, explaining what each layer does, how they work together, and why the invisible layers matter as much as the visible color.
YX 51-250-750 Prepainted Steel Plate
A color steel sheet is a composite material. The base is cold-rolled steel. On top of that sits a metallic protective coating—most commonly zinc (galvanized) or a zinc-aluminum alloy. This metallic layer provides sacrificial corrosion protection. Above it lies the organic paint system. That system usually consists of a primer, a topcoat, and sometimes a back coat on the reverse side.

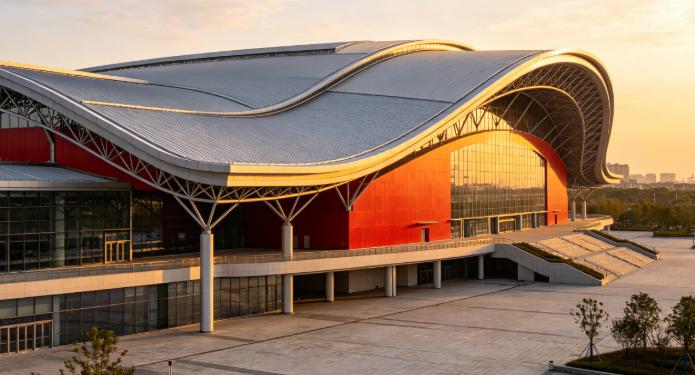

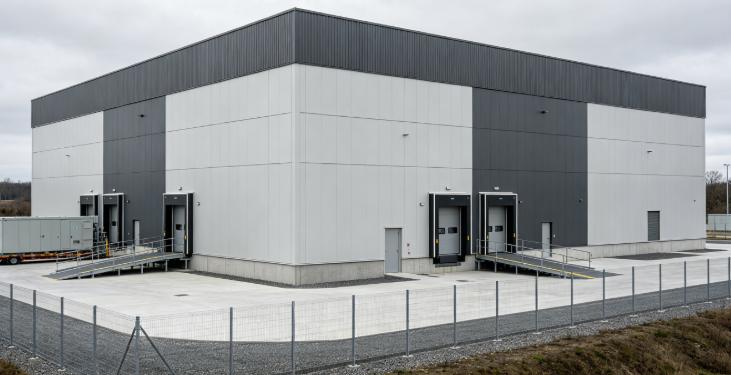

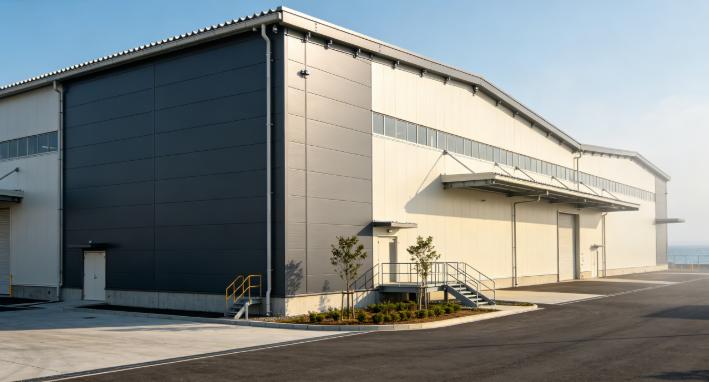

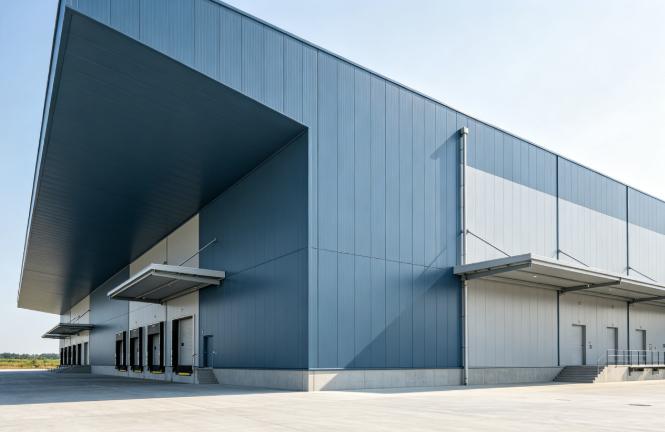

In steel structure applications—warehouses, factories, airports, stadiums—color steel sheets are used as roofing and wall cladding. They face sun, rain, salt, chemicals, and temperature swings. The paint system is not decoration. It is the first line of defense against corrosion. If the paint fails, the metallic coating is exposed, and eventually the steel itself begins to rust.
A common question from buyers is: why not just apply one thick coat of paint? The answer is that no single coating can do everything required. A coating that adheres strongly to metal is often not the same coating that resists ultraviolet (UV) radiation. A coating that provides corrosion inhibition may not provide the desired color or gloss. A coating that is flexible enough to survive bending may not be hard enough to resist scratching.
The multi-layer approach solves this problem by dividing the work. The primer handles adhesion and corrosion inhibition. The topcoat handles appearance and weather resistance. Together, they form a system that is far more durable than either layer alone. This division of labor is why coil-coated color steel sheets can survive twenty years or more in harsh environments, while a single-layer paint would fail in a fraction of that time.
The primer is the first organic layer applied to the metallic coating. It is typically 5 to 10 micrometers thick. You never see it, but it determines whether the entire paint system stays attached.
The primer has three main functions:
Adhesion promotion. It must bond chemically and mechanically to the metallic coating. This is why surface pretreatment—such as chromate or non-chromate conversion coating—is critical. The primer must also bond to the topcoat. This is called intercoat adhesion.
Corrosion inhibition. The primer contains pigments that inhibit corrosion at defects, cut edges, and scribes. Historically, hexavalent chromium (chromate) pigments were used because they are extremely effective. However, due to environmental and health regulations, chromate has been largely replaced by non-chromate inhibitors such as phosphates, silicates, and vanadates. These alternatives require better pretreatment and sometimes thicker primers to match chromate performance.
Barrier protection. The primer slows the penetration of water, oxygen, and ions to the metal surface. It is not a perfect barrier, but it delays the onset of corrosion.
The chemistry of the primer is usually epoxy, polyester, or polyurethane. Epoxy primers offer excellent adhesion and corrosion resistance but can chalk under UV exposure. Polyester primers are more flexible and cost-effective. Polyurethane primers combine good adhesion with flexibility. The choice depends on the substrate, the topcoat, and the exposure environment.
Curing is also critical. During coil coating, the primer is cured at a peak metal temperature (PMT) typically between 200°C and 240°C. If the primer is under-cured, residual solvents remain, and intercoat adhesion suffers. If it is over-cured, the surface becomes too inert, and the topcoat cannot bond properly. Both scenarios lead to coating delamination.
The topcoat is the layer you see. It is typically 20 to 25 micrometers thick, though premium systems may be thicker. Its primary functions are:
Color and gloss. The topcoat contains pigments and fillers that provide the desired aesthetic appearance. It also contains additives that control gloss, texture, and surface smoothness.
UV resistance. Sunlight degrades organic coatings. UV radiation breaks chemical bonds, causing chalking, fading, and loss of gloss. The topcoat contains UV absorbers and stabilizers to slow this process. The resin chemistry also matters. Polyester is the most common topcoat resin because of its balance of cost and performance. Siliconized polyester (SMP) offers better UV resistance. Polyurethane offers good flexibility and chemical resistance. Polyvinylidene fluoride (PVDF) is the premium choice, typically containing 70% fluoropolymer resin. PVDF coatings are known for exceptional color and gloss retention.
Abrasion and chemical resistance. The topcoat must resist scratching during handling and installation. It must also resist chemicals present in the environment—acid rain, industrial pollutants, bird droppings, and cleaning agents.
Weathering. Rain, snow, and temperature cycles attack the topcoat. A good topcoat sheds water and resists cracking.
The topcoat is cured at a PMT typically between 220°C and 250°C. For PVDF, higher temperatures—up to 260°C—are required to properly fuse the fluoropolymer. If the topcoat is under-cured, it will not achieve its full weather resistance. If it is over-cured, it may become brittle and crack.
Many color steel sheets also have a back coat. This is a thin organic layer—often 5 to 10 micrometers—applied to the reverse side. The back coat prevents corrosion on the underside of the sheet, which is especially important in roofing where condensation can form. It also improves handling and protects the metallic coating during storage.
YX 51-250-750 Prepainted Steel Plate
The primer and topcoat are not independent. They form a system. The primer provides the foundation: adhesion and corrosion inhibition. The topcoat provides the shield: UV protection, weather resistance, and aesthetics. Without the topcoat, the primer would degrade quickly under sunlight. Most primers are not formulated for UV exposure. They would chalk, fade, and eventually erode, leaving the metal unprotected. Without the primer, the topcoat would not adhere well to the metallic coating, and corrosion would start at every scratch and cut edge. The topcoat alone cannot provide the same level of corrosion inhibition because it lacks the inhibitive pigments.
There is also a mechanical synergy. The primer fills the microscopic irregularities of the metallic coating, creating a smooth surface for the topcoat. This improves the appearance and reduces the risk of pinholes. The topcoat protects the primer from physical damage and chemicals, extending its life.
In short, the primer is the anchor and the inhibitor. The topcoat is the shield and the face. Both are essential.
The performance of a color steel sheet depends on the entire coating system, not just one layer. Industry standards provide a framework for specifying and testing these systems.
ASTM A755/A755M is the standard specification for steel sheet, metallic-coated by the hot-dip process, and painted for exterior building products. It defines coating mass designations for the metallic coating—such as Z275 (275 g/m² zinc) or AZ150 (150 g/m² zinc-aluminum)—and provides requirements for the paint system.
Adhesion is tested using ASTM D3359 (cross-cut tape test) and ASTM D4541 (pull-off test). A rating of 0 in ASTM D3359 means perfect adhesion; a rating of 5 means catastrophic failure. For exterior color steel sheets, a rating of 0 or 1 is typically required.
Corrosion resistance is tested using ASTM B117 (neutral salt spray) and ISO 9227. A typical specification might require 1,000 hours of salt spray with less than 2 mm of scribe creep for a standard polyester system. Premium PVDF systems can exceed 2,000 hours.
Weathering is tested using ASTM G154 (QUV accelerated weathering) and ASTM G7 (natural exposure). The most reliable data comes from natural exposure sites, such as South Florida, where sunlight and moisture are intense. According to manufacturers' published exposure data and warranties, 70% PVDF coatings typically retain at least 50% of their original gloss after 20 years in South Florida. Standard polyester coatings may lose 50% gloss within 5 to 10 years. Siliconized polyester (SMP) falls in between, with typical warranties of 10 to 15 years. These are not laboratory claims; they are backed by decades of field data.
It is important to note that these numbers assume a properly formulated primer and topcoat system. A poor primer can cause the best topcoat to fail prematurely. A thin topcoat can allow UV to degrade the primer, leading to coating delamination from the top down.
Coating delamination on color steel sheets often occurs at the interface between the primer and the topcoat, not just at the metal surface. This is called intercoat adhesion failure. It can be caused by several factors:
Incompatible chemistries. If the primer and topcoat are not designed to work together, they may not form a strong bond. For example, an epoxy primer may not bond well to a polyester topcoat if the epoxy is fully cured and has a low surface energy. Coil coaters typically use matched systems from the same supplier to avoid this.
Contamination. Oils, dust, or fingerprints on the primer surface can create a weak boundary layer. The topcoat may adhere to the contaminant rather than the primer, and the whole stack can peel away.
Over-curing or under-curing. If the primer is over-cured, its surface becomes chemically inert. The topcoat cannot form covalent bonds. If the primer is under-cured, residual solvents may migrate into the topcoat, causing blistering and poor adhesion.
Excessive primer thickness. A primer that is too thick can trap solvents and create internal stress. It can also crack during bending, providing a starting point for coating delamination.
Topcoat too thin. If the topcoat is too thin, UV radiation can penetrate and degrade the primer. The primer may then lose its adhesion to the metal, and the entire system fails.
On the metal side, failure can occur if the metallic coating is contaminated. As discussed in previous research, a zinc surface enriched with oxides, hydroxides, and carbonates can form a weak boundary. The primer adheres to this ceramic-like layer, which then detaches from the zinc beneath.
For steel structure cladding, the environment dictates the coating system. A color steel sheet that performs well in a dry, temperate climate may fail rapidly in a coastal chemical plant. Specifiers should consider:
Corrosive environment. Coastal areas need a thicker metallic coating (e.g., AZ150 or Z275) and a premium topcoat such as PVDF. Industrial areas with acid rain may need polyurethane topcoats for chemical resistance. Interior applications can use standard polyester.
UV exposure. High-sunlight regions require topcoats with excellent UV stability. PVDF is the best choice. SMP is a mid-range option. Standard polyester is suitable for lower-UV environments.
Temperature extremes. Dark colors absorb more heat and expand more. A flexible primer and topcoat system can accommodate thermal cycling better. PVDF and polyurethane are more flexible than standard polyester.
Cut edge protection. Cut edges are the most vulnerable part of a color steel sheet. The primer and metallic coating must provide sacrificial protection. A thicker metallic coating and a primer with good corrosion inhibition are essential.
Back coat. For roofing, a back coat is not optional. It prevents condensation corrosion and extends the life of the steel structure.
Buyers should ask for the full coating system specification, not just the color. They should request test reports for paint adhesion (ASTM D3359, ASTM D4541), salt spray (ASTM B117), and weathering (ASTM G154 or natural exposure). They should also verify that the color steel sheet meets ASTM A755 for exterior building products.
The multi-layer paint structure of a color steel sheet is an engineered system. The primer and topcoat are not interchangeable. The primer provides adhesion and corrosion inhibition. The topcoat provides color, UV resistance, and weather protection. Together, they form a barrier that can last decades. When they are mismatched, contaminated, or improperly cured, coating delamination follows.
For steel structure applications, understanding this multi-layer structure is not academic. It is practical. The invisible layers—the primer and the back coat—often determine whether a color steel sheet survives five years or twenty. The visible topcoat determines how it looks. Both matter. By specifying the right system for the environment, engineers and buyers can avoid the costly cycle of repainting, repair, and premature replacement. The paint is not just a finish. It is a critical component of the corrosion protection system. And like any system, it works best when every layer does its job.
