Steel floor deck is one of the most fundamental yet frequently misunderstood components in modern construction. Walk into any multi-story office tower, hospital, parking garage, or industrial facility, and beneath the finished floor surface lies a system that has been quietly supporting the structure for decades. For structural buyers, engineers, and contractors, understanding steel floor deck is not optional—it is essential to project success, cost control, and long-term building performance.
This guide covers everything you need to know about steel floor deck: what it is, how it works, the key types available, critical specifications, design standards, fire resistance, sustainability considerations, and practical buying guidance. Whether you are specifying your first deck system or your hundredth, this article will help you make informed, code-compliant decisions.
At its most basic, steel floor deck is a cold-formed, corrugated steel sheet that serves as the foundation for concrete floor slabs in steel-framed buildings. It is installed over steel beams and joists, then concrete is poured on top. The resulting floor system combines the compressive strength of concrete with the tensile strength of steel, creating a lightweight yet remarkably strong structural assembly.
The steel structure relies on floor deck for more than just a place to pour concrete. The deck provides diaphragm action—transferring lateral loads from wind and seismic events to the building's lateral force-resisting system. It also serves as a working platform during construction, allowing trades to move forward before the concrete fully cures.
Steel deck is manufactured in coils, roll-formed into various profile shapes, and typically galvanized with a zinc coating (G60 or G90) to protect against corrosion. The standard material is Grade 33 or Grade 50 steel, conforming to ASTM specifications.
Understanding the differences between deck types is the single most important step in the selection process. Choosing incorrectly can mean structural underperformance—or unnecessary cost.

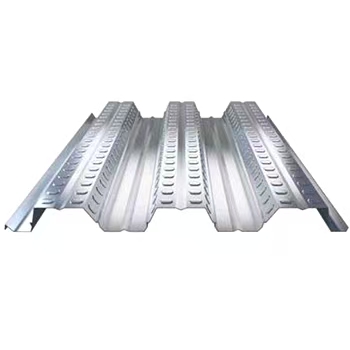

Composite steel floor deck—sometimes designated as Type WR—is engineered to bond structurally with the concrete poured on top of it. The deck features embossments (small indentations rolled into the web of the profile) that provide mechanical interlock with the cured concrete.
This composite action allows the steel and concrete to act as a single structural unit under load. The steel floor deck becomes the positive bending reinforcement for the slab. The benefits are substantial:
Longer spans without additional beams
Higher load capacities
Elimination of temporary shoring during construction in most applications
Reduced overall structural depth, which can translate to significant cost savings in multi-story buildings
Common composite deck profiles include 1.5 inch, 2 inch, and 3 inch depths. The 2 inch profile is the most widely specified for commercial multi-story work.
Non-composite deck—Type WF—serves as permanent steel formwork for concrete slabs. Unlike composite deck, it does not feature embossments, meaning it does not bond structurally with the cured concrete. The slab carries floor loads independently, resting on the steel form.
The deck stays in place permanently after the pour—no stripping required—but structurally, the slab and deck are treated as separate elements. Non-composite deck is typically specified when composite action is not structurally required by the design:
Ground-floor and on-grade platform slabs
Parking structures where the slab design is self-sufficient

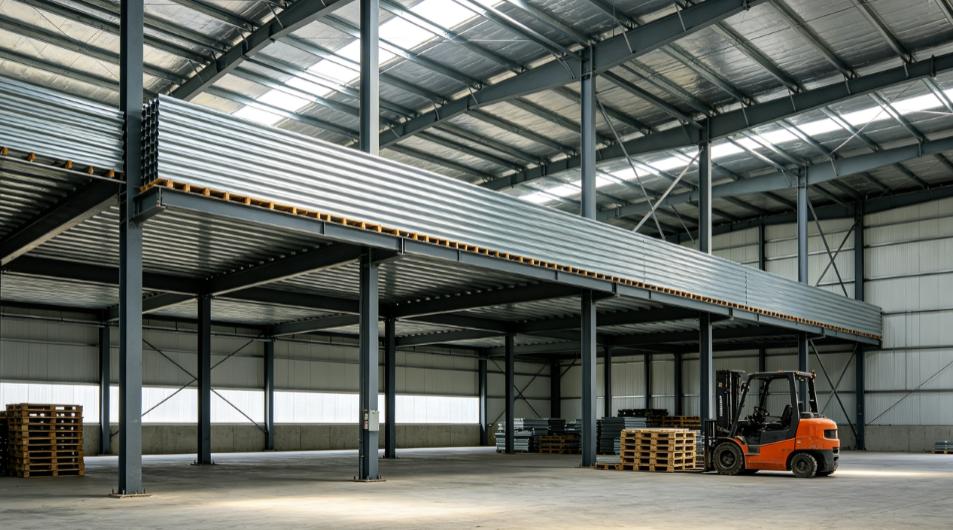

Industrial mezzanine systems
Building renovations with existing framing constraints
Common form deck depths include 9/16 inch, 1 inch, and 1.5 inch profiles.
A third category—cellular or closed-rib deck—features a fully enclosed profile that creates integral raceways for electrical and data cabling. These systems are common in office buildings where underfloor power distribution is required, though they represent a smaller segment of the overall market.
Steel floor deck is not a commodity product that can be specified casually. It is governed by rigorous standards that ensure safety, performance, and consistency.
The Steel Deck Institute (SDI) is the primary authority for steel deck design in North America. The SDI Floor Deck Design Manual, Second Edition (FDDM2)—published in June 2020—integrates the updated 2017 ANSI/SDI Design Standards and aligns with the 2018 and 2021 International Building Codes (IBC). The manual includes:
Design tables for composite and non-composite steel floor deck outlining section properties
Allowable construction spans
Flexural and shear resistance
Load tables and design examples for concentrated loads and scissor lift-type moving loads
Considerations for sound transmission and impact
The ANSI/SDI C-2017 Standard for Composite Steel Floor Deck-Slabs governs the materials, design, and erection of composite concrete slabs utilizing cold-formed steel deck functioning as permanent form and as reinforcement for positive moment.
In 2024, SDI announced the publication of ANSI/SDI AISI S100 2024 North American Specification for the Design of Cold-Formed Steel Structural Members, further advancing the technical foundation for steel structure design.
For buyers and specifiers, adherence to SDI standards is non-negotiable. Specifying deck that does not meet these standards exposes the project to significant liability.
Steel deck thickness is measured by gauge. The lower the gauge number, the thicker and stronger the steel. Selecting the correct gauge is a fundamental decision that affects span capacity, load resistance, and overall durability.
For light-duty applications such as roof systems and short-span floors, 22-gauge deck is often adequate. It provides sufficient strength for minimal live loads and is economical for non-structural or low-traffic areas. Moving up, 20 gauge deck is the standard choice for moderate commercial builds, including office fit-outs and retail spaces where typical floor loads apply.
When structural strength becomes a priority—especially in multi-story buildings—18-gauge decking is frequently specified. This thickness allows for longer spans and higher load capacity, and it is the most common gauge for composite floor systems in high-rise construction. For maximum structural performance, 16-gauge deck delivers superior resistance to bending and deflection, making it the go-to option for industrial facilities, heavy equipment areas, and long-span applications where safety margins are critical.
The choice of gauge directly impacts material cost, but it also influences the number of supporting beams required and the overall structural depth. A heavier gauge may reduce framing costs by enabling wider beam spacing, so the total project cost must be evaluated holistically.
Span capacity depends on steel gauge, deck depth, and design loads. Deeper profiles and heavier gauges support longer spans and heavier loads.
For composite deck, typical spans range from approximately 3.0 metres (MF55 profile) to over 8.0 metres (Long Span 220 profile). The 2 inch composite deck typically supports construction spans from 1 foot to 11 feet in distance. Engineers reference SDI load tables—now optimised for improved readability in FDDM2—to determine the appropriate gauge and profile for each application. These tables account for both construction (wet concrete) loads and final service loads, ensuring safety during and after pouring.
It is also essential to consider concentrated loads, such as those from forklifts, storage racks, or mechanical equipment. The SDI design examples now include guidance for such moving and point loads, which are common in industrial environments.
The standard finish for steel floor deck is galvanised zinc coating. G60 coating (0.60 oz/ft²) is common for form deck, while G90 (0.90 oz/ft²) is typically specified for composite deck and more corrosive environments. The zinc coating protects the steel during the construction phase—especially from rain and moisture—and throughout the building's service life. In highly aggressive environments, such as coastal areas or chemical plants, additional protective coatings or stainless steel alternatives may be considered, but for the vast majority of projects, galvanised finishes provide reliable corrosion resistance.
Fire protection is a critical consideration for any steel structure. Steel floor deck assemblies are tested and rated by Underwriters Laboratories (UL) and listed in the UL Fire Resistance Directory.
The UL D982 design provides two-hour assembly ratings with unprotected steel deck and spray-applied fire-protective materials (SFRM) on the steel beam. Revisions to UL D982 have allowed fire protection costs to be cut nearly in half compared with older unrestrained applications.
Different profiles offer varying fire resistance ratings. For example, the MF80 profile can achieve 120 minute fire resistance, while deeper profiles like CF100 can reach 150–180 minutes. Fire resistance depends on slab build-up, reinforcement, and is verified via SCI P360 and supplier fire design guides. When specifying a deck system, buyers must confirm that the chosen assembly meets the required fire-rating for the building's occupancy and height. This often involves coordinating with the structural engineer and fire protection consultant early in the design phase.
Steel floor deck is one of the most sustainable building materials available—a fact that is increasingly important as the construction industry moves toward net-zero carbon goals.
Steel has a recycling rate exceeding 90% and can be recycled endlessly without losing quality. Most non-metallic materials end up being landfilled or downgraded during any potential reuse.
Manufacturers are pushing these numbers even higher. Vulcraft manufactures steel products made from an average of 77.3% recycled content, with some products containing nearly 100% recycled content. Kingspan's LEC Structural Steel is made with 75% recycled content. The Steel Deck Institute notes that steel deck products are made from an average of 60.6% recycled content.
Recent innovations include ultra-low-carbon decks produced from recycled scrap steel in Electric Arc Furnaces (EAF). Structural Metal Decks has launched R733 floor and roof decking as its lowest carbon steel product to date, manufactured from SSAB Zero™ Electric Arc Furnace steel using recycled material and renewable energy. ArcelorMittal's XCarb® long-span decking profiles reduce embodied carbon by up to 67% compared to conventional steel.
For buyers pursuing LEED certification, steel floor deck contributes to multiple credit categories through recycled content and end-of-life recyclability. Additionally, the light weight of steel deck reduces transportation emissions and foundation loads, further lowering the overall environmental footprint of the building.
The global steel structure market reflects the importance of products like steel floor deck. The structural steel market was valued at approximately $123 billion in 2025 and is projected to reach $202 billion by 2033, growing at a CAGR of 6.7%.
More specifically, the global steel composite floor deck market was valued at $5.2 billion in 2025 and is projected to grow to $8.1 billion by 2034, at a CAGR of 4.9%. The broader profiled steel sheet decking market accounted for $12.3 billion in 2025 and is expected to reach $18.6 billion by 2032.
These growth figures reflect the ongoing shift toward steel-framed construction in commercial, industrial, and multi-residential sectors worldwide. Factors driving demand include urbanisation, population growth, and the need for faster construction methods that steel framing enables.
The choice between composite and non-composite deck is a structural decision—your engineer of record will specify the type based on load tables, span requirements, and code compliance. Do not attempt to substitute one type for another without engineering approval. Even within the same type, variations in embossment pattern or rib spacing can affect composite behaviour, so always follow the engineer's designation.
Ensure your supplier provides deck manufactured to SDI standards. The ANSI/SDI standards are referenced in the International Building Code. Deck that does not meet these standards may not be code-compliant. Ask for mill certificates and third-party test reports to confirm material properties, coating weight, and dimensional tolerances.
The cheapest deck is not always the most economical. Thicker gauges and composite profiles may cost more upfront but can reduce the number of beams required, eliminate shoring, and accelerate construction schedules. A properly designed system can withstand heavy loads and environmental stress for decades. Also factor in maintenance—galvanised deck generally requires little upkeep, but in humid or chemically aggressive settings, a heavier coating or additional paint may be justified.
Fire-rated assemblies must be designed and specified from the outset. Retrofitting fire protection after the fact is expensive and often impractical. Consult UL-listed assemblies and verify that your selected profile and slab build-up achieve the required rating. Work with the fire protection engineer to confirm that the spray-applied materials or intumescent coatings are compatible with the deck profile.
FDDM2 incorporates considerations for sound transmission and impact. For projects with acoustic requirements—schools, hospitals, residential buildings—acoustic performance should be evaluated during the design phase. Different profiles offer varying sound transmission class (STC) ratings, from approximately 47 dB to 56 dB. Adding acoustic mats or changing the concrete mix can also improve performance, but these decisions are best made early.
G60 galvanised coating is typically sufficient for interior applications and form deck. G90 provides additional corrosion resistance for composite deck and exposed or high-humidity environments. If the deck will be left exposed for an extended period before the concrete pour, consider a heavier coating or temporary protective film to prevent rust staining.
Pre-cut material reduces field work and accelerates project timelines. When deck is properly specified, it arrives cut to length and ready for installation, reducing time spent on field adjustments and minimising scrap waste. Also coordinate with the erection team on lifting and placement—deck bundles can be heavy, and crane time is expensive. Sequence the delivery to match the construction schedule, avoiding on-site storage that could lead to damage or corrosion.
Before installation, inspect the deck for shipping damage, flatness, and coating integrity. Check that the gauge, profile, and length match the order. Document any discrepancies immediately with the supplier to avoid delays. During installation, ensure that side laps and end laps are properly fastened according to the design drawings—missed fasteners are a common source of deck failure under construction loads.
Steel floor deck is far more than a simple metal sheet—it is an engineered structural component that plays a critical role in the performance, safety, and economy of modern buildings. From composite decks that leverage the combined strength of steel and concrete to non-composite form decks that provide permanent, cost-effective formwork, the range of options allows designers to tailor solutions to virtually any application.
For structural buyers, the key takeaway is this: invest the time to understand the fundamentals. Work closely with your engineer of record. Specify to SDI standards. Consider the full lifecycle cost, not just the material price. And recognise that the steel structure you are building will only be as strong as the deck that supports it.
With the global steel deck market projected to grow substantially over the next decade, and with sustainability credentials that are increasingly difficult to match, steel floor deck will remain an indispensable component of the built environment for generations to come. Whether you are erecting a high-rise office tower or a sprawling distribution centre, getting the deck right from the start is one of the smartest investments you can make in structural integrity and project success.
