In modern construction, the steel floor deck has become an indispensable component of steel structure buildings. As architects and engineers push for taller, lighter, and more cost-effective structures, the demand for high-performance steel floor deck systems continues to rise. The global steel structure market was valued at approximately $124.72 billion in 2025 and is projected to reach $131.59 billion in 2026, representing a compound annual growth rate of 5.5%. Within this expanding market, steel floor deck products play a pivotal role in delivering efficient, durable flooring solutions.

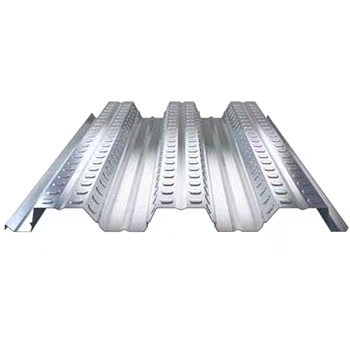

Open Type Floor Decking HY51-250-750 - HongYe
This article provides a comprehensive exploration of steel floor deck—from the materials that compose it to the installation practices that bring it to life, and the performance characteristics that make it an engineering choice of preference worldwide.
The quality of any steel floor deck begins with the raw material. The Steel Deck Institute (SDI), in conjunction with ASTM International, has established rigorous standards that govern the steel sheets used in deck manufacturing.
Sheet steel for galvanized steel floor deck must conform to ASTM A653/A653M Structural Quality, with a minimum yield strength of 33 ksi (230 MPa). For projects demanding enhanced performance, Grade 40 or Grade 50 steel may be specified, offering yield strengths of 40 ksi and 50 ksi respectively. Higher-strength options, including Grade 80 steel conforming to ASTM A653, A1008, A792, and A875, are also permitted in floor deck applications.
According to the ANSI/SDI C-2017 Standard for Composite Steel Floor Deck-Slabs, the design of composite steel floor deck systems must comply with the North American Specification for the Design of Cold-Formed Steel Structural Members (AISI S100). This framework ensures that every steel floor deck product meets consistent structural performance criteria regardless of manufacturer.
Corrosion resistance is paramount in steel structure applications, particularly in environments exposed to moisture, chemicals, or aggressive atmospheric conditions. The galvanized coating serves as the primary defense mechanism.
The most common coating designations for steel floor deck are G60 and G90 (or their metric equivalents Z180 and Z275). Under the ASTM A653 standard, a G90/Z275 galvanized coating provides a zinc thickness of approximately 0.90 oz/ft². Products are also available with aluminum-zinc alloy coated steel sheet corresponding to designation AZM150 (AZ50) per ASTM A792.
The choice of coating directly impacts the service life of a steel floor deck. In composite applications where the deck will be embedded in concrete, the alkaline environment of curing concrete provides additional passivation, but the galvanized coating remains essential for protection during the construction phase and for exposed soffit conditions.

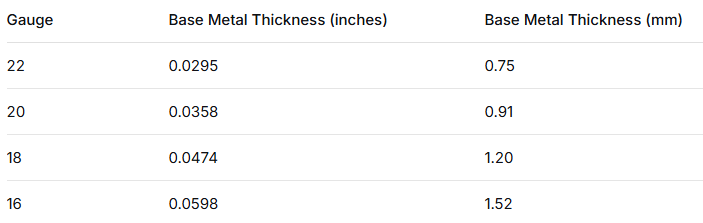

Steel floor deck is manufactured in a range of gauges, each corresponding to a specific base metal thickness. The most common gauges are:
These thicknesses are verified through ICC-ES evaluation reports and form the basis for all structural calculations. In practice, 22-gauge deck is typically used for lighter loads and shorter spans, while 16-gauge deck supports heavy industrial loads and longer spans. Composite floor deck is commonly available in depths of 1.5 inches, 2 inches, and 3 inches.
The profile geometry of a steel floor deck is not merely aesthetic—it directly influences structural capacity, composite action, and installation efficiency. Common profiles include:
B-Deck: A wide-rib profile suitable for both floor and roof applications
W-Series (W2-36, W3-36): Composite floor deck profiles with embossed ribs for mechanical bond with concrete
N-Series: Deep-rib profiles for extended spans and heavy loads
Dovetail profiles: Offering architectural appeal with clean soffit finishes
The Steel Deck Institute's Floor Deck Design Manual (FDDM), based on ANSI/SDI C-2011 and ANSI/SDI NC-2010 standards, provides comprehensive design tables for each profile type.
Understanding the distinction between deck types is essential for proper specification. Steel floor deck falls into three primary categories.
Composite steel floor deck is engineered to work structurally with the concrete slab poured over it. The deck features embossments or indentations in the vertical ribs that create a mechanical interlock with the cured concrete. This composite action means the steel deck and concrete slab function as a single structural unit, sharing load-carrying responsibilities.
The composite steel floor deck serves a dual function: it acts as a permanent formwork during concrete placement and as tensile reinforcement in the completed floor system. This dual role eliminates the need for traditional formwork removal and reduces the amount of conventional reinforcing steel required.
Composite decks are designated with specific profiles—W2-36, W3-36, B-36, N3-32, and N-24 are among the most common. The embossed pattern creates a bond strength that has been verified through extensive testing, with shear-bond coefficients (kS and kG) provided in manufacturer technical data sheets.
Non-composite steel floor deck, also known as form deck, serves as a permanent form for poured concrete but does not develop composite action with the slab. Without embossments, the steel and concrete remain structurally independent.
The non-composite steel floor deck must safely support its own weight, the weight of wet concrete, and construction activity. Once the concrete hardens, the deck continues to provide support but does not contribute to the slab's flexural strength in the same way composite deck does.
Form deck is specified in applications where composite action is not required—stair landings, mechanical equipment platforms, and certain renovation projects. Available profiles include Type SV and Type DV, with thicknesses ranging from 0.015 inches to 0.135 inches depending on the application.
For projects requiring integrated services distribution or enhanced sound attenuation, cellular composite deck and acoustical deck provide specialized solutions. Cellular deck incorporates longitudinal cells within the profile that can accommodate electrical and data cabling. Acoustical deck includes perforations and sound-absorbing materials to improve the Sound Transmission Class (STC) and Impact Insulation Class (IIC) ratings of the floor assembly.
Proper installation of steel floor deck is critical to achieving the designed structural performance. The installation process involves multiple steps, each requiring attention to detail and adherence to industry standards.
Before any steel floor deck panels are placed, thorough planning is essential. Shop drawings must indicate the decking plan, profile dimensions, anchorage requirements, projections, openings, and reinforcement details. These drawings serve as the roadmap for the entire installation.
Temporary shoring must be evaluated before deck placement. While many steel floor deck systems are designed for unshored construction, long spans or heavy construction loads may require temporary support to meet deflection limitations during concrete placement.
Decking bundles must be positioned to prevent overloading of supporting members. The Steel Deck Institute's Manual of Construction with Steel Deck provides comprehensive guidance on material handling and site logistics.
Steel floor deck panels are typically delivered to the construction site in bundles and positioned on the steel beam system. The sheets must be erected true to alignment, placed evenly, and matched at joists.
Key considerations during placement include:
End bearing: A minimum exterior bearing length of 2.5 inches is generally required
Side laps: Panels must be properly nested or interlocked, with side-lap connections in accordance with AISI S100, AISI S310, and AWS D1.3
Alignment: Panels must be squared and aligned to ensure proper load transfer to supporting members
The integrity of any steel structure depends on the connections that hold it together. Steel floor deck is fastened to supporting steel members through several methods.
Arc spot (puddle) welding is the most common method for attaching steel floor deck to structural steel framing. The welding process must comply with AWS D1.3 Structural Welding Code—Sheet Steel. Weld diameters and patterns are specified based on deck depth and loading conditions—for example, a 36/7 pattern for 1.5-inch deep deck and 24/4 pattern for 3-inch deep deck.
Shear studs are welded through the deck to create composite action between the steel beam and the concrete slab. Where supports are to receive shear studs, the top flanges must be unpainted and free from grease or rust that might adversely affect the weld. In locations with obstructions, beams may need to be pre-studded at the factory.
Side-lap fasteners connect adjacent deck panels to ensure the steel floor deck acts as a unified diaphragm. The fastening pattern and type must be designed to transfer both gravity and lateral loads.
Open Type Floor Decking HY51-250-750 - HongYe
Installer qualifications are a critical component of successful steel floor deck installation. An experienced installer who has completed similar steel deck work with a record of successful in-service performance should be engaged. Welders must be certified, with certifications no more than six months old during the erection period.
The load-carrying capacity of a steel floor deck is determined by its gauge, profile depth, span configuration, and concrete fill characteristics. Design values, including section properties, web crippling capacities, and allowable uniform loads, are provided in manufacturer load tables and ICC-ES evaluation reports.
Unshored clear spans for composite steel floor deck typically range from 7 to 12 feet for 2-inch deep profiles. Deeper profiles such as 3-inch decks can achieve longer spans. For non-composite applications, unsupported spans typically range from 8 to 12 feet.
The effective section modulus (S') and effective moment of inertia (I') for deflection are calculated based on the composite or non-composite section properties. Slab deflections are calculated using the average of cracked and uncracked moments of inertia and compared to required deflection limits.
Fire safety is a paramount concern in steel structure buildings. Steel floor deck systems have been extensively tested to achieve fire resistance ratings that meet building code requirements.
The fire resistance of a composite steel floor deck depends on slab thickness, concrete type, reinforcement, and the deck profile. Typical fire ratings include:
60 minutes (1 hour): Achieved with a minimum slab depth of approximately 100-102mm for normal weight concrete
90 minutes: Achieved with slab depths of approximately 170mm
120 minutes (2 hours): Achieved with slab depths of approximately 200mm
Up to 4 hours: Possible with specialized designs and fireproofing
Fire testing is conducted per ASTM E119, and fire-resistance ratings are listed in the Underwriters Laboratories Fire Resistance Directory. Composite slabs can achieve up to 120 minutes of fire resistance with simple provision of mesh reinforcement.
As buildings become more densely occupied and mixed-use, acoustic performance has emerged as a critical design consideration. The Sound Transmission Class (STC) rating measures a floor assembly's ability to block airborne sound.
Typical acoustic performance for steel floor deck systems includes:
Shallower decks (MF55, R51, CF51): STC of 47-50dB, suitable for general applications
Deeper/narrower decks (MF80, CF80, TR80): STC exceeding 52dB, required for healthcare, education, and premium office environments
Enhanced systems: Can achieve 52dB STC bare for a 140mm slab, reaching up to 57dB STC bare for a 200mm slab
One of the most valuable—and often overlooked—functions of steel floor deck is its role as a horizontal diaphragm in the lateral force resisting system. Steel deck diaphragms efficiently resist lateral loads from wind and seismic forces because the deck can support gravity, uplift, and lateral loading simultaneously.
The Steel Deck Institute's Diaphragm Design Manual (DDM4) provides the design methodology for steel deck diaphragms. The diaphragm acts as a deep beam, with the deck serving as the web; fasteners and attachment patterns control strength and stiffness. This diaphragm action was critically validated in the aftermath of the 1994 Northridge Earthquake, which demonstrated the essential role of properly designed diaphragms in preventing structural collapse.
The steel structure industry has made significant strides in sustainability, and steel floor deck is no exception. Steel is 100% recyclable at the end of a building's service life. The material can be recycled and used to construct another building, manufacture an automobile, or become a home appliance.
Recycled content in steel floor deck products typically includes 25-30% post-consumer recycled content and 20% pre-consumer recycled content. Some manufacturers have developed ultra-low carbon deck products produced from recycled scrap steel in Electric Arc Furnaces (EAF), achieving approximately one-third of the CO₂ emissions compared to traditional blast furnace produced steel.
Environmental Product Declarations (EPDs) for steel floor deck provide transparent reporting of environmental impacts, including Global Warming Potential (A1-A3) of approximately 0.818 kg CO₂e/kg. Products with 75% recycled content and 66% reduction in embodied carbon are now commercially available.
The demand for steel floor deck continues to grow alongside the broader steel structure market. China's steel structure building market reached approximately RMB450 billion in 2025 and is expected to approach RMB490 billion by 2030. Globally, the steel structure market is projected to grow to $161.03 billion by 2030 at a CAGR of 5.2%.
Key trends shaping the industry include:
Modular and pre-engineered steel structures: Increasing adoption of prefabricated solutions drives demand for standardized steel floor deck products
Sustainable steel applications: Growing emphasis on low-carbon and recycled-content materials
Digital fabrication and monitoring: Integration of AI-enhanced design tools and smart structural health monitoring
High-strength steel frameworks: Rising demand for Grade 50 and Grade 80 steels enables longer spans and lighter structures
The steel floor deck is far more than a simple metal form—it is an engineered structural system that contributes to the strength, safety, and sustainability of modern steel structure buildings. From the material specifications defined by ASTM A653 and SDI standards to the installation practices governed by AWS D1.3 and AISI S100, every aspect of steel floor deck is backed by decades of research and real-world performance.
As the global construction industry continues to embrace steel structure solutions, the steel floor deck will remain an essential component—delivering the load capacity, fire resistance, acoustic performance, and sustainability that today's buildings demand. Whether specified as composite or non-composite, galvanized or painted, shallow or deep-ribbed, the steel floor deck represents the intersection of material science, engineering precision, and construction efficiency that defines modern building practice.
