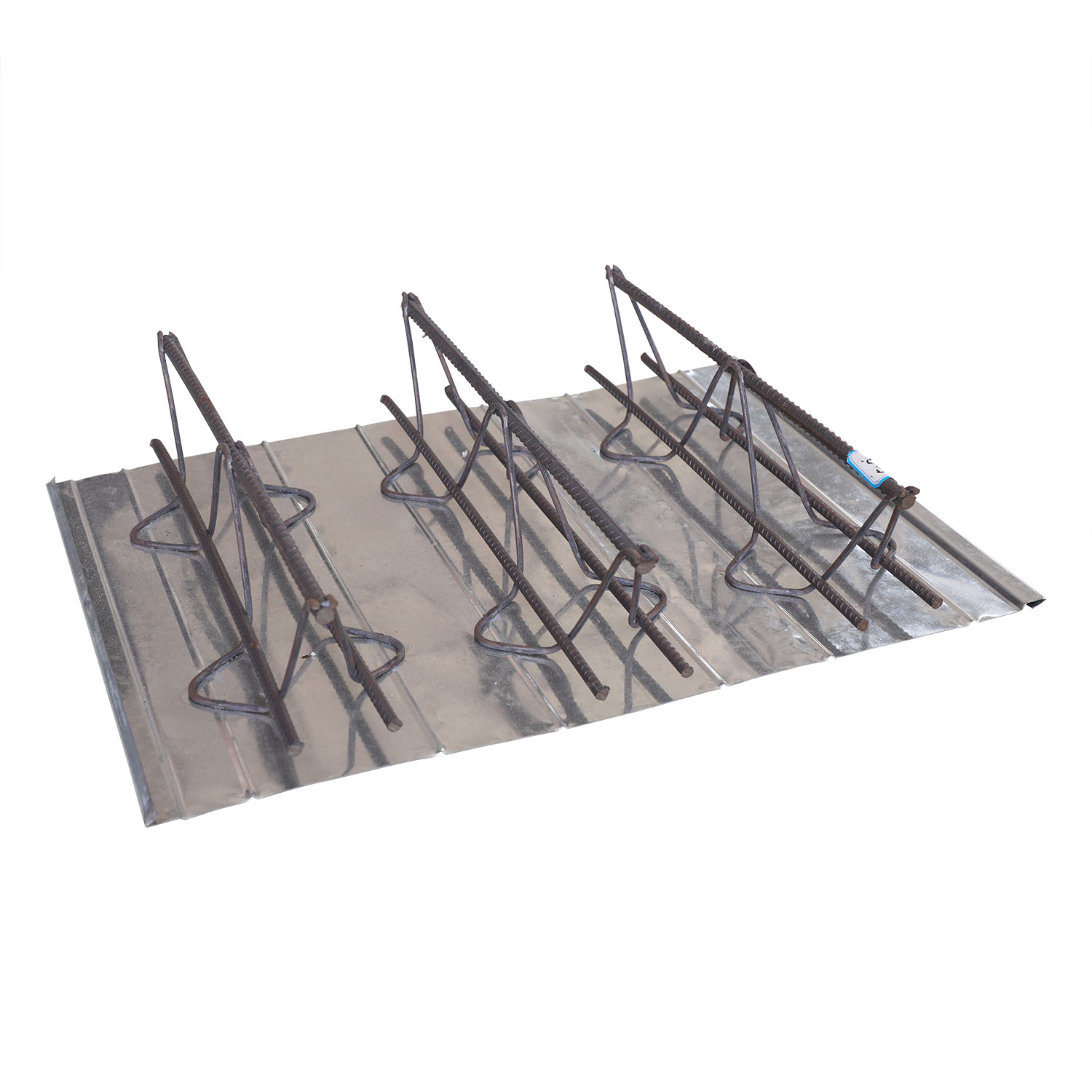

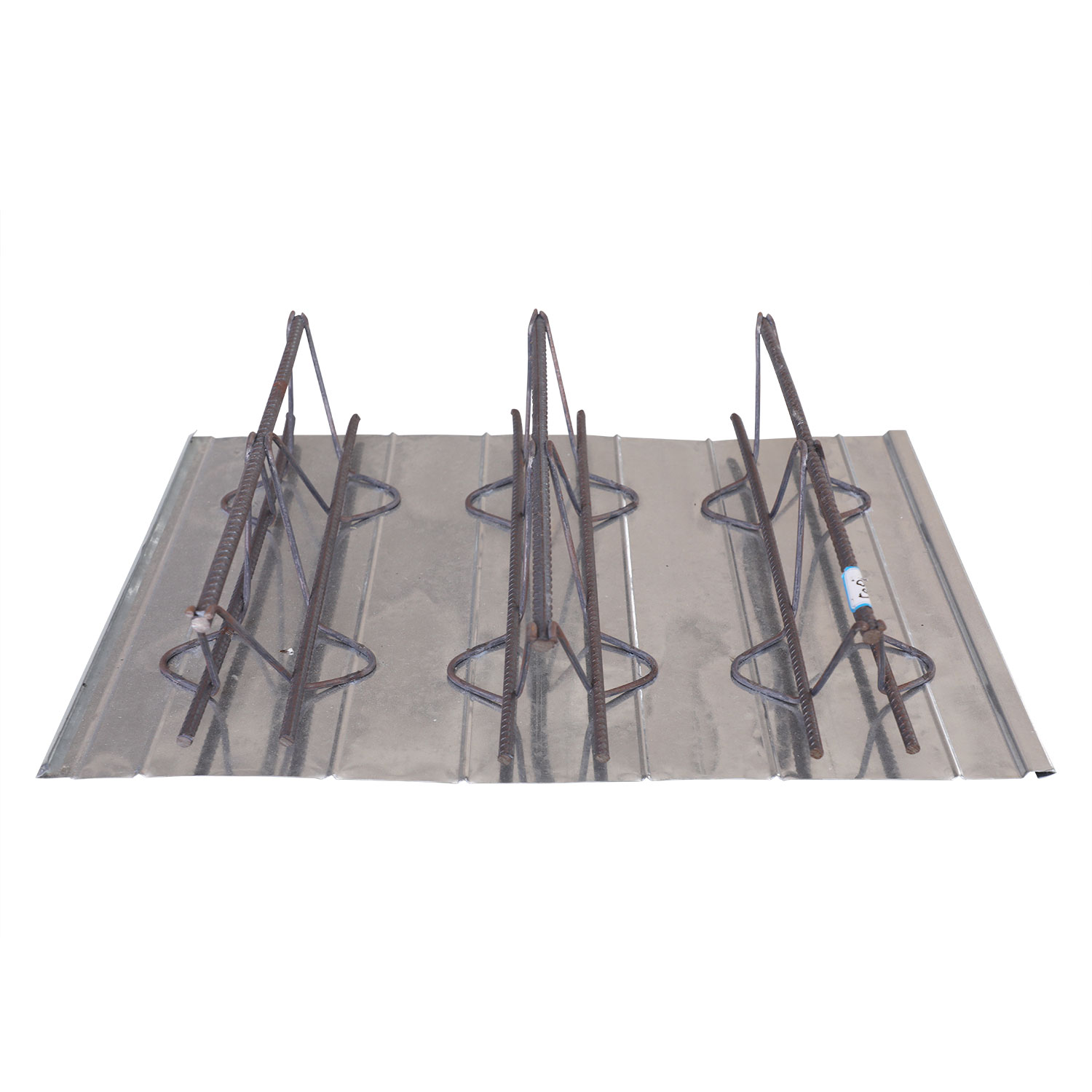

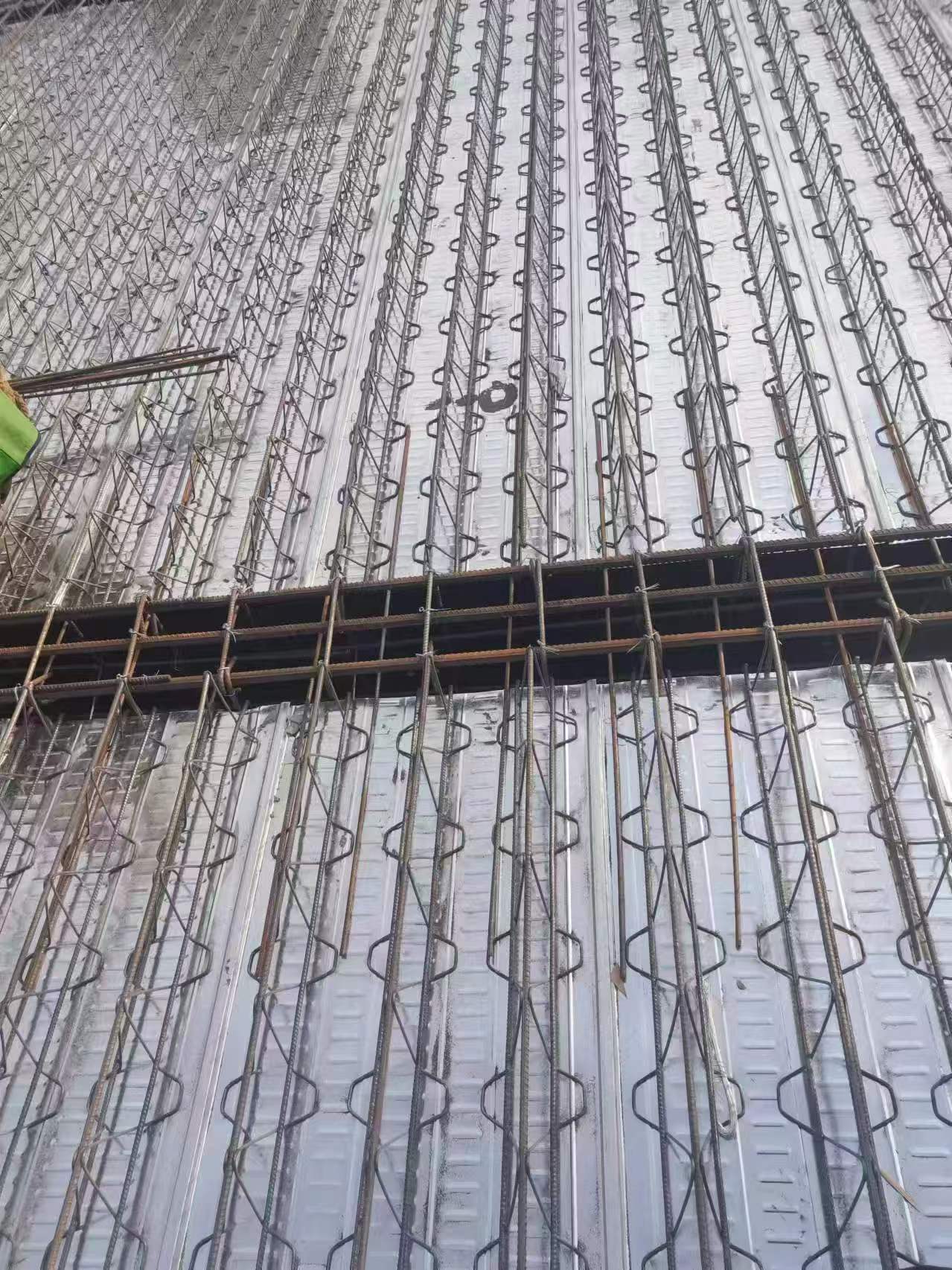

The steel bar truss floor deck can bear the operation load and be directly laid out on the beam. The concrete casting can be carried out after simple steel bar construction. Because it can completely replace the form board without the form board installation and dismounting roject,it greatly improves the construction efficiency. It is widely used in structures and building like the multi-story plant building,multi-story ,high rise,super high rise building,various irregular building floor,concrete structure,high speed railway and so on.
Hot-dip galvanized steel ensures long-lasting protection against rust, moisture, and harsh environmental conditions (e.g.,industrial or coastal areas). •Zinc coating thickness typically ranges from 275g/m² to 600g/m², meeting international anti-corrosion standards (e.g., ASTM A653)
Triangular truss configuration distributes loads evenly, supporting up to 300–1000 kg/m² depending on design (closed-rib or
perforated types). •Ideal for heavy-duty applications like industrial floors, multi-story buildings, and equipment platforms.
Reduces structural load on buildings compared to traditional concrete slabs, lowering foundation costs.
| The diameter of upper & lower rebar | 6-14mm |
| The diameter of web rebar | 4-7mm |
| The height of the truss | 70-270mm |
| The diameter of the Horizontal support rebar | 10mm(h≤100MM），12（H＞100MM） |
| The diameter of the Vertical support rebar | 12mm(h≤100MM），14（H＞100MM） |
| The thickness of the deck | 15mm |
| The width of the deck | 600mm |
| The thickness of protective concrete | 15mm，20mm，25mm，30mm |
| The length of the steel truss deck | 1.0-12m |
Material Specifications | Width (mm) | Height (mm) | Upper Chord Rebar | Web reinforcement | Bottom Chord Rebar |
| 6-4-4 | 80 | 110 | 6 mm | 4 mm | 4 mm |
| 6-4-4 | 80 | 80 | 6 mm | 4 mm | 4 mm |
| 6-4-6 | 80 | 110 | 6 mm | 4 mm | 6 mm |
| 6-4-6 | 80 | 80 | 6 mm | 4 mm | 6 mm |
| Rebar Material | Rel(Mpa) | Rm(Mpa) | Agt(%) | Weight Deciation(%) |
| CRB550 | 530 | 560 | 11.3 | 4 |
| HRB400E | 450 | 670 | 15.6 | 4.4 |
Standard Expanded Width: With an expanded width of 1000mm, it integrates seamlessly with standard construction materials and processes, ensuring efficient installation and compatibility with other structural components.
Wide Thickness Range: Offering thickness options from 1.0mm to 3.0mm, it caters to a broad spectrum of load requirements, from light-duty storage spaces to heavy-industry applications.
High Strength-to-Weight Ratio: Its optimized profile and high-quality steel material result in an excellent strength-to-weight ratio, providing strong load-bearing capacity without excessive weight.
