Imagine walking into the lobby of a 60-story skyscraper. You look up, and all you see is polished marble, gleaming glass, and the hum of activity. What you don’t see—what almost no one ever sees—is the intricate network of steel beams, columns, and floor systems that makes the entire experience possible. If the steel structure of a high-rise building is its skeleton, then the floor bearing deck is its indispensable partner—the system that transforms a vertical frame into a functional, habitable space.
But what exactly is a floor bearing deck? And why has it become such a critical component in modern high-rise construction? This article explores the multifaceted role of the floor bearing deck, from its structural functions to its economic and environmental benefits, drawing on current research and real-world data.
A floor bearing deck—also known as profiled steel sheet, steel floor bearing plate, or simply metal deck—is a cold-formed steel plate manufactured by rolling and bending galvanized steel. Its cross-section typically takes V-shaped, U-shaped, trapezoidal, or similar waveforms. The surface is often embossed with patterns that create mechanical interlocking between the steel and the poured concrete, enabling the two materials to act as a single composite unit.
In high-rise construction, the floor bearing deck serves three primary functions: permanent formwork during construction, tensile reinforcement for the concrete slab in service, and lateral load distribution as part of the building‘s overall structural system.

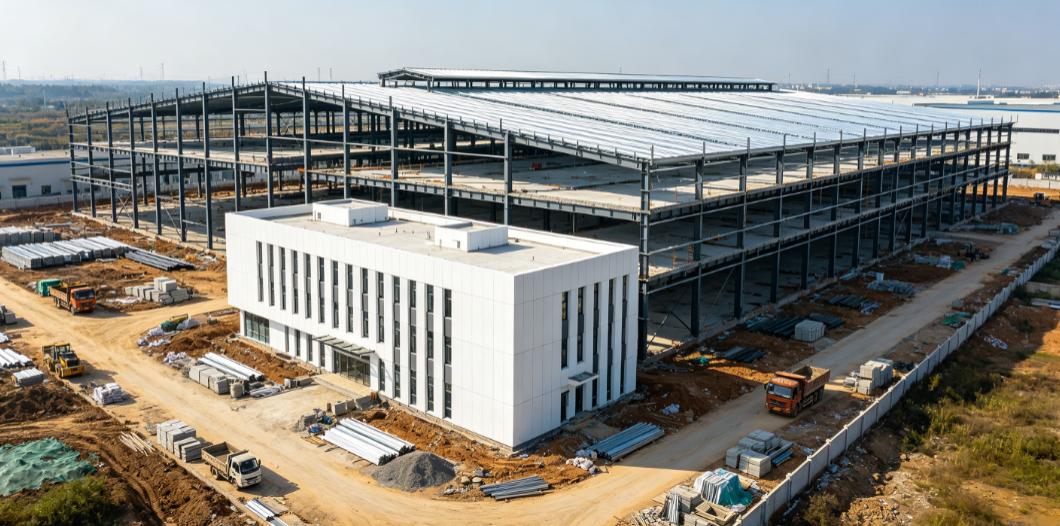

Before understanding the floor bearing deck’s role, we must first appreciate the skeleton it serves. Steel structures are extensively used in high-rise buildings owing to their superior mechanical properties, seismic resilience, and economic efficiency. The global structural steel market was valued at USD 128.64 billion in 2025 and is expected to grow at a compound annual growth rate of 4.1% through 2035. China’s steel structure industry alone aims to reach 140 million tons of annual steel consumption by the end of 2025, accounting for over 15% of crude steel production.
High-strength steel enables reduced component dimensions and structural dead load, decreasing material usage and construction costs. For high-rise buildings, where load demands and floor counts are critical, these advantages are particularly significant. One study found that compared with concrete structures, steel truss roof systems can reduce costs by 28.5%, shorten construction periods by 62.5%, and expand usable space due to longer spans. Steel structures also demonstrate environmental advantages, reducing carbon emissions by 15% and construction waste by 60%.
But a steel skeleton alone cannot create a building. Every floor must be supported, every level must be habitable, and every load must be transferred efficiently to the columns and foundations. This is where the floor bearing deck enters the picture.
In traditional concrete construction, formwork must be erected, supported by temporary scaffolding, and then removed after the concrete cures—a labor-intensive, time-consuming process. The floor bearing deck eliminates much of this overhead.

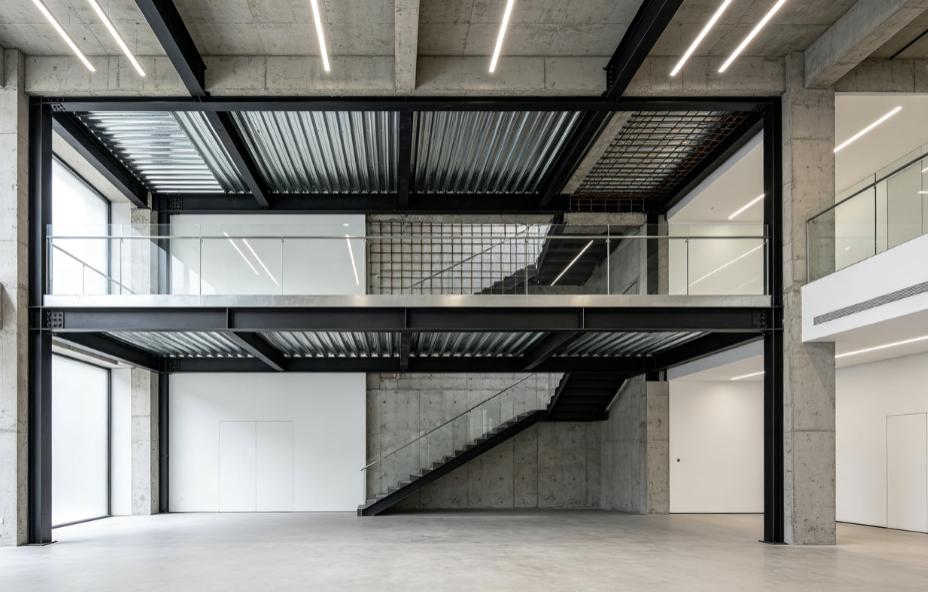

The deck is laid directly onto the steel beams, secured in place, and serves as a permanent formwork that requires no removal. This allows construction to proceed rapidly floor by floor. Steel decking can be installed in large sections, providing a firm working platform almost immediately. For a steel structure high-rise, this speed is transformative: the structural frame can rise dozens of stories while floor decks are being placed just a few levels behind, enabling parallel work streams that compress overall project schedules.
The steel-bar truss deck composite floor system, for example, can achieve a maximum unsupported construction span of up to 3.6 meters, significantly reducing or even eliminating the need for temporary bracing. The truss configuration provides greater stiffness to the floor bearing deck, allowing construction to proceed without waiting for concrete to gain full strength.
Once the concrete is poured over the profiled steel deck, a true composite slab is formed. The embossed surface of the deck creates mechanical bond with the concrete, and the steel acts as the primary tensile reinforcement for the slab. Concrete, strong in compression but weak in tension, is complemented by the steel deck’s tensile strength. The result is a floor system that is stronger, stiffer, and more efficient than either material alone.
This composite action is what makes the floor bearing deck so valuable. Research has demonstrated that composite flooring deck systems have significantly enhanced the competitiveness of steel-framed construction for high-rise buildings. The structural behavior of these systems must be considered in three phases: construction-stage behavior (when the steel deck alone supports wet concrete), composite slab behavior (when the deck and concrete act compositely), and composite beam behavior (when the slab interacts with supporting steel beams).
Composite shallow floor systems have emerged as an effective structural solution for mid- to high-rise construction, offering improved constructability, reduced floor depth, and accelerated installation. These systems combine steel and concrete to form a structurally integrated floor assembly that minimizes overall thickness while maintaining strength and stiffness. By eliminating deep beams and minimizing formwork, they maximize floor-to-floor height and shorten construction schedules.
Perhaps the most critical—and least visible—role of the floor bearing deck is its contribution to the building‘s overall structural integrity under lateral loads. The floor system is an important part of a supertall building’s gravity system: it sustains floor loads by bending and shearing, transmitting those loads to vertical supporting members.
But the floor system does more than carry vertical loads. It also connects all vertical members into a whole and serves as the lateral support of the vertical structural system. In essence, the floor bearing deck—together with the concrete slab—acts as a horizontal diaphragm that distributes wind and seismic forces among the building‘s columns, shear walls, and core. Without this horizontal connection, the vertical steel structure would lack the stability needed to resist lateral loads.
This is particularly important in seismic regions. Steel structures are favored in such areas precisely because of their superior mechanical properties and seismic resilience. Research has shown that high-strength core column steel frame systems can significantly increase load-carrying capacity, enhance ductility, mitigate inter-story deformation concentration, and reduce the risk of collapse under seismic excitation. The floor system plays an essential role in distributing these forces and enabling the structure to respond as a unified whole.
Not all floor bearing decks are created equal. High-rise construction typically employs one of three main types:

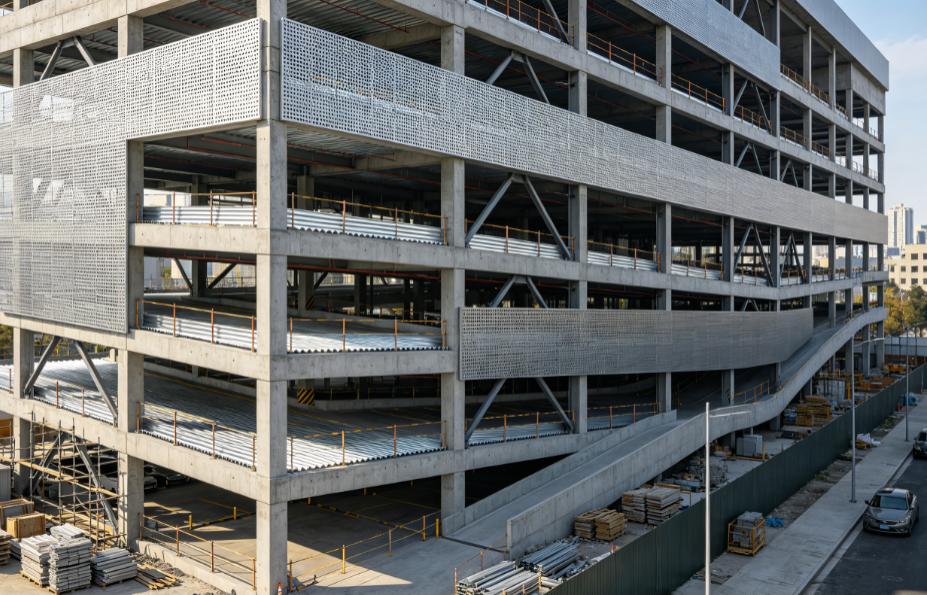

Open-trough profiled deck systems are the most widely used and prevalent choice for composite slabs in high-rise buildings. These trapezoidal profiles offer excellent span capabilities and composite action.
Flat-profiled deck systems provide a smoother underside, which can be advantageous for ceiling aesthetics and service integration. However, they typically offer less composite action than profiled alternatives.
Steel-bar truss deck systems incorporate factory-fabricated steel bar trusses welded to the galvanized steel sheet. These systems offer superior mechanical performance and are often used in areas with complex stresses, such as mechanical floors. They can reduce on-site steel bar binding work by 60% to 70%, significantly accelerating construction.
Deep-rib composite steel decks can span up to 36 feet between support members, while dovetail composite decks can span up to 28 feet. This span capability allows for more open, column-free interior spaces—a key advantage for commercial high-rise buildings.
A high-rise building’s floor system must satisfy far more than structural requirements. Modern floor bearing deck systems must also address fire resistance, acoustic performance, and vibration control.
Fire resistance is paramount. China’s Ministry of Emergency Management reported that high-rise fires exceeded 17,000 cases in 2022 alone, with numbers steadily increasing over the past five years. Composite slabs with trapezoidal profiled steel deck are the most widely used choice, but their fire performance has been the subject of extensive research. Studies on G550 galvanized steel-concrete composite slabs have demonstrated fire resistance exceeding 60 minutes without the use of additional reinforcement. Some composite deck systems can achieve fire ratings of up to 180 minutes with a 120mm slab.
Acoustic performance is equally important in dense urban high-rises where hundreds of units share the same structure. Modern floor bearing deck systems incorporate design features for acoustic separation, including added mass in the slab, acoustic mats, and floating floor systems. Designers coordinate deck profile, topping thickness, and connector spacing to meet serviceability limits while satisfying acoustic partition requirements.
Vibration control has also become a critical design consideration. Steel–deck composite floor slabs are increasingly used in high-rise buildings because they are economical and easy to construct, but their lighter weight makes them more susceptible to human-induced vibrations. Long-term performance depends on detailing for vibration control, acoustic separation, and fireproofing.
The floor system is not merely a technical consideration—it has profound economic implications. The cost of the floor system accounts for 20% to 30% of the total construction cost in supertall buildings. Its self-weight accounts for 20% to 50% of the total weight of reinforced-concrete tall buildings. Every kilogram saved in floor weight translates to savings in columns, foundations, and seismic design.
Floor bearing deck systems contribute to cost savings in multiple ways. They reduce the amount of concrete required—typically saving about one-third of the concrete volume compared to traditional formwork systems. They eliminate the need for formwork removal and reduce on-site reinforcement labor by 60% to 70%. They enable faster construction, reducing financing costs and accelerating return on investment.
Composite slim-floor systems, which pair rolled beams with a thin profiled steel deck and high-strength concrete topping, have gained particular attention. These systems reduce overall building height while maintaining or improving floor-to-floor performance. The result is a noticeable reduction in total building height across dozens of stories—often saving on facade costs, vertical transport core sizes, and external cladding quantity.
Sustainability considerations are increasingly driving material choices in high-rise construction. The steel structure already offers environmental advantages: structural steel remains one of the most recycled construction materials. Steel producers are expanding electric arc furnace capacity and introducing lower-emission product lines.
The floor bearing deck contributes to sustainability in additional ways. Reduced concrete usage lowers the embodied carbon of the floor system. The lighter weight of composite systems reduces the steel required for supporting columns and foundations. Sustainability calculations often favor composite designs because reduced steel tonnage and decreased cladding area lower embodied carbon per square meter.
Reinforced concrete structures in China are increasingly being compared with steel alternatives on environmental grounds. One study found that steel structure programmes reduce carbon emissions by 15% and construction waste by 60% compared to concrete alternatives.
The floor bearing deck continues to evolve. Prefabricated and detachable steel truss floor bearing plates are being developed to improve assembly rates while maintaining the benefits of cast-in-place concrete. These innovations aim to save construction costs and improve efficiency while achieving high-quality physical results.
Building Information Modeling (BIM) integration is enabling more sophisticated optimization of floor systems. Optimization methods such as Multiple Decomposition Method and Sensitivity Data Driven Algorithm are being employed to design large-span steel beams supporting deck floors in tall office buildings. These tools allow engineers to optimize for structural performance, cost, and sustainability simultaneously.
The global push toward net-zero targets is also driving innovation. Composite slim-floor systems, with their reduced material usage and lower embodied carbon, are transitioning from specialist solutions into mainstream high-rise practice.
The floor bearing deck is far more than a simple piece of profiled steel. It is the unsung partner of the steel structure—a component that serves as formwork, reinforcement, diaphragm, and cost-saving device all at once. It enables the rapid construction of high-rise buildings, provides the tensile strength that concrete lacks, distributes lateral loads to keep the structure stable, and does all of this while reducing material usage and construction time.
As cities continue to grow vertically and sustainability pressures intensify, the role of the floor bearing deck will only become more important. Whether through deeper spans, better fire resistance, improved acoustic performance, or lower embodied carbon, this essential partner to the steel skeleton will continue to evolve—quietly, invisibly, and indispensably supporting the skylines of tomorrow.
