C shaped steel, also known as C-channel or cold-formed C-purlin, has evolved from a niche structural profile into a foundational material in modern steel structure engineering. Defined by its distinctive C-shaped cross-section—featuring a vertical web and two parallel flanges with curled edges—it is manufactured via high-precision cold-rolling of hot-rolled coils, typically in grades Q235B or Q355B, with thicknesses ranging from 1.5 mm to 3.0 mm and heights from 80 mm to 300 mm. Unlike traditional hot-rolled channel steel, C shaped steel boasts uniform thin walls, excellent dimensional accuracy (cutting flatness error ≤ 0.5 mm), and superior mechanical efficiency. These properties, coupled with its exceptional strength-to-weight ratio, ease of fabrication, and cost-effectiveness, have made it indispensable across industries. According to the China Iron and Steel Industry Association, China’s C shaped steel consumption reached 12.7 million tons in 2025, with steel structure buildings, logistics warehousing, and photovoltaic (PV) applications accounting for 68.4% of total demand. This article explores the core practical scenarios where C shaped steel dominates, backed by authoritative data and engineering insights, to reveal why it is the preferred choice for lightweight, high-performance steel structure systems.
C Type Channel Steel Purlin Light Weigh Galvanized Profiles

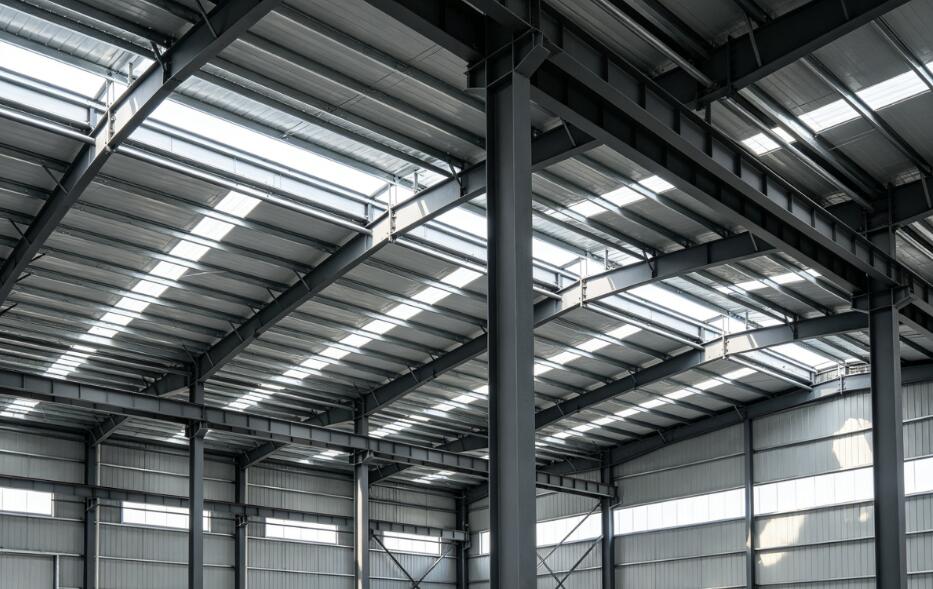

The most traditional and extensive use of C shaped steel is as roof purlins and wall girts in single- and multi-story steel structure factories, accounting for 28.9% of China’s total C shaped steel consumption in 2025. In these facilities, C shaped steel serves as the secondary load-bearing system, bridging the main steel frames (columns and beams) and supporting roof panels (color steel plates, sandwich panels) and wall cladding. Its primary function is to transfer vertical loads (roof weight, snow) and horizontal wind suction to the primary structure, ensuring structural stability and enclosure integrity.
Lightweight & High Strength: C shaped steel reduces steel consumption by 20–30% compared to traditional angle steel or hot-rolled channel steel composite purlins, lowering the overall structural load and foundation costs. Its yield strength of 235–345 MPa and tensile strength of 400–520 MPa meet GB/T 706-2016 standards for industrial load requirements.
Span Adaptability: Standard C shaped steel purlins support spans of 4–9 meters, while combined configurations can achieve up to 36 meters, making them ideal for large, open- plan factories in automotive, machinery, light industry, and chemical sectors.
Rapid Installation: Standardized, interchangeable components eliminate on-site complex processing. Dedicated bolted connectors reduce single-node installation time to under 5 minutes, accelerating project delivery by 30–40% versus traditional methods.
In automotive manufacturing plants, C shaped steel purlins support 1.5–2.0 mm thick color steel roof panels over 6–8 meter spans, withstanding wind speeds up to 25 m/s and snow loads of 0.5 kN/m². For chemical workshops, hot-dip galvanized C shaped steel (zinc coating ≥ 275 g/m²) provides corrosion resistance in humid, chemical-laden environments, extending service life to 25+ years.
The logistics and warehousing sector is the second-largest consumer of C shaped steel, at 23.0% of 2025 demand, driven by the boom in e-commerce, cold chain logistics, and automated warehousing. These facilities prioritize large clear spans, high space utilization, rapid construction, and lightweight structures—all strengths of C shaped steel.
Roof & Wall Secondary Framing: Similar to industrial buildings, C shaped steel purlins and girts form the enclosure system for flat warehouses, high-bay warehouses, and cold storage facilities. Their lightweight design minimizes interference with internal storage space and material handling equipment (e.g., forklifts, stackers).
Storage Racks & Support Frames: C shaped steel serves as vertical uprights, horizontal beams, and bracing for heavy-duty storage racks, supporting pallet loads of 500–3,000 kg. Its open flange design enables easy bolting and adjustment, accommodating flexible warehouse layouts.
Mezzanine Floors & Partitioning: In multi-story warehouses, C shaped steel acts as secondary beams for mezzanine floors, creating additional storage or office space without heavy primary structures. It also forms lightweight partition walls and ceiling supports.
Cost Efficiency: C shaped steel’s 25% lower unit weight cost versus H-beams reduces material and transportation expenses. Its recyclability (≥ 90%) aligns with green building goals, qualifying projects for sustainability certifications.
Durability in Special Environments: For cold storage (-25°C to 0°C), galvanized C shaped steel resists condensation and frost corrosion. In humid coastal warehouses, it outperforms uncoated carbon steel by 3–5 times in service life.
The PV industry is the fastest-growing consumer of C shaped steel, accounting for 16.5% of 2025 consumption and emerging as a core application driven by global carbon neutrality goals. C shaped steel forms the primary support framework for ground-mounted PV power stations, distributed rooftop PV systems, and agricultural PV shelters, with its lightweight, high rigidity, and corrosion resistance perfectly matching PV project requirements.
Mounting Brackets & Racks: C shaped steel supports PV panels at optimal angles (20–40°), withstanding wind loads (up to 30 m/s) and snow loads. High-strength Q355B C shaped steel, which reduces bracket weight by 15–20% versus Q235, now accounts for 62.3% of PV support usage (2023 data), projected to exceed 75% by 2025.
Foundation Connections & Bracing: C shaped steel connects PV brackets to concrete or steel pile foundations, providing lateral stability. Its open cross-section simplifies bolted connections, enabling rapid on-site assembly.
Agricultural PV Integration: In agri-PV projects, C shaped steel supports PV panels above crop fields, creating dual land use (power generation + agriculture). Its lightweight design avoids soil compaction, while its height (2.5–4.0 m) accommodates farm machinery.
China’s PV installed capacity exceeded 600 GW in 2025, driving C shaped steel demand of over 2 million tons. Leading PV bracket manufacturers (e.g., Arctech, Guoqiang Xingsheng) now use high-strength C shaped steel exclusively for large-scale ground projects, with hot-dip galvanized coatings ensuring 25-year service life in harsh desert or coastal environments.
C shaped steel is a core component of cold-formed thin-walled steel structure housing, a fast-growing segment in prefabricated construction. It serves as wall frame columns, floor beams, roof trusses, and window/door lintels in low-rise (1–3 story) residential buildings, villas, and commercial spaces (e.g., exhibition halls, shopping malls).
Energy Efficiency & Sustainability: C shaped steel’s lightweight structure reduces foundation loads by 40–50%, cutting construction energy use. Its 90%+ recyclability minimizes waste, aligning with green building standards.
Design Flexibility: Standard C shaped steel sections (C100–C200) enable flexible floor plans, with open layouts and large windows. High dimensional accuracy (tolerances ±1 mm) ensures tight connections and structural stability.
Rapid Construction: Prefabricated C shaped steel components are assembled on-site in 7–10 days for a 200 m² villa, 50% faster than traditional brick-concrete construction.
Accounting for 9.8% of 2025 consumption, C shaped steel is widely used in light-to-medium machinery frames, conveyor system supports, equipment bases, and production line workstations. Its high precision, excellent weldability, and structural stability make it ideal for industrial equipment requiring rigidity and vibration resistance.
Conveyor & Production Line Supports: C shaped steel frames support belt conveyors, roller conveyors, and assembly lines, withstanding dynamic loads and ensuring alignment precision. Weld strength with Q235/Q345 steel exceeds 90% of the base metal, preventing joint failure under vibration.
Electrical & Mechanical Equipment Racks: It forms frames for electrical control cabinets, ventilation systems, and HVAC equipment, offering lightweight yet rigid support. Its open design simplifies wiring and maintenance.
Automotive & Shipbuilding Components: In automotive manufacturing, C shaped steel reinforces truck body frames and floor beams. In shipbuilding, it supports cabin interiors, cable trays, and ventilation ducts, meeting marine corrosion standards.
Beyond buildings, C shaped steel plays a vital role in transportation infrastructure, bridges, tunnels, and municipal projects, where its lightweight, high strength, and durability are critical.
Bridge & Highway Reinforcement: C shaped steel reinforces bridge decks, trusses, and guardrails, resisting heavy vehicle loads and harsh weather. It also supports highway signage, noise barriers, and lighting systems.
Tunnel & Subway Support: In tunnel construction, C shaped steel forms secondary support structures and cable trays, withstanding rock pressure and moisture corrosion.
Retaining Walls & Culverts: It stabilizes soil in retaining walls and drainage culverts, providing long-term structural integrity in civil engineering projects.
Agricultural and temporary structures account for 6.6% of 2025 C shaped steel consumption, including greenhouses, livestock shelters, temporary construction sheds, and event stages.
Greenhouse Frames: Galvanized C shaped steel supports greenhouse roofs and walls, transmitting light efficiently while resisting wind and snow. Its lightweight design simplifies assembly and disassembly for seasonal use.
Livestock Shelters: It forms frames for cattle, poultry, and pig shelters, with corrosion-resistant coatings suitable for humid, ammonia-rich environments.
Construction Site Sheds & Offices: C shaped steel frames support temporary warehouses, workshops, and site offices, offering rapid deployment and reusability.
Event Stages & Bleachers: Its high strength-to-weight ratio makes it ideal for temporary stages, grandstands, and exhibition booths, ensuring safety under crowd loads.
C shaped steel’s widespread adoption across industries stems from its unmatched combination of lightweight, high strength, cost-effectiveness, and versatility. From steel structure factories (28.9%) and logistics warehouses (23.0%) to PV supports (16.5%) and residential buildings, it has become the backbone of modern lightweight construction. Authoritative data confirms its market growth: China’s C shaped steel market is projected to exceed 200 billion RMB by 2030, with a compound annual growth rate of over 8%.
As global demand for green, prefabricated, and cost-effective construction rises, C shaped steel will continue to expand its applications, driven by innovations in high-strength steel grades, corrosion-resistant coatings, and modular design. For engineers, architects, and project owners, understanding the practical scenarios and performance advantages of C shaped steel is critical to optimizing steel structure design, reducing costs, and ensuring long-term structural reliability.
