Walk into any major city skyline today, and you will see cranes dotting the horizon, lifting steel beams into place for the next generation of office towers, residential high-rises, and industrial facilities. Beneath the visible steel framing lies a critical component that makes modern steel structure construction possible at scale: the steel floor deck.
Steel floor deck, also known as composite metal deck or profiled steel sheet decking, is a cold-formed galvanized steel sheet with a corrugated profile—typically trapezoidal or re-entrant—that serves as permanent formwork for concrete slabs in steel-framed buildings. What makes it revolutionary is that it does not simply support wet concrete during construction; it integrates with the concrete after curing to form a composite structural element that significantly enhances load-bearing capacity and stiffness.
The numbers tell a compelling story. The global steel composite floor deck market was valued at USD 5.2 billion in 2025 and is projected to grow to USD 8.1 billion by 2034, representing a compound annual growth rate (CAGR) of 4.9%. The broader composite metal floor decking market, valued at USD 4.2 billion in 2025, is expected to reach USD 6.8 billion by 2034 at a CAGR of 5.3%. Meanwhile, the global profiled steel sheet decking market reached approximately 8,838 thousand tons in production in 2025.
But why has steel floor deck become virtually indispensable in modern steel structure construction? The answer lies in a combination of structural efficiency, economic advantages, sustainability benefits, and design flexibility that no alternative flooring system can match.
Open Type Floor Decking HY51-250-750 - HongYe
To understand why steel floor deck is so widely adopted, one must first understand the principle of composite action. When concrete is poured over a profiled steel deck, the two materials work together as a single structural unit. The steel deck provides tensile strength, while the concrete provides compressive strength—a perfect marriage of materials.
The mechanical bond between the steel floor deck and concrete is achieved through the deck's profile geometry. Re-entrant or dovetail profiles create an interlock with the cured concrete, while embossments on the steel surface further enhance the bond. Shear studs welded through the deck into the supporting steel beams transfer horizontal shear stresses between the steel beam and the concrete slab, ensuring full composite action.
This composite system delivers floors with exceptional strength-to-weight ratios. According to the Steel Deck Institute (SDI), which provides uniform industry standards for the engineering, design, manufacture, and field usage of steel decks, properly designed composite floor systems can achieve fire resistance ratings of up to four hours. The SDI's Floor Deck Design Manual (FDDM2), which incorporates the requirements of the 2017 ANSI/SDI Design Standards and complies with the 2018 and 2021 International Building Code, provides engineers with authoritative guidance on maximizing these structural benefits.
Research has demonstrated that composite floor systems can achieve fundamental frequencies between 4.4 and 4.5 Hz and maximum load-carrying capacities between 9.0 and 9.87 kN/m², which is acceptable for most building applications. This performance makes steel floor deck suitable for everything from office buildings to data centers to high-rise residential towers.
One of the most compelling reasons for adopting steel floor deck in steel structure construction is its long-span capability. Trapezoidal profiles, in particular, produce composite slabs with higher span capability, reducing the number of intermediate steel supports required.
ArcelorMittal's Cofraplus® 80, for example, can achieve unpropped spans of up to 4.5 meters and spans exceeding 6.5 meters with props. The TR60+ composite floor deck delivers unpropped spans in excess of 3.5 meters with S350 and S450 grade steel. Even more impressive, some innovative systems like TekDek have achieved clear unpropped spans of 10.5 meters.

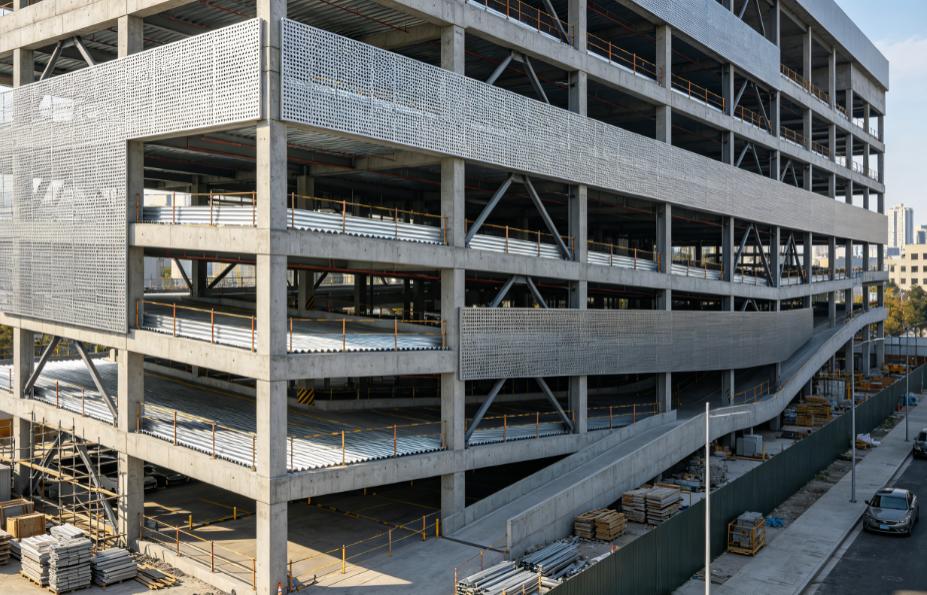

This span capability translates directly into more flexible interior layouts. Open-plan office spaces, column-free car parks, and uninterrupted retail floors become possible without the obstruction of intermediate columns. Architects gain the freedom to design spaces that were previously unattainable with conventional flooring systems.
Steel floor deck systems are remarkably lightweight. A typical Cofraplus® 60 deck manufactured from 0.75 mm gauge steel weighs approximately 8.89 kg/m². The TR60+ profile weighs between 10.03 and 13.33 kg/m² depending on gauge.
When compared to prefabricated concrete slab solutions, steel floor deck can achieve weight reductions of up to 30%. This weight reduction has a cascading effect: lighter floors mean lighter steel beams, lighter columns, and lighter foundations. The reduced self-weight minimizes the load on the entire steel structure, allowing for material savings across the entire building frame.
Beyond supporting floor loads, steel floor deck contributes to the overall stability of steel structures. The deck acts as a horizontal wind brace, transmitting wind loads back to walls or columns through diaphragm action. This means the deck is not merely a floor surface but an integral part of the building's lateral load-resisting system. This dual function—serving both as floor and as structural diaphragm—eliminates the need for separate bracing systems, further reducing material and labor costs.
Time is money in construction, and steel floor deck delivers both. The system eliminates the need for traditional formwork and temporary propping in many applications. Instead of waiting days for formwork to be erected and stripped, contractors can lay steel deck sheets directly onto steel beams and pour concrete almost immediately.

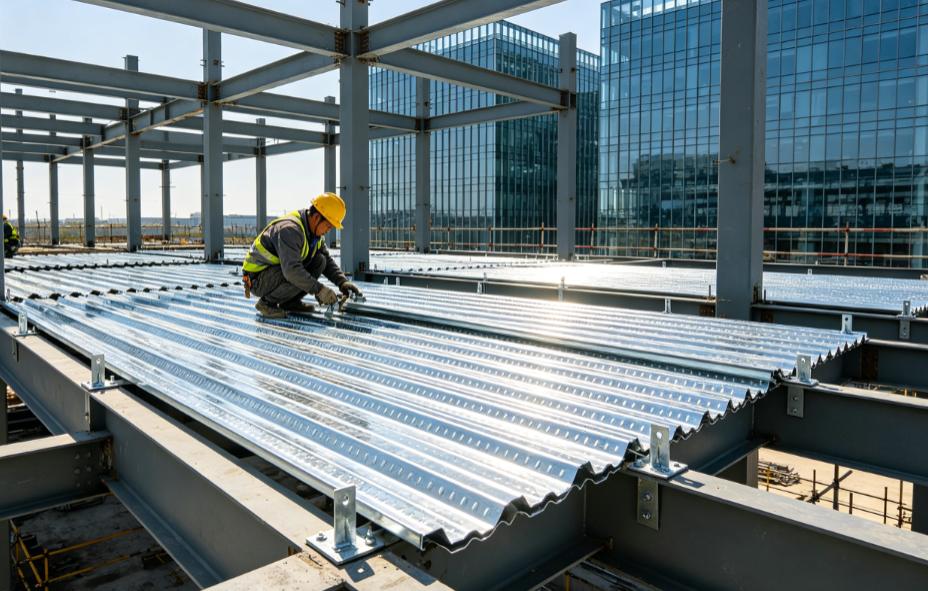

The construction speed is remarkable. A single two-man team can lay in excess of 400 m² of composite floor deck per day. Large floor areas can be craned into position rapidly, reducing crane time and labor costs. According to industry data, accelerated construction timelines can reduce overall project duration by up to 25%. Some innovative panelized systems have demonstrated the ability to build 30% to 50% faster than traditional floor systems.
The TR60+ profile, with its 1,000 mm cover width, can cover the same floor area with up to one-third fewer sheets compared to standard 600 mm profiles. Fewer sheets mean fewer joints, fewer fixings, less handling, and significantly faster installation. This installation efficiency is particularly valuable on large composite floor plates where speed and productivity are critical.
The labor savings associated with steel floor deck are substantial. Traditional concrete flooring systems require extensive formwork, rebar placement, and curing time—all of which demand significant on-site labor. Steel floor deck, by contrast, can be installed quickly by smaller crews. One crew of six people has been documented placing up to 30,000 square feet of flooring in a single day.
Because the steel deck serves as a safe working platform immediately after installation, follow-on trades can begin work sooner. Electricians, plumbers, and HVAC installers can access the floor sooner, further compressing the construction schedule.
Perhaps the most direct cost saving from steel floor deck is the elimination of temporary formwork and propping systems. Traditional cast-in-place concrete floors require extensive falsework—temporary supports that must be erected, maintained, and eventually dismantled. Steel floor deck serves as permanent formwork, remaining in place as an integral part of the finished floor.
The cost of temporary works can represent a significant portion of a project's budget. By eliminating this expense entirely, steel floor deck delivers immediate and tangible cost savings. Moreover, the reduced floor self-weight minimizes the load on steel beams and columns, reducing steel consumption across the entire steel structure.
Open Type Floor Decking HY51-250-750 - HongYe
Fire safety is a paramount concern in modern steel structure construction, and steel floor deck performs admirably in this regard. The composite concrete-steel slab system provides inherent fire resistance that meets or exceeds building code requirements.
Depending on slab thickness and concrete type, composite steel deck floors can achieve fire resistance ratings of 60, 90, or even 120 minutes. Some systems can withstand fire for up to four hours. Crucially, many steel floor deck systems achieve these ratings with zero soffit protection—meaning no additional fireproofing material is required on the underside of the deck.
This fire resistance is achieved through the thermal properties of the concrete slab and the protective effect of the steel deck's geometry. The concrete absorbs heat, while the profiled steel maintains its structural integrity through the fire exposure period.
The fire performance of steel deck systems is well-documented. The Steel Deck Institute and Steel Joist Institute have jointly released industry-average Environmental Product Declarations (EPDs) that quantify the life cycle environmental impacts of steel deck, providing architects and engineers with transparent data for building certification programs. These EPDs are based on peer-reviewed life cycle assessments and can assist in achieving credits within LEED and other green building rating programs.
Sustainability has become a driving force in construction material selection, and steel floor deck excels in this area. Steel is one of the most recycled materials on earth, and steel deck products reflect this reality.
Vulcraft, a division of Nucor and a major steel deck manufacturer, produces steel products made from an average of 77.3% recycled content, with some products containing nearly 100% recycled content. Their deck products average 60.6% recycled content. Kingspan's LEC (Lower Embodied Carbon) Structural Steel is made with 75% recycled content and demonstrates a 66% reduction in embodied carbon in the product stage.
At the end of a building's service life, steel joists and deck can be fully recycled and the material used to construct another building, manufacture an automobile, or become a home appliance. This circular economy approach makes steel floor deck one of the most environmentally responsible flooring options available.
The carbon footprint of steel floor deck is being continuously reduced through manufacturing innovations. Electric Arc Furnace (EAF) steel production, which uses recycled scrap steel, produces approximately one-third of the CO₂ emissions of traditional blast furnace steel.
Some manufacturers have achieved verified embodied carbon figures as low as 733 kg CO₂e per tonne of steel coil—approximately 75% less than standard blast furnace steel. An Environmental Product Declaration for galvanized steel floor decking reports a Global Warming Potential of 0.818 kg CO₂e per kg (A1-A3). Cofraplus® 80 offers a weight reduction of up to 30% compared to precast slabs and reduces CO₂ emissions by 15%.
Steel floor deck contributes to green building certification in multiple ways. Products contain pre-consumer and post-consumer recycled content, are recyclable after use, and contribute to LEED 2009 and LEED v4 credits. The availability of industry-average EPDs for steel deck allows design professionals to transparently compare steel with other building materials when considering which material to use for their projects.
Modern architecture demands flexibility, and steel floor deck delivers. Composite floor systems allow for irregular shapes, curves, and special floor openings that would be difficult or impossible with precast concrete systems. The steel deck can be cut and formed on-site to accommodate complex geometries, giving architects the freedom to realize their visions.
The versatility of these decks supports the trend toward open-plan designs in both office and residential buildings. Long-span capabilities mean fewer columns, which translates to more usable floor space and greater design flexibility.
Steel floor deck profiles are designed with service integration in mind. The dovetail or re-entrant shapes allow for the easy fitting of service installations, including electrical conduits, plumbing, and HVAC systems. Some profiles are designed with soffit wedge nut fixings with load capacities up to 1 kN, enabling the easy suspension of ceiling systems and building services.
The deck also provides a built-in ceiling and service mounting system. This integration reduces the need for separate ceiling grids or service support structures, saving both material and labor.
While steel structures have historically been associated with acoustic challenges, modern steel floor deck systems have addressed this concern effectively. Acoustic performance with Rw-values ranging from 46 dB to 53 dB has been approved for some systems. The combination of concrete slab, steel deck, and appropriate acoustic treatments can achieve the sound insulation required for residential, office, and hospitality applications.
The widespread adoption of steel floor deck is underpinned by a robust framework of industry standards. The Steel Deck Institute (SDI) provides uniform industry standards for the engineering, design, manufacture, and field usage of steel decks. The SDI's publications, including the Floor Deck Design Manual (FDDM2), are authoritative references that provide architects, engineers, and construction professionals with detailed information on design criteria, structural analysis, attachment methods, and diaphragm design.
The American Institute of Steel Construction (AISC) provides additional guidance, including Design Guide #11 on "Floor Vibrations Due to Human Activity," ensuring that steel floor deck systems are designed for occupant comfort as well as structural performance.
The ANSI/SDI C1.0 Standard for Composite Steel Floor Deck establishes the requirements for composite steel floor deck design and construction. These standards ensure consistency, quality, and safety across the industry, giving owners, architects, and engineers confidence in the performance of steel floor deck systems.
The sustained growth of the steel floor deck market is driven by robust expansion in global construction activity, particularly in commercial and industrial infrastructure. The rising number of high-rise buildings, data centers, and large-scale industrial facilities necessitates flooring systems that offer speed of construction and structural efficiency.
The broader steel structure market reflects this growth. The global steel structure market is projected to grow from USD 124.72 billion in 2025 to USD 131.59 billion in 2026 at a CAGR of 5.5%. The global prefabricated building and structural steel market reached USD 260.6 billion in 2025 and is expected to reach USD 405.5 billion by 2034.
While North America, with the U.S. market valued at USD 1.3 billion in 2025, remains a dominant region for composite metal floor decking, the Asia-Pacific market—led by China's rapid urbanization—is projected to witness the highest growth rate. Urbanization trends and government investments in infrastructure development across emerging economies are amplifying demand.
The steel floor deck industry continues to innovate. Key players such as Tata Steel, Kingspan, Nucor (Vulcraft), and ArcelorMittal are developing advanced coatings, optimized designs, and lower-carbon products to strengthen their market positions. Innovations in high-yield steel, advanced corrosion-resistant coatings, and panelized systems are further enhancing the performance and longevity of steel floor deck.
The widespread adoption of steel floor deck in modern steel structure construction is no accident. It is the result of a convergence of structural, economic, and environmental advantages that no alternative flooring system can match.
From a structural perspective, steel floor deck delivers exceptional strength-to-weight ratios, long-span capabilities, and integral diaphragm action that contributes to overall building stability. From an economic standpoint, it reduces construction timelines by up to 25%, eliminates expensive temporary works, and minimizes labor costs through rapid installation. From an environmental angle, it incorporates high recycled content, reduces embodied carbon, and supports green building certification.
Architects gain design freedom with irregular shapes and long spans. Engineers gain a predictable, well-documented structural system backed by robust industry standards. Contractors gain speed and efficiency. Building owners gain cost savings and sustainable credentials. And occupants gain safe, comfortable, and flexible spaces.
As the global construction industry continues to urbanize, densify, and decarbonize, the role of steel floor deck in steel structure construction will only grow. The numbers already show the trajectory: from USD 5.2 billion in 2025 to USD 8.1 billion by 2034. The question is not whether steel floor deck will be adopted in future steel structure projects, but rather how its capabilities will continue to expand and evolve to meet the challenges of tomorrow's built environment.
For architects, engineers, contractors, and building owners alike, steel floor deck represents not just a product choice, but a strategic decision to build better, faster, and more sustainably. It is, quite simply, the foundation of modern steel structure construction.
