Every year, corrosion consumes approximately 3-4% of global GDP. For the construction industry, this translates into billions of dollars in maintenance, repair, and premature replacement of steel structures. Bridges rust. Roofs corrode. Industrial facilities deteriorate. And at the heart of this multi-billion-dollar problem lies a simple chemical reaction: iron + oxygen + moisture = rust.
For decades, the construction industry has relied on two primary solutions to combat steel corrosion: hot-dip galvanizing (zinc coating) and aluminum-zinc alloy coatings (such as 55% Al-Zn). These coatings have served the industry well, but they come with limitations. Galvanized steel, while effective, eventually succumbs to corrosion—especially at cut edges, bent sections, and in aggressive environments like coastal areas or industrial zones. Aluminum-zinc coatings offer better barrier protection but lack the sacrificial protection that zinc provides at scratches and cut edges.
Enter Zn-Al-Mg coating—a next-generation metallic coating that combines the best of both worlds and adds something entirely new: self-healing properties that keep steel protected for decades.
This article explores the "magic" of Zn-Al-Mg coating, how it transforms the durability of C Shaped Steel and other steel structure components, and why it's rapidly becoming the new standard for corrosion protection in construction.
C Type Channel Steel Purlin Light Weigh Galvanized Profiles
Zn-Al-Mg (Zinc-Aluminum-Magnesium) coating is a hot-dip metallic coating applied to steel sheets. The coating composition typically consists of approximately 90-95% zinc, with 3.5-11% aluminum and 1.5-3% magnesium, though exact formulations vary by manufacturer. Leading products in this category include ZAM® (developed by Nippon Steel), Magnelis® (by ArcelorMittal), and ZMAG™ (by U.S. Steel), each with slightly different proprietary compositions.
The addition of aluminum and magnesium to the zinc coating fundamentally changes how the coating performs. ASTM International has established a formal specification for this material—ASTM A1046/A1046M, Standard Specification for Steel Sheet, Zinc-Aluminum-Magnesium Alloy-Coated by the Hot-Dip Process—recognizing Zn-Al-Mg as a distinct and important category of coated steel.
But what makes this coating truly revolutionary is not just its composition—it's the way the three elements work together to create protection that exceeds the sum of its parts.
To understand why Zn-Al-Mg is such a breakthrough, it helps to understand the limitations of conventional coatings.
Hot-dip galvanized (GI) steel relies on a pure zinc coating that provides two types of protection: barrier protection (the coating physically separates steel from the environment) and sacrificial protection (zinc corrodes preferentially to steel, protecting the underlying metal even at scratches). However, zinc's corrosion products—primarily porous zinc hydroxide—offer limited long-term protection, and galvanized steel can show red rust after relatively modest exposure in aggressive environments.
55% Al-Zn alloy coated steel (such as Galvalume) offers excellent barrier protection thanks to its aluminum content, which forms a dense, stable oxide layer. However, it provides limited sacrificial protection at cut edges and scratches, meaning that once the coating is breached, corrosion can spread rapidly.
Zn-Al-Mg coating addresses the shortcomings of both systems through a synergistic combination:
Zinc provides the sacrificial protection that galvanized steel is known for. When the coating is scratched or cut, zinc corrodes preferentially, protecting the underlying steel.
Aluminum forms a dense, stable oxide layer that provides excellent barrier protection against oxygen and moisture. This is the same mechanism that makes aluminum-zinc coatings so effective.
Magnesium is the game-changer. Magnesium promotes the formation of a very fine, dense protective film on the coating surface. More importantly, magnesium plays a critical role in the self-healing mechanism that sets Zn-Al-Mg apart from all previous coatings.
When a Zn-Al-Mg coated surface is scratched or cut, magnesium ions migrate to the damaged area and react with the environment to form stable, adherent corrosion products—primarily layered double hydroxides (LDHs) such as Mg₆Al₂(OH)₁₆CO₃ and magnesium hydroxide. These compounds form a protective barrier that "heals" the damage, preventing further corrosion from spreading.
The result is a coating that provides both excellent barrier protection and superior sacrificial protection—a combination that no previous coating system has achieved with the same effectiveness.
The performance advantages of Zn-Al-Mg coating are not marketing claims—they are documented through rigorous testing.
Salt Spray Testing: In standardized salt spray tests (JIS Z 2371), Zn-Al-Mg coated steel demonstrates dramatically superior performance. One study found that increasing the magnesium concentration in Zn-Al-Mg coated steel improved corrosion resistance to more than 10 times that of conventional galvanized steel. Zn-Al-Mg coatings can withstand over 3,000 hours in salt spray tests without developing red rust, guaranteeing decades of service life—30 years or more—without the corrosion that plagues conventional options.
Flat Surface Corrosion: On flat surfaces, Zn-Al-Mg has better resistance to red rust than both galvanized steel and 55% Al-Zn alloy coated steel. After 2,500 hours of salt spray testing, Zn-Al-Mg specimens show no red rust, while galvanized steel shows significant corrosion.
Cut Edge Protection: Perhaps most impressive is Zn-Al-Mg's performance at cut edges—traditionally the weakest point of any coated steel. Zn-Al-Mg shows better red-rust resistance on cut edges than any other coated steel sheet. In outdoor exposure tests, the cut edges of Zn-Al-Mg become covered with a protective film over time, actually improving their appearance and protection.
Bent and Drawn Sections: Unlike some coatings that crack or lose integrity when formed, Zn-Al-Mg maintains excellent corrosion resistance even in bent sections and drawn parts. This is critical for products like C Shaped Steel, which undergoes significant forming during manufacturing.
Real-World Exposure: In approximately seven years of outdoor exposure testing, Zn-Al-Mg was found to be four times as corrosion-resistant as galvanized steel sheet. ArcelorMittal's Magnelis® product offers at least three times better corrosion resistance than galvanized steel in external applications.
One of the most remarkable aspects of Zn-Al-Mg coating is that it achieves superior performance with significantly less coating material.
Nippon Steel's ZAM™ product demonstrates that with only one-sixth (1/6) of the coating weight of post hot-dip zinc-coated steel sheets, ZAM exhibits corrosion resistance equal to or better than the heavier coating. For example, a ZAM coating of 90/90 g/m² performs comparably to a post hot-dip galvanized coating of 560/560 g/m².
This efficiency has profound implications: less zinc and other metals are required to achieve superior protection, reducing both material costs and the environmental footprint of the coating process.
The self-healing property of Zn-Al-Mg coating is perhaps its most remarkable feature. But how does it actually work?
When a Zn-Al-Mg coated steel surface is damaged—whether through scratching, cutting, or bending—the exposed steel surface would normally begin to corrode. In conventional galvanized steel, the zinc provides some sacrificial protection, but the corrosion products that form are porous and offer limited long-term protection.
In Zn-Al-Mg coatings, the presence of magnesium changes this dynamic fundamentally. When the coating is damaged, magnesium ions are released from the coating and migrate to the damaged area. There, they react with the environment to form dense, adherent corrosion products—primarily layered double hydroxides (LDHs) and magnesium hydroxide.
These compounds are remarkable for several reasons:
They are dense and impermeable, unlike the porous corrosion products of pure zinc
They suppress ionic transport, preventing corrosive agents from reaching the steel substrate
They have an interlocking, plate-like morphology that creates a strong, durable barrier
They form not just on flat surfaces but also at cut edges and bent sections
The self-healing mechanism is so effective that Zn-Al-Mg coated products can eliminate the need for post-cutting treatments—a significant cost and time savings in fabrication.
C Shaped Steel (also known as C-channel, C-purlin, or C-section) is a cold-formed structural steel profile widely used in steel structure construction. Its C-shaped cross-section makes it ideal for roof purlins, wall girts, floor joists, and secondary framing in buildings of all types.
But C Shaped Steel presents unique corrosion challenges:
Forming stresses: The cold-forming process creates residual stresses and can damage surface coatings
Cut edges: Every piece of C Shaped Steel is cut to length, creating exposed edges that are vulnerable to corrosion
Bent sections: The bending operations required to create the C shape can cause coating micro-cracking
Varied environments: C Shaped Steel is used in everything from dry warehouses to coastal industrial facilities
Zn-Al-Mg coating addresses each of these challenges:
Formability: Zn-Al-Mg coated steel offers excellent formability, allowing bending, stamping, and complex shaping operations while maintaining coating integrity and minimizing the risk of cracking or delamination. This makes it ideal for precisely formed components like C Shaped Steel purlins.
Cut Edge Protection: The self-healing properties of Zn-Al-Mg are especially valuable for C Shaped Steel, where every piece has cut edges. The coating's ability to form protective films at cut edges eliminates the need for post-cutting treatments.
Bent Section Protection: Zn-Al-Mg maintains excellent corrosion resistance even in bent sections, ensuring that the bends and curves of C Shaped Steel remain protected.
Long Service Life: Products made from Zn-Al-Mg coated steel can have a service life of over 50 years. For steel structure buildings, this translates to reduced maintenance, fewer replacements, and lower life-cycle costs.
One of the fastest-growing applications for Zn-Al-Mg coated C Shaped Steel is in solar photovoltaic mounting systems. Solar farms are typically located in open, exposed environments where corrosion protection is critical.
Zn-Al-Mg coated C Shaped Steel is now the material of choice for many solar mounting systems. These systems must withstand high wind loads (up to 46 m/s) and heavy snow loads (up to 3.6 kN/m²) while maintaining structural integrity for decades. Zn-Al-Mg coating provides the corrosion resistance needed to achieve these demanding performance requirements.
Solar mounting systems made from Zn-Al-Mg coated steel also benefit from the material's 100% recyclability and smaller environmental footprint compared to batch galvanized alternatives.

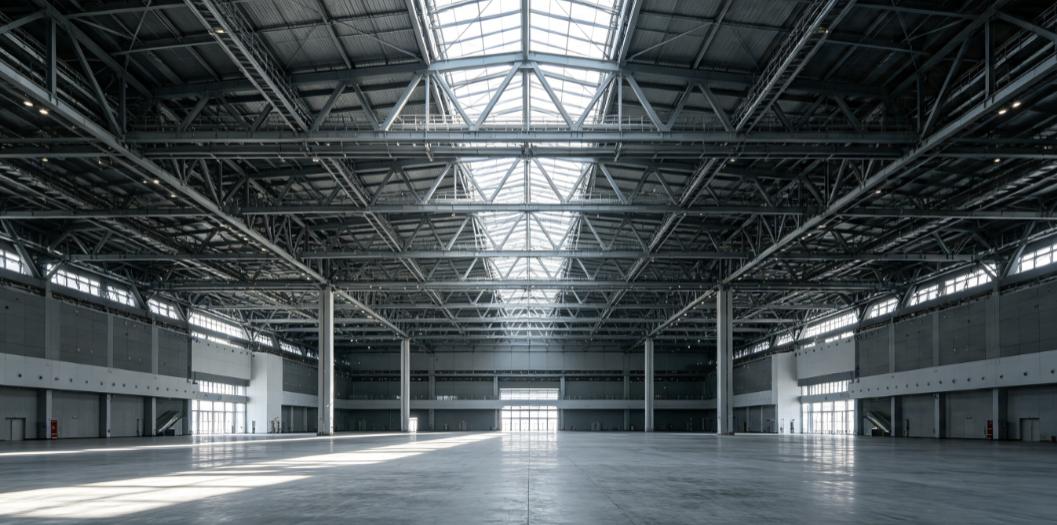

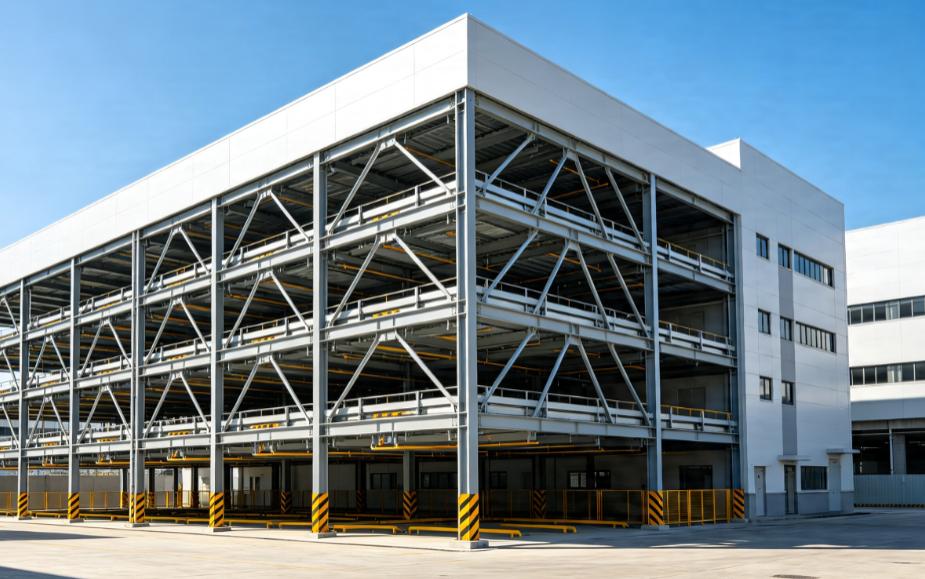

In industrial and commercial steel structure construction, Zn-Al-Mg coated C Shaped Steel is used for roof purlins, wall girts, and secondary framing. The extended service life—over 50 years in many applications—means buildings require less maintenance and fewer repairs over their operational life.
Agricultural buildings, livestock housing, and greenhouse structures benefit from Zn-Al-Mg's resistance to the corrosive environments created by animal waste, fertilizers, and humidity. Infrastructure applications include safety barriers, lighting poles, road signs, and bridge parapets.
Zn-Al-Mg coated steel typically has a higher initial material cost than conventional galvanized steel—approximately 10-20% higher. However, this higher upfront cost must be weighed against the significant life-cycle savings.
Zn-Al-Mg coatings extend steel lifespan by 25-35 years, reducing maintenance costs by up to 45% and lowering life-cycle carbon emissions. The extended service life eliminates the need for early replacement, while the self-healing properties minimize the need for repairs and touch-ups.
One analysis found that while Zn-Al-Mg coated steel increased material costs by approximately 9% compared to conventional galvanized steel, this difference was reduced to about 5% when labor costs were factored in—demonstrating that the choice of Zn-Al-Mg coating can be competitive in overall terms.
Zn-Al-Mg coated steel offers several sustainability advantages:
Reduced Material Use: Because Zn-Al-Mg achieves superior corrosion resistance with less coating weight (as little as 1/6 the coating weight of conventional galvanizing), less zinc and other metals are consumed.
Longer Service Life: Extended service life means fewer replacements over time, reducing the overall material demand.
100% Recyclability: Zn-Al-Mg coated steel is fully recyclable at end of life.
Elimination of Post-Fabrication Galvanizing: The superior cut-edge protection of Zn-Al-Mg eliminates the need for post-fabrication galvanizing, which is both energy-intensive and environmentally impactful.
Eco-Friendly Processes: Many Zn-Al-Mg products are produced using chromium-free processes, aligning with sustainable project goals.
The growing importance of Zn-Al-Mg coating is reflected in the development of formal standards. ASTM A1046/A1046M provides the specification for steel sheet coated with zinc-aluminum-magnesium alloy by the hot-dip process. European standard EN 10346 covers continuously hot-dip coated steel flat products, including Zn-Al-Mg coated grades.
These standards ensure that Zn-Al-Mg coated products meet consistent quality and performance requirements, giving specifiers and engineers confidence in the material.
The construction industry is increasingly recognizing Zn-Al-Mg coating as the new standard for corrosion protection. Its combination of superior corrosion resistance, self-healing properties, material efficiency, and sustainability benefits makes it an ideal choice for a wide range of applications.
For C Shaped Steel and other steel structure components, Zn-Al-Mg coating represents a significant advancement. It addresses the traditional weaknesses of coated steel—cut edges, bent sections, and long-term durability—while offering environmental and economic benefits that align with the industry's sustainability goals.
As more architects, engineers, and contractors specify Zn-Al-Mg coated steel, we can expect to see longer-lasting buildings, reduced maintenance costs, and lower environmental impact across the built environment.
The "magic" of Zn-Al-Mg coating is not magic at all—it's sophisticated materials science. By combining zinc, aluminum, and magnesium in precisely engineered proportions, metallurgists have created a coating that protects steel better, lasts longer, and uses fewer resources than any previous solution.
For C Shaped Steel and steel structure construction, Zn-Al-Mg coating offers a compelling value proposition: decades of rust-free service, dramatically reduced maintenance, and a smaller environmental footprint. The numbers speak for themselves—3 to 10 times better corrosion resistance, up to 50-year service life, and coating efficiency that uses one-sixth the material of conventional galvanizing.
The next time you see a steel building, a solar farm, or an industrial facility, consider the invisible protection that keeps it standing. Increasingly, that protection is Zn-Al-Mg—the next-generation coating that's turning the corrosion problem into a solved problem.
