Imagine taking a piece of ordinary sheet steel—the kind that might feel soft and pliable under your hands—and bending it into a C-shaped channel. Something remarkable happens at the microscopic level. The steel doesn't just change shape; it transforms. Its internal structure rearranges, defects multiply, and the material emerges significantly stronger than when it started. This is the alchemy of cold working, and it's one of the most elegant and underappreciated phenomena in materials science.
C Type Channel Steel Purlin Light Weigh Galvanized Profiles
For engineers and builders working with steel structure systems, this transformation is not merely an academic curiosity—it's a practical reality that shapes how we design buildings, bridges, and industrial facilities. When we talk about c shaped steel—those ubiquitous C-channels and C-purlins that form the skeleton of countless structures—we're talking about a material whose strength has been literally forged through bending at room temperature. This article explores the science behind cold-work strengthening, its application to C-shaped steel sections, and why this matters for modern construction.
To understand why bending steel makes it stronger, we need to zoom in to the atomic scale. Steel, in its simplest form, is a crystalline material. Its atoms arrange themselves in a regular, repeating lattice—think of a perfectly stacked grid of marbles. This orderly arrangement gives steel its initial strength, but it also leaves room for improvement.
When steel is deformed at room temperature—whether through rolling, bending, or pressing—the atoms in this crystal lattice are forced to slide past one another. This sliding doesn't happen smoothly; it creates imperfections in the lattice called dislocations. A dislocation is essentially a line defect in the crystal structure, a place where the orderly arrangement of atoms is disrupted.
Here's the key insight: as more dislocations are introduced through cold working, they begin to interact with each other. They tangle, pile up, and create barriers that prevent further atomic motion. This is known as dislocation strengthening—the more dislocations you have, the harder it becomes for the material to deform further. The steel essentially becomes "tougher" because its internal structure has become more complex and resistant to flow.
But dislocation strengthening is only part of the story. Cold working also promotes grain refinement. Steel is composed of countless microscopic crystals, or grains. When the material is plastically deformed at room temperature, these grains are broken down and subdivided into smaller units. The grain boundaries—the interfaces between individual crystals—act as additional barriers to dislocation motion. Smaller grains mean more grain boundaries, which means greater resistance to deformation. Research has shown that cold working, combined with controlled thermal cycles, can produce fine-grained structures that result in approximately 16% increases in tensile strength and 20% increases in hardness.
This dual mechanism—dislocation strengthening and grain refinement—is what makes cold working such a powerful tool for enhancing steel's mechanical properties.
The strengthening effect of cold working is not subtle. Depending on the steel grade, the amount of deformation, and the specific processing conditions, the increases can be dramatic.
Classic research on cold-formed steel members has documented that cold-forming can cause significant increases in both tensile and compressive yield strength in light-gage steel sections. The cumulative effects of cold working can raise yield strength to as much as 70% above the virgin yield strength of the as-rolled sheet steel. In practical terms, a piece of steel that started with a yield strength of 250 MPa might emerge from the cold-forming process with a yield strength approaching 425 MPa—without any heat treatment, without any alloying additions, simply through the mechanical work of bending.
The effect is most pronounced in the corners of cold-formed sections. When steel is bent around a tight radius, the plastic deformation is most intense at the bend. This concentrated deformation creates the highest dislocation densities and the most significant grain refinement in these regions. Consequently, the yield strength of corners is always considerably higher than that of any other portion of a cold-formed member. Studies have found that the yield strength of corner regions can be 79 to 86 MPa higher than flat regions—an increase of 23% to 25%. In some cases, the enhancement can be even more dramatic, with corner yield strengths reaching up to 100% above the original material strength.
To put these numbers in perspective: a typical cold-formed c shaped steel section might have flat portions with a yield strength around 350 MPa, while the corners at the bends could exceed 500 MPa. This non-uniform strength distribution is a direct consequence of the cold-working process and represents a form of internal "engineering" that occurs automatically during fabrication.
The transformation from flat steel sheet to c shaped steel is a marvel of modern manufacturing. The process typically begins with large coils of steel—often galvanized for corrosion resistance—that are fed through a series of roll-forming stations. Each station progressively bends the flat strip, gradually shaping it into the familiar C-channel profile.
This is cold forming in its purest form: the steel is shaped at or near room temperature, without the application of heat. The deformation occurs through a combination of bending and stretching, with the material undergoing significant plastic strain. The most intense deformation happens at the corners (the bends of the "C"), where the steel is forced to flow around tight radii.
The roll-forming process is continuous and highly efficient, capable of producing long lengths of c shaped steel with precise dimensional accuracy. The resulting sections are lightweight yet strong, with a high strength-to-weight ratio that makes them ideal for a wide range of structural applications.
But the process does more than just shape the steel—it strengthens it. The plastic deformation introduced during roll-forming creates the dislocation networks and grain refinement we discussed earlier. The steel emerges from the forming line not just with a new shape, but with enhanced mechanical properties that are built into the material itself.
The enhanced strength of cold-formed c shaped steel makes it an indispensable component in modern steel structure construction. These sections are everywhere—often hidden from view but performing critical structural functions.

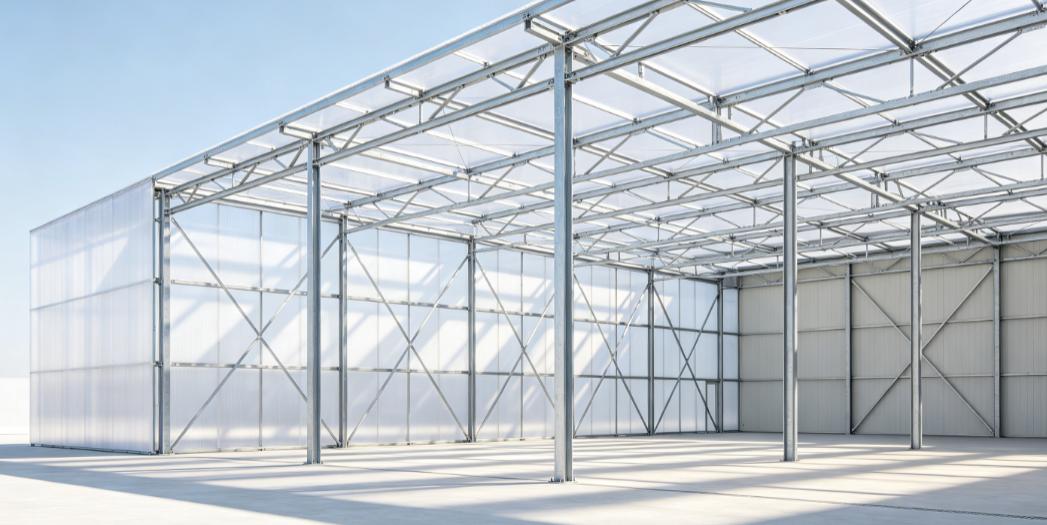

C-shaped steel sections are used primarily as basic beam elements in frame steel halls. They serve as purlins—the secondary roof members that support roofing and cladding against wind and snow loads. In this role, the enhanced yield strength from cold working allows designers to use thinner sections or achieve greater spans, reducing material consumption without compromising structural integrity.
Beyond roofing, c shaped steel finds application in:

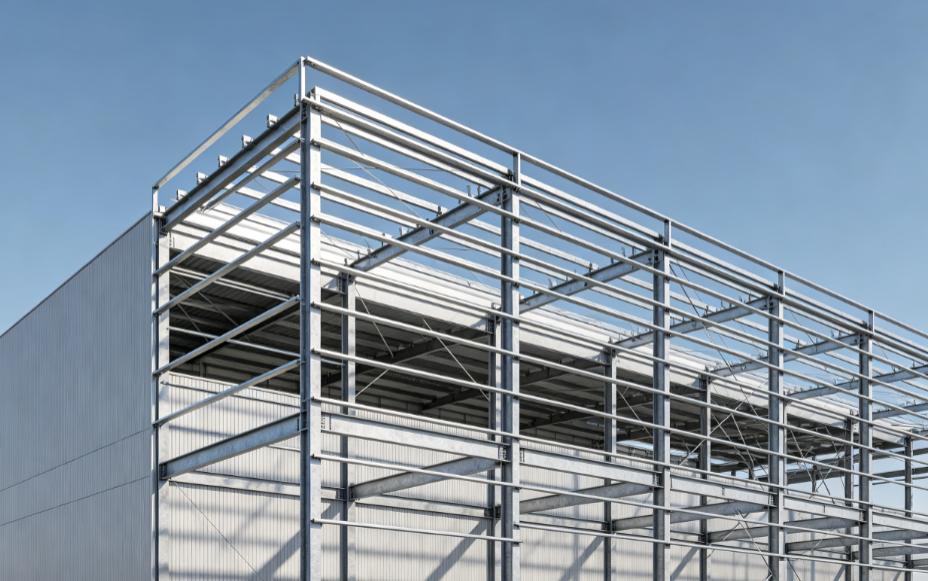

Wall systems: As girts and framing members for both exterior and partition walls

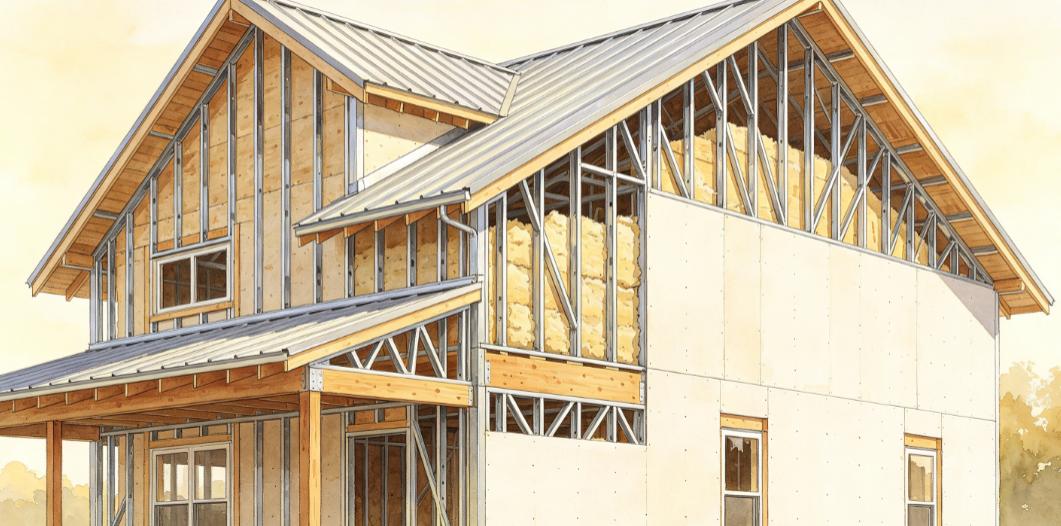

Floor systems: In cold-formed steel joists for residential and commercial buildings
Hanger systems: Double-limb C-shaped steel configurations have been successfully used in tall industrial plants, where they demonstrate excellent bearing capacity and stiffness
Composite construction: C-shaped profiles combined with concrete in flooring systems, reducing material consumption and weight
Secondary framing: As side rails and secondary members in steel buildings
The versatility of c shaped steel stems from its combination of properties: it's strong enough to bear significant loads, light enough to handle and transport easily, and adaptable enough to be cut, drilled, and connected using standard fasteners. The cold-working process that creates these sections also makes them economical—no expensive heat treatment is required, and the continuous roll-forming process is highly efficient.
No engineering solution comes without trade-offs, and cold working is no exception. The same mechanisms that increase strength—dislocation tangles and grain refinement—also tend to decrease ductility. Ductility is the material's ability to deform plastically before fracture, and it's crucial for structural safety. A ductile material gives warning before failure; a brittle one does not.
When steel is cold-worked, the dislocations that strengthen it also make it harder for the material to flow. The steel becomes stronger but less able to absorb energy through plastic deformation. This is why cold-formed steel members require careful design consideration—engineers must account for the reduced ductility, particularly in applications where the structure might be subjected to impact loads or seismic events.
Fortunately, the trade-off is manageable. The reductions in ductility associated with cold working are generally well understood and can be accommodated through appropriate design provisions. Standards such as the AISI S100 North American Specification for Cold-Formed Steel Structural Members provide detailed guidance for designing with cold-formed steel, accounting for the material's unique properties.
Moreover, the strength-ductility balance can be optimized through process control. By carefully managing the amount of deformation, the bend radius, and other processing parameters, manufacturers can tailor the mechanical properties of c shaped steel to specific applications.
The fact that cold forming increases steel strength has important implications for structural design. When engineers design with cold-formed c shaped steel, they can't simply use the properties of the virgin sheet steel—they must account for the strength enhancements that occur during forming.
The most significant enhancement occurs in the corners. As noted earlier, corner yield strengths can be 70% to 100% higher than the base material. This means that the strength of a c shaped steel section is not uniform—it varies across the cross-section, with the corners being the strongest regions.
Design standards address this through various approaches. The AISI S100 specification, for example, provides formulae to predict the yield strength of cold-formed corners based on the properties of the virgin material. These predictive models allow engineers to account for the strength enhancement in their calculations, ensuring that designs are both safe and efficient.
The enhanced corner strength also means that sections with a large ratio of corner area to total cross-sectional area will benefit most from cold-working strengthening. Conversely, sections with relatively little corner area may see less overall strength improvement. This is a consideration in section optimization—designers can choose profiles that maximize the beneficial effects of cold working.
The principles of cold-work strengthening are not new—they've been understood and exploited for over a century. But research continues to push the boundaries of what's possible. Advanced processing techniques, such as severe plastic deformation, can achieve even greater strength enhancements through extreme grain refinement.
In recent years, researchers have explored the combination of cold working with other strengthening mechanisms. For example, cold work introduced a high density of dislocations, which, combined with controlled phase transformations, promoted grain refinement and produced significant strength increases. These hybrid approaches—combining mechanical working with thermal or phase-based treatments—offer pathways to even stronger, more capable materials.
There's also growing interest in the environmental benefits of cold-formed steel. Because cold forming requires no heating, it's more energy-efficient than hot rolling or heat treatment. The high strength-to-weight ratio of cold-formed sections means less material is needed to achieve the same structural performance, reducing embodied carbon. As the construction industry seeks to reduce its environmental footprint, cold-formed c shaped steel offers a compelling combination of performance and sustainability.
There's something almost magical about the fact that a simple mechanical operation—bending steel at room temperature—can so dramatically enhance its strength. No heat, no chemicals, no exotic alloys—just the careful application of force to rearrange atoms and create a stronger material. This is the alchemy of cold working.

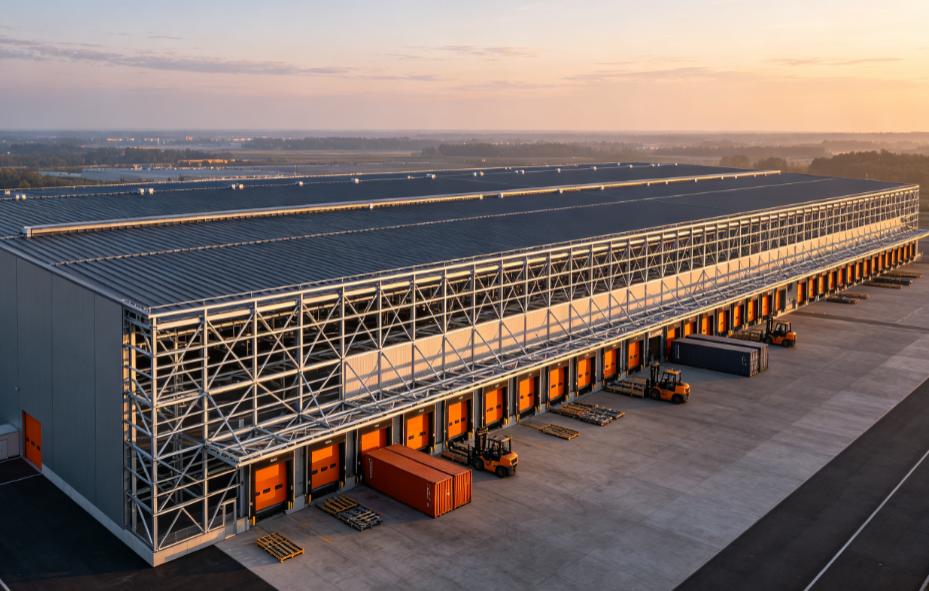

For the steel structure industry, this alchemy is a practical reality that enables lighter, stronger, more efficient buildings. C shaped steel sections, formed through this cold-working process, are the workhorses of modern construction—from the purlins that support roofs to the joists that carry floors, from the framing of warehouses to the hangers of industrial plants.
The next time you see a C-shaped steel section—perhaps as a roof purlin in a warehouse or as framing in a commercial building—consider the hidden transformation that occurred during its formation. The steel you're looking at is not the same material that started as a flat coil. Through the alchemy of cold working, it has become something stronger, more capable, and more valuable. It's a reminder that sometimes, the most profound improvements come not from adding something new, but from working with what we already have.
And that, perhaps, is the most elegant form of engineering there is.
