In the evolving landscape of modern construction, lightweight, high-strength, and cost-efficient building materials have become the primary pursuit of structural designers and construction engineers. Among all cold-formed steel building materials, c shaped steel has emerged as a staple component in contemporary steel structure engineering. Balancing exceptional durability and ultra-light structural weight, this specialized steel profile solves the core pain points of traditional steel materials, such as excessive self-weight, high construction costs, and insufficient adaptability. This in-depth guide explores the structural characteristics, professional performance advantages, standardized production, practical application values, and industry advantages of c shaped steel, providing professional and actionable references for construction practitioners, project developers, and industry learners.
Z Purlin Galvanized Steel Z Shape Purlin for Factory
c shaped steel is a standardized cold-formed thin-wall steel profile, named after its unique C-type cross-sectional structure. Different from traditional hot-rolled channel steel, it is processed through continuous cold bending forming of hot-rolled steel coils at room temperature, featuring a complete structural system composed of vertical webs, horizontal flanges, and inward curling edges. As a core secondary structural material in modern steel structure systems, c shaped steel strictly complies with global industry manufacturing standards, including China’s GB/T 6725-2017 cold-formed steel specification and the American ASTM A653 standard for galvanized steel sheets.
The mainstream raw materials for producing c shaped steel are Q235B and Q355B low-carbon structural steel, two widely recognized steel grades in the construction industry with stable chemical composition and reliable mechanical properties. The conventional thickness of finished products ranges from 1.5mm to 4mm, with customizable web height, flange width, and curling size to adapt to different engineering load requirements. Unlike heavy hot-rolled steel components, c shaped steel abandons redundant material stacking in the cross-section, concentrating steel materials on the stress-bearing parts, which lays a solid foundation for its lightweight and high-strength performance.

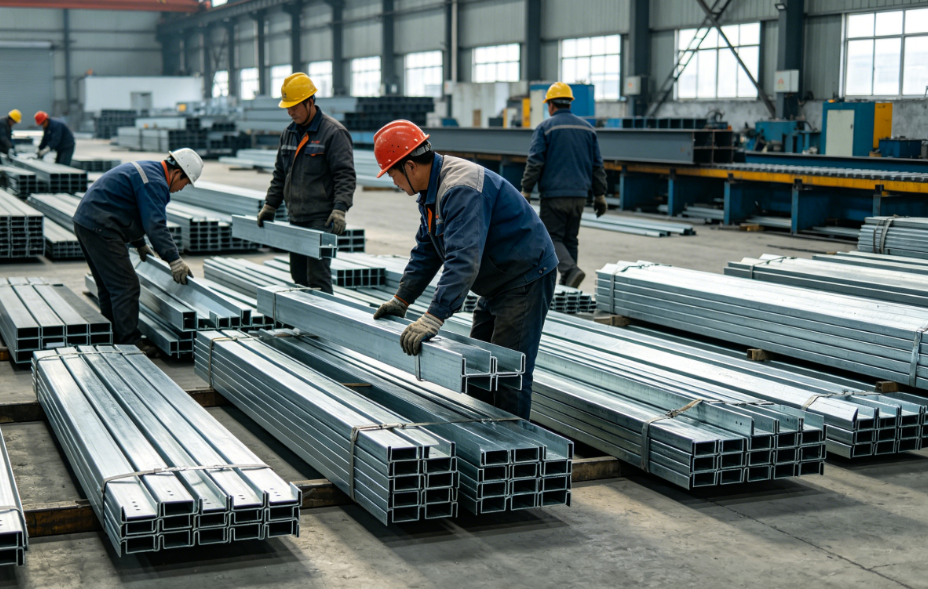

The fully automated production process of modern c shaped steel ensures high precision and consistency of finished products. The whole process includes coil uncoiling, surface leveling, impurity cleaning, multi-pass cold bending forming, CNC precision punching, fixed-length cutting, and surface anti-corrosion treatment. The whole production line operates continuously with a forming speed of 5 to 10 meters per minute, and the dimensional error of finished products is controlled within ±0.3mm, which fully meets the modular assembly requirements of modern steel structure construction.
The reason why c shaped steel can dominate the steel structure industry and replace traditional steel profiles lies in its two irreplaceable core advantages: scientific lightweight structural design and reliable long-term durability. These two performances complement each other, enabling it to maintain structural safety while optimizing project costs, which is the key to its wide promotion in global construction projects.
Lightweight is the most intuitive competitive advantage of c shaped steel. According to data from the International Steel Construction Association (ISCA), under the same load-bearing standard, cold-formed c shaped steel can save 30% to 50% of steel consumption compared with traditional hot-rolled I-beams and H-beams. Taking the common C150×50×20×2.0 specification as an example, its theoretical weight is only 4.2 kilograms per meter, while the traditional I10 I-beam with equivalent bearing capacity weighs 11.2 kilograms per meter, reducing the structural self-weight by more than 60%.
This significant weight reduction brings multiple economic benefits to steel structure projects. First, the reduced self-weight of the overall structure effectively lowers the bearing pressure on the building foundation, reducing the construction difficulty and material cost of foundation works by about 20% to 25%. Second, the lightweight feature simplifies transportation and on-site handling, reduces mechanical equipment investment and labor costs, and cuts the overall logistics and construction costs of the project. In addition, the high strength-to-weight ratio of c shaped steel maximizes material utilization. The yield strength of Q355B high-strength c shaped steel reaches 355MPa, which ensures that the lightweight transformation does not sacrifice structural stability and bearing capacity.
Moreover, the lightweight modular design of c shaped steel greatly shortens the construction cycle. All components are prefabricated in the factory and assembled on-site with bolts, avoiding complex on-site welding operations. Statistical data from engineering practice shows that the use of c shaped steel in steel structure projects can improve on-site construction efficiency by more than 50% compared with traditional steel materials, effectively shortening the project delivery cycle.
Durability is the core guarantee for c shaped steel to adapt to complex construction environments and long-term service requirements. Its excellent durability is reflected in mechanical stability and anti-corrosion performance, two key indicators that determine the service life of steel structure components. In terms of mechanical performance, the unique C-type cross-section with inward curling edges effectively enhances the torsional stiffness and shear resistance of the profile. Under external loads such as building dead load, wind load, snow load, and seismic load, c shaped steel can uniformly disperse structural stress, with the structural deflection strictly controlled within L/250 of the span, avoiding deformation and damage of components during long-term service.
In terms of anti-corrosion performance, most engineering-grade c shaped steel adopts hot-dip galvanizing surface treatment, which complies with the ISO 1461 international coating standard. The zinc layer thickness of finished products is stably maintained between 60μm and 120μm. Professional salt spray test data shows that hot-dip galvanized c shaped steel can resist red rust corrosion for more than 720 hours in a simulated marine and humid environment. In conventional outdoor industrial and civil construction scenarios, its service life can reach 25 to 30 years, far exceeding the service cycle of ordinary painted steel components.
Another major advantage of durable c shaped steel is ultra-low maintenance cost. Different from traditional steel structures that require regular rust removal and repainting every 2 to 3 years, the dense galvanized protective layer of c shaped steel has stable chemical properties, which can effectively isolate air, moisture, and corrosive substances from contacting the steel substrate. During the whole service life, it basically does not need manual maintenance, eliminating the long-term later maintenance cost of the project and improving the comprehensive benefit of steel structure engineering.
To fully reflect the application value of c shaped steel in steel structure engineering, it is necessary to compare it with several widely used traditional steel profiles, including I-beams, H-beams, Z-shaped steel, and square hollow steel sections. Each steel material has its own applicable scenarios, and the unique performance positioning of c shaped steel makes it the optimal choice for lightweight and medium-load structural projects.
Compared with traditional I-beams, c shaped steel has a more obvious lightweight advantage, with 40% to 60% lower self-weight under the same bearing capacity. Although I-beams have stronger bearing performance and are suitable for heavy-load main beam structures, they have high self-weight and high cost, and are not suitable for secondary structures such as roof purlins and wall beams. c shaped steel, with its lightweight and easy-to-install characteristics, perfectly matches the construction demand of building secondary structures, making up for the cost and efficiency shortcomings of I-beams in lightweight projects.
Compared with H-beams commonly used in heavy steel structures, c shaped steel has a 50% to 70% lower unit weight and a 25% lower comprehensive unit cost. H-beams are mostly used for main load-bearing components such as building columns and large-span main beams, while c shaped steel is more suitable for auxiliary supporting structures. The reasonable matching of the two can form a scientific steel structure system with heavy load-bearing and lightweight auxiliary, realizing the optimal balance of structural safety and project cost.
Compared with Z-shaped steel, another common cold-formed profile, c shaped steel has simpler structural mechanics and better torsional resistance. Z-shaped steel is suitable for super-long span roof projects due to its overlapping connection characteristics, while c shaped steel is more adaptable to conventional small and medium-span roofs, wall panels, and support structures, with wider universal applicability. In addition, the processing and installation difficulty of c shaped steel is lower, and the standardized component compatibility is stronger, which is more conducive to standardized and modular construction.
Compared with square hollow steel sections with good overall rigidity, c shaped steel has a 30% to 50% lighter weight and more convenient on-site connection. The closed structure of square hollow steel sections leads to high processing and connection difficulty, while the open C-type structure of c shaped steel is convenient for bolt assembly and on-site adjustment, with higher construction flexibility in practical engineering applications.
With the rapid development of prefabricated buildings and lightweight steel structure technology, the application scenarios of c shaped steel continue to expand, covering industrial construction, civil buildings, new energy engineering, warehousing and logistics, and municipal infrastructure fields. Its stable performance and high cost performance make it an indispensable core material in modern steel structure systems.

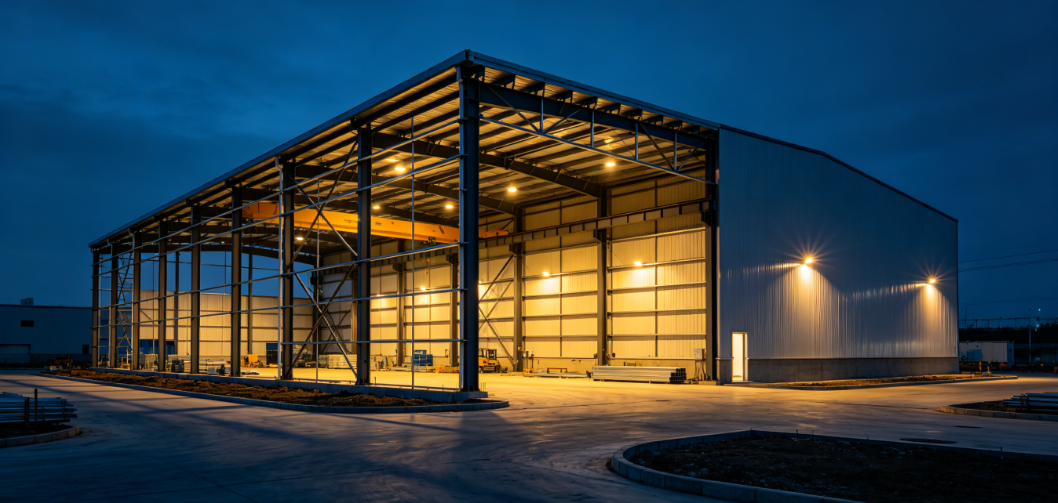

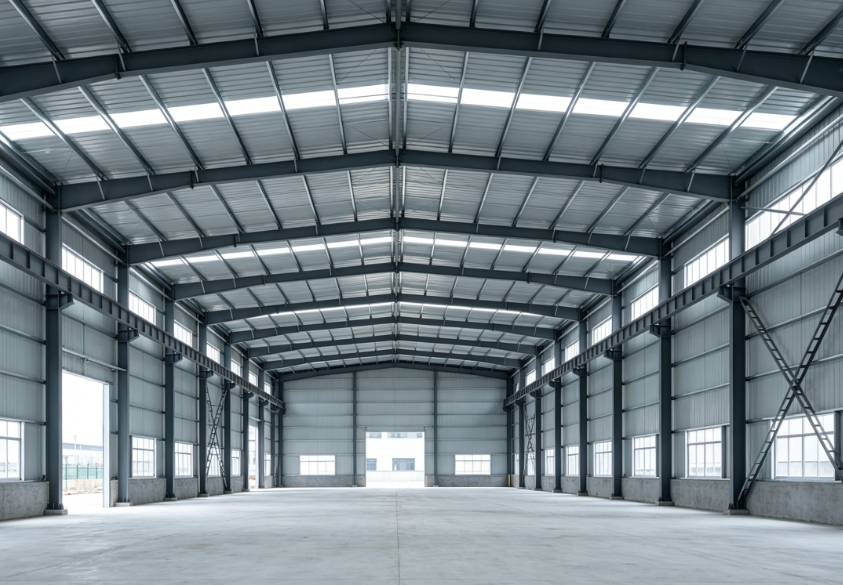

Industrial plant construction is the most mature application field of c shaped steel. In steel structure workshops, c shaped steel is mainly used as roof purlins and wall beams, supporting color steel roof panels and wall panels, and bearing various dynamic and static loads of the building. The standardized c shaped steel components can adapt to the span of 6 to 12 meters, and the combined structural system can meet the construction needs of large-span industrial workshops, effectively improving the overall stability and wind resistance of the plant.

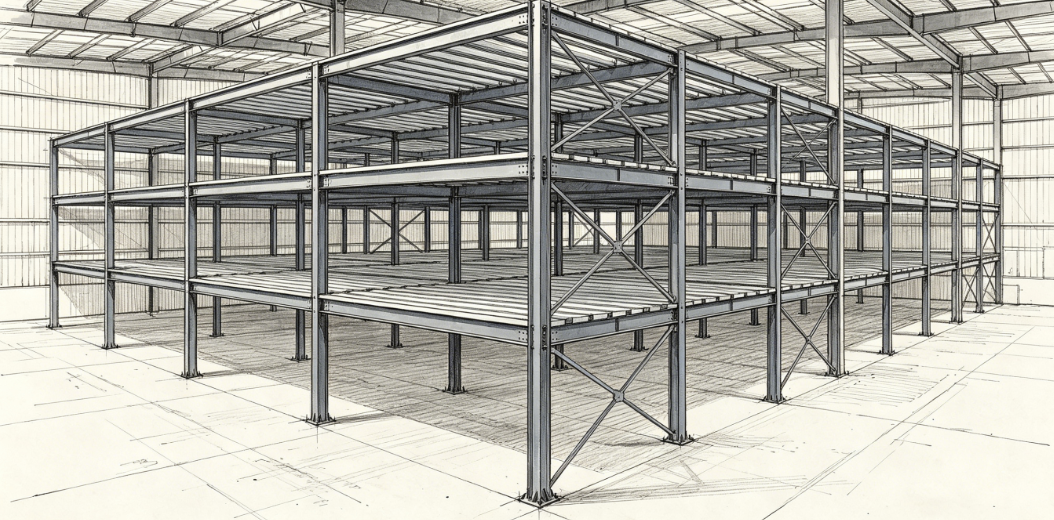

In the field of prefabricated lightweight steel buildings, c shaped steel serves as the core frame material for steel structure villas, temporary office buildings, and multi-story prefabricated buildings. It can be used as floor beams, roof keels, and wall studs to form a lightweight seismic-resistant steel frame system. Compared with traditional concrete buildings, the steel structure system built with c shaped steel has better seismic performance, faster construction speed, and more flexible architectural space layout, which is in line with the development trend of green prefabricated buildings.
The new energy photovoltaic industry is a rapidly growing emerging application scenario for c shaped steel. A large number of medium and small-sized photovoltaic support systems at home and abroad adopt galvanized c shaped steel as the main frame material. Its lightweight feature reduces the load on the roof and ground foundation, and its excellent anti-corrosion performance adapts to outdoor long-term exposure environments. Industry data shows that more than 80% of distributed photovoltaic power station supports use c shaped steel, which has become the preferred material for new energy support structures.
In addition, c shaped steel is widely used in warehousing and logistics mezzanines, storage shelf supports, municipal engineering guardrails, tunnel auxiliary supports, and mechanical equipment frames. Its strong customization can meet the personalized structural design needs of different industries, and its recyclable characteristics of steel materials also conform to the global green building and sustainable development concept, with a recycling rate of more than 90%, no construction waste pollution, and high environmental protection value.
To ensure the safety and stability of c shaped steel in steel structure engineering, the production and application of products must strictly abide by unified national and international industry standards. The core domestic specifications include GB/T 6725-2017 General Technical Conditions for Cold-Formed Steel and GB/T 50018-2002 Technical Code for Cold-Formed Thin-Wall steel structures, while international mainstream standards include ASTM A123 hot-dip galvanized coating specification and EN 10346 continuous galvanized steel standard.
In terms of product quality control, the dimensional accuracy of qualified c shaped steel products is strictly limited: the wall thickness tolerance is ±0.05mm, the length tolerance is within ±2mm, and the overall straightness is not more than 2mm per meter. In terms of mechanical properties, the yield strength of Q235B products is not less than 235MPa, and the yield strength of Q355B high-strength products is stably above 355MPa, with the tensile elongation rate guaranteed to be more than 20%, ensuring good structural toughness and deformation resistance.
In the installation and construction stage, quality control is also crucial. c shaped steel components are connected by high-strength bolts, with a standard fastening torque of 40 to 60N·m. The galvanized layer damaged during construction needs to be repaired with special anti-rust coating to ensure the integrity of the anti-corrosion system. After the completion of installation, the verticality and horizontal flatness of the overall steel structure need to be inspected to eliminate potential safety hazards such as component deviation and unstable stress.
As a mature and efficient cold-formed steel profile, c shaped steel has become an important pillar of modern steel structure engineering relying on its dual core advantages of light weight and long-term durability. It breaks through the limitations of traditional steel materials such as heavy self-weight, high cost, and short service life, and realizes the organic unity of structural safety, economic benefit, and environmental protection performance.
From industrial plants and prefabricated buildings to new energy photovoltaic supports and municipal engineering, the versatile application performance of c shaped steel can meet the diversified construction needs of modern engineering. With the continuous upgrading of green building and prefabricated construction technologies, lightweight, high-strength, and low-maintenance c shaped steel will further expand its market share and become the mainstream preferred material for lightweight steel structure construction in the future. For construction designers and project builders, selecting standardized high-quality c shaped steel is an effective way to optimize project quality, control construction costs, and improve engineering comprehensive benefits.
