Stand inside any modern warehouse, factory, or aircraft hangar, and look up. The intricate lattice of steel members supporting the roof—those slender, lightweight sections with a distinctive “C” shape—seems almost too delicate to hold the massive structure above. Yet they do, and they do so with remarkable efficiency. This is the buckling paradox: an open C shaped steel section, thin-walled and seemingly fragile, often outperforms solid bars of the same weight in resisting bending forces.
How can a shape with an open cross-section, one that leaves a gap where material could be, possibly be stronger than a solid bar? The answer lies not in brute mass but in intelligent geometry—a principle that has made C shaped steel one of the most indispensable components in modern steel structure engineering.

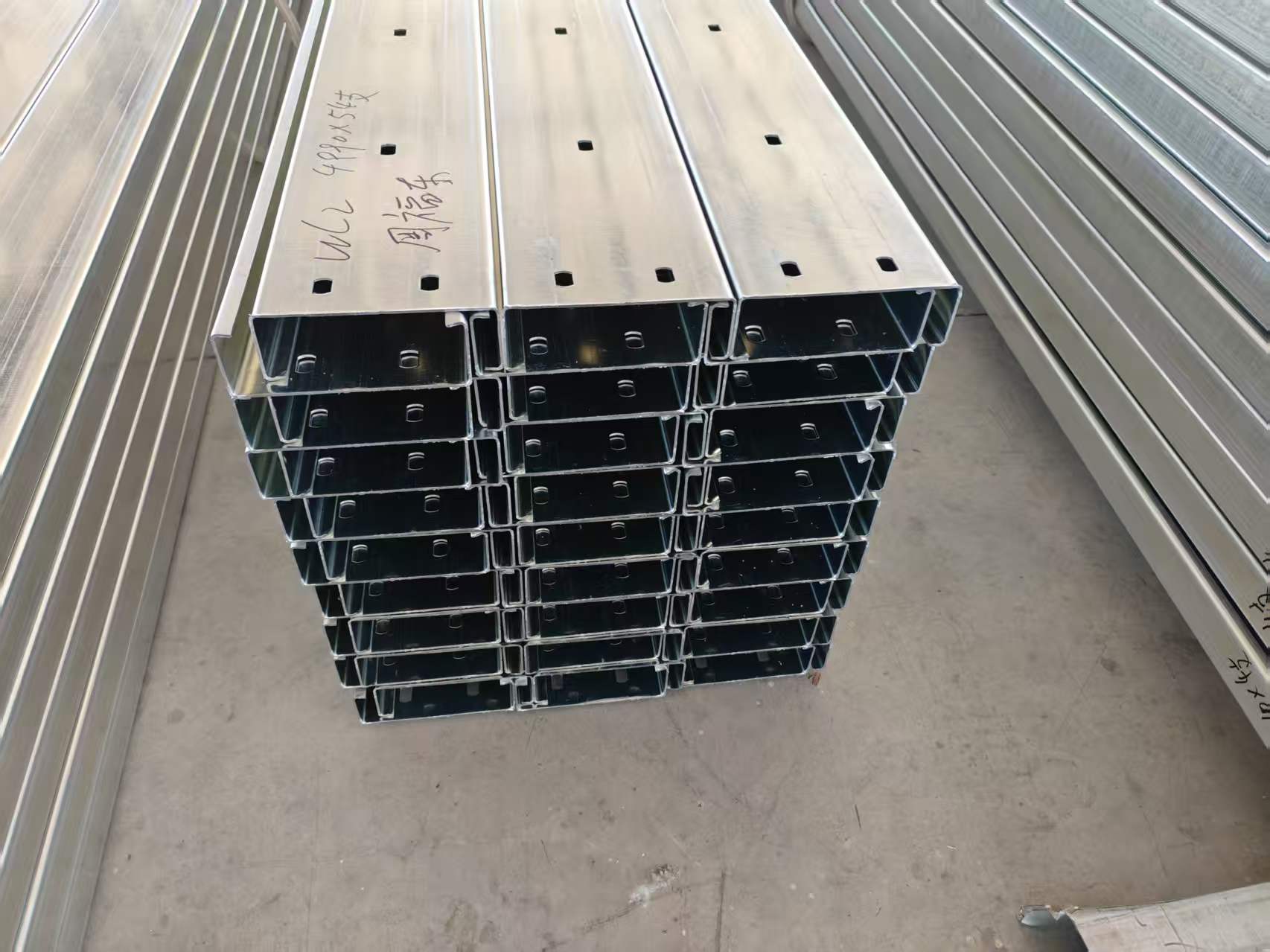

C Type Channel Steel Purlin Light Weigh Galvanized Profiles
Most people, when asked to imagine a strong beam, picture something solid and chunky—a thick rectangular bar or a heavy I-beam. The intuition is straightforward: more material equals more strength. And for pure compression or tension, this intuition holds. But bending is a different story.
When a beam bends, one side stretches (tension) while the opposite side compresses. The material near the center of the cross-section—the neutral axis—experiences almost no stress at all. In a solid rectangular bar, the material near the middle contributes little to bending resistance; it is essentially dead weight. Engineers have known this for centuries, which is why they invented I-beams: shapes that concentrate material at the top and bottom flanges, where bending stresses are highest, and leave the web thin.
C shaped steel takes this logic one step further. By arranging the material into a C-shaped cross-section, engineers achieve an extraordinary strength-to-weight ratio that challenges our everyday assumptions about what makes a structure strong.
The secret of C shaped steel lies in a property called the second moment of area, also known as the area moment of inertia. This geometric property measures a cross-section's resistance to bending. The farther the material is distributed from the neutral axis, the higher the moment of inertia—and the greater the bending resistance.
A C shaped steel section, with its flanges projecting outward from the web, places a significant portion of its material far from the neutral axis. This arrangement produces a moment of inertia that is remarkably high relative to the cross-sectional area. In other words, C shaped steel delivers bending resistance that far exceeds what its weight would suggest.
Consider this: a cold-formed C shaped steel section of the same strength as a traditional hot-rolled steel section can save approximately 30% of the material. The C-shaped geometry enhances the moment of inertia and torsional rigidity of the structural member while simultaneously minimizing material usage, fulfilling the dual objectives of structural safety and economic viability. This is not magic—it is the mathematics of shape.
Most C shaped steel used in modern steel structure construction is manufactured through cold roll forming—a process that shapes steel at room temperature without heat treatment. This process does more than just bend the steel into a C-shape; it fundamentally changes the material's mechanical properties.
During cold forming, the steel undergoes strain hardening. The bending process introduces plastic deformation that increases the yield strength of the material beyond what it possessed in its original flat state. This means that a cold-formed C shaped steel section is not only geometrically efficient but also materially stronger than a hot-rolled section of the same steel grade.
The cold-forming process also enables tighter dimensional tolerances and more consistent properties. Sections can be produced with pre-punched holes for fasteners, reducing on-site labor and ensuring precise alignment. This combination of material efficiency, geometric optimization, and manufacturing precision has made C shaped steel the backbone of light-gauge steel framing systems worldwide.
If C shaped steel is so efficient, why isn't it used for everything? The answer lies in a phenomenon called buckling.
Thin-walled sections, despite their impressive strength-to-weight ratios, are susceptible to various forms of buckling. Scholars have categorized the buckling performance of C-sections into two primary types: single-mode buckling (global buckling, local buckling, and distortional buckling) and multi-mode coupled buckling.
Local buckling occurs when individual plate elements—the web or the flanges—buckle under compression before the entire member fails.
Distortional buckling involves deformation of the cross-section shape itself, typically where the flange rotates relative to the web.
Global buckling (Euler buckling) is the overall bending or torsional failure of the entire member.
These buckling modes significantly restrict the structural efficiency of lightweight steel applications. The thin thickness of cold-formed steel members makes them particularly vulnerable. The open cross-section of C shaped steel columns renders them especially susceptible to distortional buckling when compared to symmetrical sections.
This is the paradox: C shaped steel offers exceptional bending resistance but must be carefully designed to avoid buckling. The very thinness that gives it efficiency also makes it vulnerable.
Engineers have developed sophisticated strategies to mitigate buckling in C shaped steel sections, turning the paradox into a solvable engineering problem.
Research has shown that lip length—the small curled edge at the flange tips—plays a critical role in buckling resistance. A comprehensive finite element analysis involving 176 models demonstrated that increasing lip length leads to a corresponding increase in critical elastic buckling load and moment. The study recommends utilizing a lip length greater than or equal to 15 mm for both columns and beams to effectively mitigate various buckling types.
More advanced strategies include the use of complex longitudinal stiffeners. A 2026 study published in Structures investigated three stiffening strategies—web stiffeners, flange stiffeners, and combined web–flange stiffeners—on high-strength steel C-section columns. The findings were remarkable:
Web stiffeners substantially improved local stability, increasing load-bearing capacity by an average of 14–34%, depending on plate thickness.
Flange stiffeners effectively controlled distortional buckling, enhancing capacity by 12–55%.
The combined web and flange stiffener arrangement offered the most significant improvement, concurrently addressing local and distortional buckling modes, achieving an average capacity gain between 50% and 102%.
These enhancements allow C shaped steel sections to achieve bending resistance that rivals—and sometimes exceeds—that of heavier, solid sections. The paradox is resolved not by adding more material but by distributing it more intelligently.
The design of C shaped steel in steel structure applications relies on sophisticated analytical methods that account for buckling behavior.
Two primary approaches are specified in international standards such as the Australian/New Zealand Standards AS/NZS 4600 and the North American Specification for Cold-Formed Steel Structural Members (AISI S100):
The Effective Width Method (EWM) : This traditional approach reduces the effective width of slender plate elements to account for post-buckling strength. It is widely used but can be conservative for complex sections.
The Direct Strength Method (DSM) : A more modern approach that uses elastic buckling analysis to predict member strength directly, without calculating effective widths. The 2024 edition of AISI S100 includes simplifications for the Direct Strength Method, including a new form for base strength expressions.
Both methods enable engineers to predict the flexural strength and buckling capacity of C shaped steel sections with confidence. Experimental testing and numerical simulations using finite element software like Abaqus have validated these design approaches.
The buckling paradox of C shaped steel is not merely an academic curiosity—it is a principle that enables some of the most impressive structures in modern construction.
C shaped steel sections serve as roof purlins and wall girts in industrial and commercial buildings, transferring loads from cladding to the primary structural frame. They form the structural skeleton of residential and commercial buildings in light-gauge steel framing systems. They are used as floor joists, studs, and trusses.
Perhaps most significantly, C shaped steel has become a fundamental material in the rapidly growing renewable energy sector. C-channel steel is widely used in solar panel mounting structures, where its high strength-to-weight ratio, corrosion resistance, and formability make it ideal for supporting photovoltaic arrays.
The Light Gauge Steel Framing market—which relies heavily on cold-formed C shaped steel sections—was valued at USD 29.5 billion in 2025 and is projected to reach USD 38.7 billion by 2033, registering a CAGR of 3.46%. The broader cold-formed steel market was estimated at USD 17.13 billion in 2025 and is projected to reach USD 28.06 billion by 2033.
These figures reflect the growing recognition that C shaped steel offers a solution to one of construction's oldest challenges: how to build strong structures with less material.
The buckling paradox of C shaped steel has profound implications for sustainable construction. By achieving high bending resistance with minimal material, C shaped steel reduces the embodied carbon of buildings—the carbon dioxide emitted during material production and manufacturing.
Steel is already one of the most recyclable materials on Earth. The use of recyclable steel frames in construction supports circular economy principles. The lightweight nature of C shaped steel also reduces transportation emissions: more sections can be carried per truckload, reducing fuel consumption and logistics costs.
The integration of light gauge steel framing with Building Information Modeling (BIM) and digital twin platforms is enhancing design accuracy and coordination. Automation in fabrication plants is reducing material waste and improving production speed and consistency. These advances make C shaped steel an increasingly attractive option for net-zero buildings and low-carbon construction projects.
The buckling paradox of C shaped steel challenges our intuitive understanding of strength. An open C-section, thin-walled and lightweight, can resist bending forces better than a solid bar of the same weight—not because it contains more material, but because it places that material where it matters most.
This paradox is resolved through sophisticated engineering: cold-forming that increases yield strength, lip lengths and stiffeners that control buckling, and design methods that predict performance with precision. The result is a material that has become indispensable in modern steel structure construction.
From the roof purlins of factories to the framing of residential buildings, from solar panel mounts to earthquake-resistant structures, C shaped steel embodies a fundamental engineering truth: strength is not about mass—it is about shape. The next time you walk into a modern building and look up at the steel skeleton above, remember the buckling paradox. The slender C-shaped sections holding up the roof are not a compromise. They are a triumph of intelligent design.
