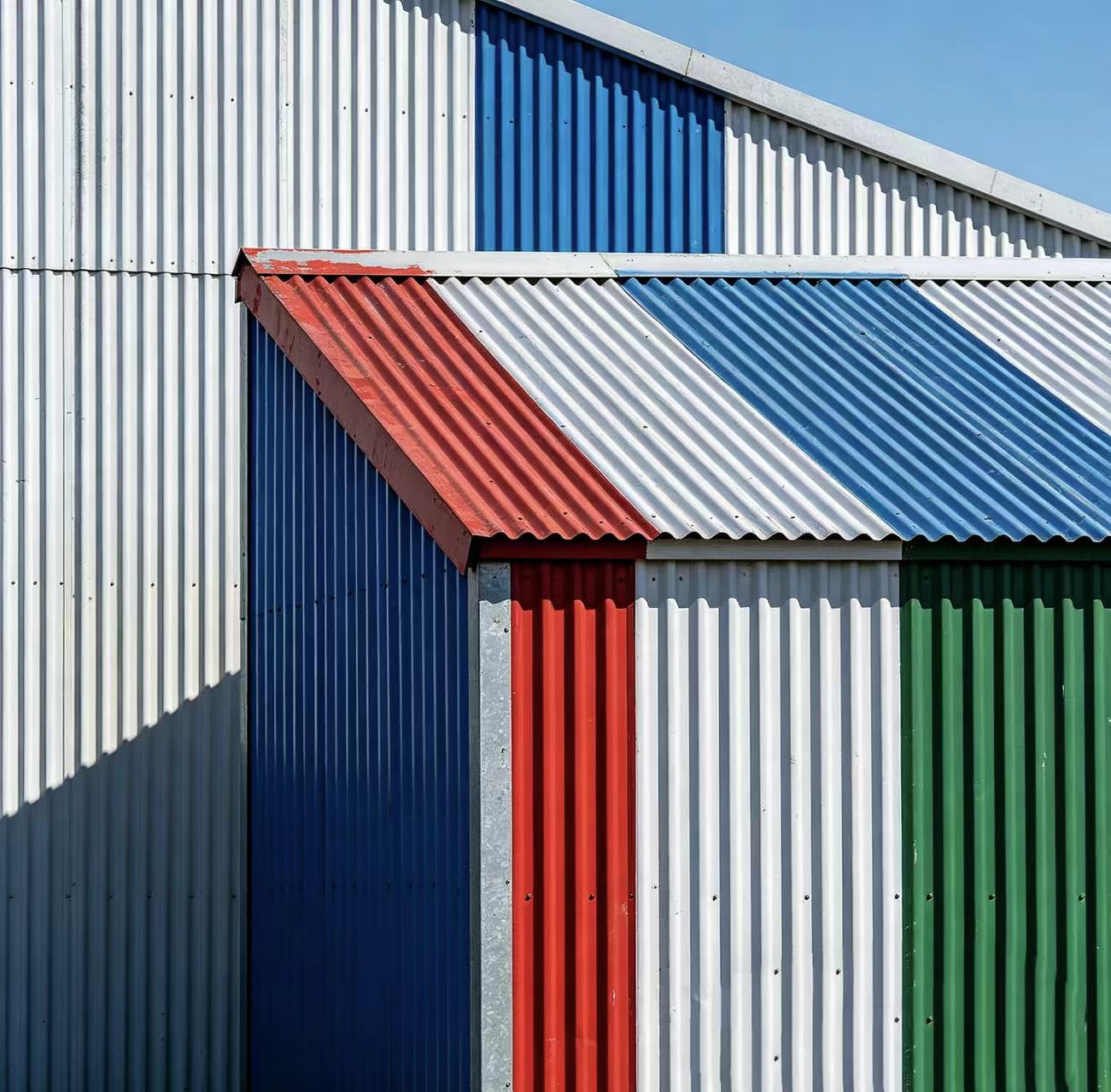

You’ve seen it a thousand times. That bright blue roof on the warehouse by the highway. The cream-colored walls of a farm shed. The crisp white panels of a walk-in cooler at a grocery store. They all look like painted metal – and in a way, they are. But calling a color steel sheet “painted metal” is like calling a smartphone “a piece of glass and plastic.” You’re not wrong, but you’re missing almost everything that makes it work.
So let’s pull back the curtain. What is a color steel sheet made of? How does it survive rain, sun, snow, and salt air for decades? And why should you care whether you buy a galvalume color steel sheet or a prepainted galvanized color steel sheet? Let’s find out.
Imagine you want to build a shed. You could use plain steel – but plain steel rusts in a week if it gets wet. You could use stainless steel – but that’s expensive and heavy. You could use aluminum – but it’s soft and costly. What if you took cheap, strong steel and gave it a really, really good raincoat? That’s the idea behind color steel sheet.
The “raincoat” isn’t just a single layer of paint. It’s a whole system: a metallic shield against rust, a chemical glue to hold everything together, a primer, and then the colorful topcoat that also fights the sun. When engineers design a color steel sheet, they think about each layer like a team member – every one has a job, and the team only works if everyone does their part.

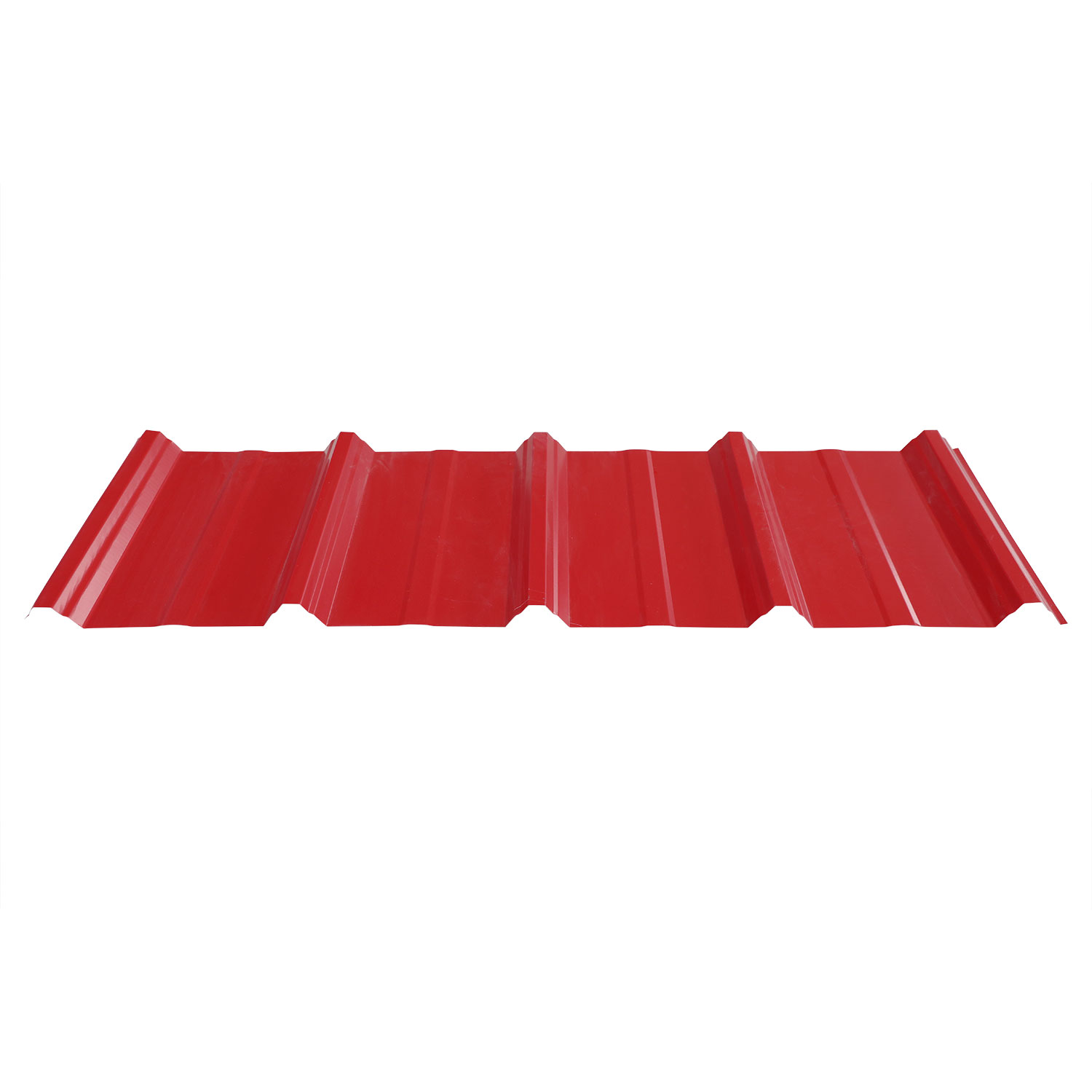

YX 50-410-820 Prepainted Steel Plate
If you could cut a color steel sheet with a very fine saw and look at the edge under a microscope, you’d see six distinct layers. Let’s walk through them from the inside out.
At the very core is plain carbon steel – the same stuff that makes car bodies and bridge beams. This is the backbone. It gives the sheet its strength so it can hold up a roof or resist a dent. Without this core, the whole thing would be as flimsy as foil.
Right on top of that steel is a metallic coating. This is the first real defense against rust. Most of the time, that coating is either pure zinc (which gives us prepainted galvanized color steel sheet) or a mix of aluminum, zinc, and a little silicon (which gives us galvalume color steel sheet). Why does that matter? Because zinc is a “sacrificial” metal – when moisture hits a scratch, the zinc corrodes instead of the steel underneath. Aluminum, on the other hand, forms a tough, invisible oxide film that seals the surface. A galvalume color steel sheet gets the best of both worlds: aluminum for long-term barrier protection, and zinc for self-healing around cuts and drill holes.
Then comes a layer you cannot see – a chemical conversion coating. It’s thinner than a human hair, but without it, the paint would peel off like old wallpaper. This chemical layer creates microscopic peaks and valleys that help the primer grab on. In older products, this layer contained chromium (a toxic heavy metal). Today, most reputable manufacturers use chromium-free, eco-friendly pretreatments based on zirconium or titanium.
Next is the primer. Think of it as double-sided tape. One side bonds to the chemical conversion layer; the other side bonds to the colorful topcoat. The primer also stops any last bits of corrosion from creeping under the paint.
And finally – the topcoat. This is the layer you actually see and touch. But it does far more than look pretty. A good topcoat blocks ultraviolet light from breaking down the layers underneath. It resists chemicals, bird droppings, acid rain, and salt spray. It also holds the pigment that gives your building its color. Depending on the type of polymer used, a topcoat can last anywhere from 5 years to more than 40 years.
Don’t forget the back side. Even the hidden underside of a color steel sheet gets a coating – usually a thin epoxy or modified polyester. That backcoat balances the stresses during manufacturing so the sheet doesn’t curl. It also protects against condensation that can form on the inside of a roof or wall.
YX 35-280-840 Prepainted Steel Plate
You might imagine workers painting steel sheets by hand. Not even close. The process is called coil coating, and it’s one of the most efficient industrial processes ever invented.
A huge coil of steel – up to two meters wide and weighing several tons – is loaded onto a machine. The steel unrolls, races through a series of tanks and ovens at speeds of up to 200 meters per minute, and then rolls back up at the other end – now fully painted and ready to ship. Along the way, it gets cleaned, chemically treated, primed, baked, topcoated, and baked again. The entire process takes less than a minute, but the result is a color steel sheet with perfectly uniform coating thickness, excellent adhesion, and no runs or sags.
This continuous method is why color steel is so affordable. Factories can produce millions of square meters per year with very little waste. And because the coating is applied before the steel is cut and formed into roofing panels or wall cladding, every edge – including drilled holes and folded corners – gets protected.
This is the question that confuses most buyers. You see two blue roofs that look identical. One starts showing red rust spots after a few rainy seasons. The other looks almost new after twenty years. What gives?
The difference usually comes down to three things: the metallic coating, the topcoat polymer, and the environment.
Let’s start with the metallic coating. A prepainted galvanized color steel sheet with a standard zinc coating of 120 grams per square meter (g/m²) might last 10–15 years in a mild rural environment. But the same product in a coastal area – with salt spray and high humidity – could fail in 5–7 years. That’s why engineers specify galvalume color steel sheet for harsh environments. According to a study by the Australian CSIRO (Commonwealth Scientific and Industrial Research Organisation), a galvalume coating with 150 g/m² of Al-Zn alloy can outlast a galvanized coating by three to six times in marine and industrial zones. That’s not a guess – it’s been proven by decades of real-world exposure tests.
Now the topcoat. Standard polyester (PE) is cheap and flexible, but its UV resistance is limited. After about 5–10 years outdoors, a PE topcoat will start to “chalk” – you can rub off a fine white powder with your finger – and the color will fade noticeably. Silicone-modified polyester (SMP) pushes that to 10–15 years. High-durability polyester (HDP) reaches 15–20 years. But the champion is PVDF (polyvinylidene fluoride), a coating that contains about 70% of a fluoropolymer resin. PVDF topcoats routinely last 30–40 years with minimal color change. In accelerated UV testing (ASTM G154), PVDF retains more than 90% of its original gloss after 5,000 hours of exposure; standard polyester falls below 50% after just 2,000 hours.
So if you live near the ocean, or if you need a roof that won’t need repainting for decades, you want a galvalume color steel sheet with a PVDF topcoat. If you’re building an indoor storage shed or a temporary structure, a prepainted galvanized color steel sheet with a standard polyester topcoat is perfectly fine – and much cheaper.
Most people think color steel sheet is only for industrial buildings. That’s like thinking concrete is only for sidewalks. In reality, you encounter this material dozens of times every day.
Your refrigerator – The outer shell of most refrigerators and freezers is a prepainted galvanized color steel sheet. It’s easy to clean, resists fingerprints, and can be stamped into complex shapes.
Car washes and automatic doors – The panels that slide up and down? Almost always color steel.
Grain silos and livestock barns – Farmers love it because it doesn’t rot like wood and doesn’t need repainting.
Bus shelters and billboards – Lightweight, weatherproof, and easy to replace.
Airport hangars and shipping containers – Where strength and corrosion resistance matter.

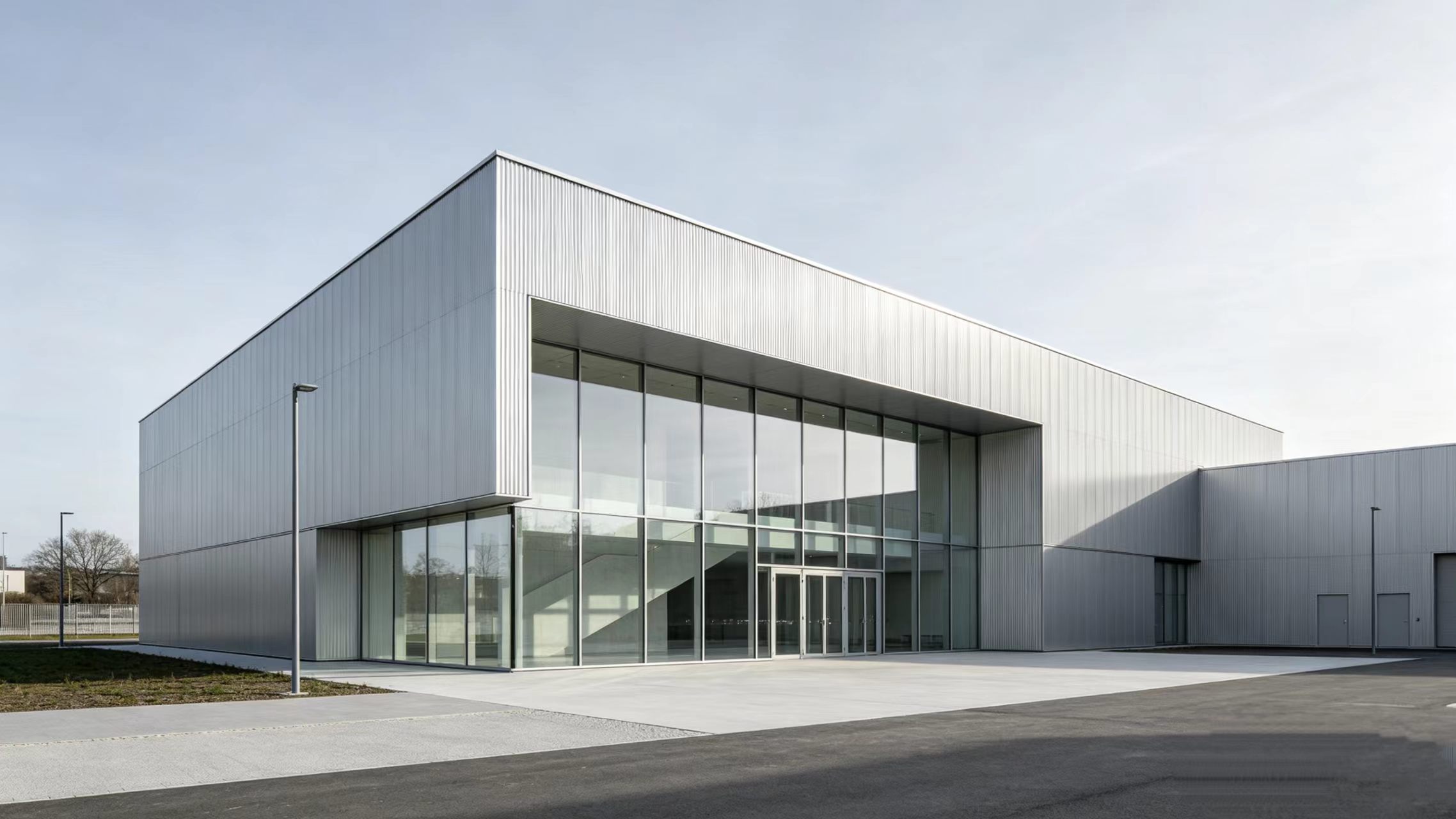

Even some office buildings – Modern architecture uses color steel as a rainscreen cladding, because it comes in any color and can mimic wood or stone with printed coatings.
The market is huge. According to a report by Global Info Research (released in early 2025), the global color-coated steel market was valued at US$32.5 billion in 2024 and is expected to grow to US$47.4 billion by 2031, at a compound annual growth rate (CAGR) of 5.6%. China alone consumes about 45% of the world’s color steel sheet – not surprising, given the country’s enormous construction and appliance manufacturing sectors.
Steel is one of the most recycled materials on Earth. A color steel sheet can be melted down and turned into new steel at the end of its life – and because the zinc or aluminum coating burns off during recycling, the recovered steel is clean. That’s a big advantage over many plastics or composite materials.
But the industry knows it has room to improve. Traditional paint lines emit volatile organic compounds (VOCs) from solvent-based paints. That’s why many factories have switched to water-based primers or high-solids coatings that release far fewer VOCs. Also, the old chromate pretreatments – which were effective but toxic – have been largely replaced by chromium-free chemistry that meets strict EU and US regulations.
Even more exciting are recent innovations. In 2023, South Korean steelmaker Dongkuk CM announced that it had developed a color-coated steel sheet using recycled plastic waste as a raw material for the paint. Producing one ton of their “Re-born Green PCM” recycles about 200 used PET bottles. Meanwhile, POSCO Steeleon introduced a color steel sheet made with paint derived from corn cobs – the biomass content exceeds 26%, earning it UL’s environmental certification. And SSAB now offers “SSAB Zero,” a color-coated product made from 100% recycled steel, using fossil-free electricity and green hydrogen in its production.
These aren’t just marketing gimmicks. With the European Union’s Carbon Border Adjustment Mechanism (CBAM) phasing in, manufacturers that can prove low embedded carbon and high recycled content will have a clear advantage. So the color steel sheet of tomorrow will be both tougher and greener than the one we use today.
The next time you see a blue roof or a white wall panel, you’ll know you’re not looking at “painted metal.” You’re looking at a carefully engineered composite: a color steel sheet with a steel core, a zinc or aluminum-zinc metallic coating, invisible chemical layers, and a polymer topcoat that fights sun, salt, and rain. Whether it’s a prepainted galvanized color steel sheet for a cost-effective solution, or a galvalume color steel sheet for extreme durability, this material has quietly become one of the most successful and versatile inventions of modern industry.
It keeps your food cold, your car dry, your tools safe, and your building standing. And now, you finally know what it really is.
