Z shaped steel is a cold-formed thin-walled steel section whose cross-section resembles the letter “Z”. This distinctive Z-shaped profile is created by taking steel strip—typically hot-rolled or cold-rolled coil—and passing it through a series of roll-forming stands. The process gradually bends the flat strip into the desired Z-section without applying heat, a method that gives the steel its “cold-formed” designation.
Z Purlin Galvanized Steel Z Shape Purlin for Factory
The typical thickness of Z shaped steel ranges from 1.6 mm to 3.0 mm, while section heights commonly fall between 120 mm and 350 mm, though custom dimensions are readily available to meet specific engineering requirements. Common width dimensions include 100 mm, 150 mm, 200 mm, 240 mm, 250 mm, and 300 mm, with thicknesses spanning from 1.0 mm to 3.5 mm.
Because Z shaped steel is manufactured through cold-forming rather than hot-rolling, it exhibits higher dimensional accuracy, a smoother surface finish, and increased strength due to strain hardening during the bending process. The material is typically produced from galvanized steel coils with steel grades such as S350GD+Z275 (compliant with EN 10346) or high-strength options like G500 and G550, ensuring excellent corrosion resistance and load-bearing performance.
The production of Z shaped steel relies on a highly automated and efficient manufacturing method known as roll forming. The process begins with a decoiler that feeds a continuous strip of galvanized steel coil into a series of roller dies. These rollers progressively shape the strip into the Z-profile, with each pair of rollers bending the material incrementally until the final shape is achieved.
Modern roll-forming machines are increasingly intelligent and versatile. Many of today’s systems can produce both C-shaped and Z-shaped steel on the same production line, with automatic size changeover capabilities that double production capacity and reduce operational costs. Some advanced roll-forming machines incorporate 40Cr alloy spindles and high-strength cast-iron frames, which improve deformation resistance and increase finished-product strength by 10% to 15%.
The raw materials used in Z shaped steel production include cold-rolled steel coils, galvanized coils, hot-rolled coils, and high-tensile steel. Manufacturers can punch holes in both the web and flange sides during the roll-forming process, enabling seamless integration with other structural components at the job site.

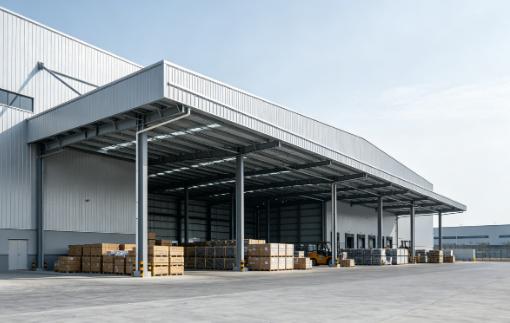

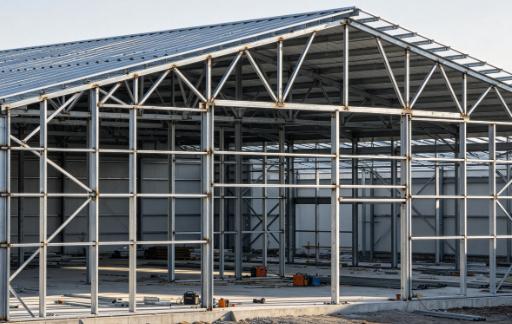

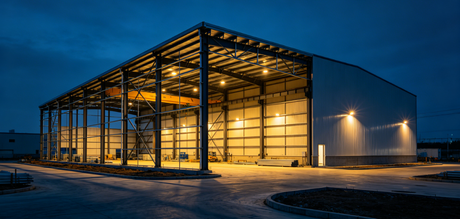

Z shaped steel is predominantly used as purlins and girts in steel structure building systems. As roof purlins and wall girts, Z sections provide the secondary framing that supports the exterior cladding—whether metal sheeting, insulation panels, or composite materials. Their high strength-to-weight ratio makes them particularly valuable in pre-engineered buildings (PEBs), warehouses, factories, and large-span industrial structures.
Beyond conventional building applications, Z shaped steel is increasingly specified for:
Solar mounting structures – the roll-formed Z profile provides an ideal balance of stiffness and light weight for photovoltaic panel support systems.
Mechanical equipment frames – Z sections serve as columns, beams, and arms in light-duty machinery and industrial racking.
Modular and prefabricated buildings – the precision and uniformity of cold-formed Z sections make them highly compatible with off-site fabrication and modular assembly.
Braced wall panels – research has demonstrated the effectiveness of Z-shaped bracing in cold-formed steel wall panels for resisting lateral loads.
One notable engineering innovation is the use of Z shaped steel as a concealed beam in prefabricated steel structures. By replacing traditional H-beams with Z-shaped hidden beams, designers can achieve a flush interior finish with no exposed columns or beams. The Z-beam’s web conveniently accommodates door and window columns, while increasing support points and improving load distribution to the main structure—allowing for reduced material sections and simplified fireproofing.
For anyone involved in steel structure building design, the choice between Z-section and C-section purlins is a recurring decision. While both profiles are cold-formed and widely available, they exhibit distinct structural behaviors that suit different scenarios.
The most fundamental geometric difference lies in the flange orientation. C-shaped steel has flanges that are perpendicular (90 degrees) to the web, whereas Z shaped steel features flanges angled between 60 and 75 degrees. This seemingly subtle distinction has significant implications for structural performance.
Overlap and Continuity: Z shaped steel purlins are inherently easier to lap (overlap at supports) compared to C sections. When lapped, Z purlins create a continuous member that distributes loads more efficiently across multiple spans. This lap joint capability is a key reason why Z sections are preferred for multi-span roof systems.
Bending Efficiency: Z purlins, particularly when used on roof slopes, align their principal axes more favorably with the direction of applied loads. The angled flanges allow the section to fully utilize its bending resistance, often resulting in a more structurally efficient design than an equivalent C section.
Post-Buckling Capacity: Comparative research on cold-formed C and Z sections applied to low-rise residential framing has revealed that structures incorporating Z shaped steel exhibit higher post-buckling load capacity than those using C sections of the same dimensions.
Pull-Through Connection Performance: A recent experimental study comparing C- and Z-shaped cold-formed steel purlin-to-rafter connections found that connection behavior varies significantly depending on section thickness, depth, flange width, and screw diameter. Designers must therefore evaluate connection details carefully for each specific application.
In summary, while C-shaped steel is often the default choice for simple-span applications and wall girts where lapping is unnecessary, Z shaped steel is generally the superior option for continuous-span roof purlin systems—particularly where long spans and sloping roofs are involved.
It is also important to distinguish Z shaped steel (a cold-formed product) from traditional hot-rolled steel sections. Hot-rolled steel is shaped at temperatures above the steel’s recrystallization point, typically exceeding 1,700°F (926°C). In contrast, cold-formed Z shaped steel is processed at room temperature, starting from hot-rolled coil that is subsequently roll-formed without reheating.
This fundamental manufacturing difference yields several advantages for Z shaped steel:
Higher strength-to-weight ratio – the cold-forming process induces strain hardening, which increases yield strength without adding material mass. A cold-formed open section is generally lighter than a hot-rolled profile of equivalent bending strength.
Tighter dimensional tolerances – room-temperature forming allows for more precise control over section dimensions, which is critical for pre-engineered and modular construction.
Lower embodied carbon – because no reheating is required during the cold-forming stage, production energy consumption is significantly lower than for hot-rolled sections.
Of course, hot-rolled steel remains the preferred choice for primary structural members (main frames, heavy columns, and large beams) where very thick sections and extreme load capacities are required. Z shaped steel occupies the complementary role of secondary framing—providing efficient, lightweight, and cost-effective support for building envelopes.
Z shaped steel is manufactured in a range of steel grades to suit different loading conditions and environmental exposures. Common yield strengths span from 250 MPa to 550 MPa, with galvanized coatings such as Z275 providing long-term corrosion protection.
A typical Z section might be designated as “Z 200 × 2.0”, indicating a nominal depth of 200 mm and a material thickness of 2.0 mm. The flange widths are proportionally designed to maintain stability against local buckling. Mass per unit length varies with dimensions—a Z 100 section with 1.5 mm thickness has a theoretical weight of approximately 2.64 kg/m, while larger and thicker sections increase correspondingly.
Load capacity calculations for Z shaped steel purlins consider dead loads (self-weight of the purlin plus roofing materials), live loads (maintenance and occupancy), wind loads (which often govern in large-span buildings), and snow loads in colder climates. Engineering software tools compliant with standards such as AISI S100 (North America), Eurocode 3 (Europe), or GB 50018 (China) are routinely used to determine safe spans and purlin spacings. Design parameters typically include a Young’s modulus of 200 GPa and deflection limits of span/150 to span/200 depending on application requirements.
1. High Structural Efficiency
The Z-shaped cross-section is geometrically optimized to resist bending moments and shear forces. Because the angled flanges align with principal loading directions in sloped roof applications, Z shaped steel delivers better material utilization than many alternative sections.
2. Lightweight and Seismic Performance
The thin walls of cold-formed Z sections translate directly into lower structural dead loads. This reduction in mass improves seismic performance by decreasing the inertial forces that buildings experience during earthquakes. As a result, Z shaped steel is widely recognized as a valuable material for earthquake-resistant construction.
3. Design Flexibility and Customization
Unlike many standardized hot-rolled sections, Z shaped steel can be produced with custom depths, flange widths, thicknesses, hole patterns, and lengths—typically up to 12 m to 18 m per piece. This flexibility enables structural engineers to optimize their designs without being constrained by a limited catalog of pre-existing shapes.
4. Ease of Installation
Z purlins are shop-punched with pre-drilled holes for bolted field connections, significantly reducing on-site labor and eliminating the need for field drilling. When lapped continuously over supports, Z sections form a structurally robust assembly with relatively few connection points.
Sustainability is no longer an optional consideration in construction—it is a core specification requirement. Z shaped steel, as a cold-formed steel product, delivers compelling environmental advantages that align with green building certification goals such as LEED and BREEAM.
Recycled Content and End-of-Life Recycling: Cold-formed steel products typically contain a high proportion of recycled steel. Steel manufactured in electric arc furnaces (EAFs) using recycled scrap can achieve up to 30% lower embodied carbon compared to steel made from virgin iron ore. Moreover, steel is 100% recyclable at the end of a building’s life, and the global recycling rate for structural steel approaches 95%, ensuring that Z shaped steel rarely ends up in landfills.
Energy-Efficient Production: The roll-forming process used to manufacture Z shaped steel occurs at ambient temperature, consuming only the energy required for mechanical forming. No heating furnaces are needed during the shaping stage, which substantially reduces the carbon footprint compared to hot-rolled or forged alternatives.
Longevity and Durability: Galvanized Z shaped steel resists moisture, pests, fungal decay, and environmental degradation—issues that commonly plague wood framing. Buildings constructed with cold-formed steel framing require fewer repairs and less maintenance over their service lives, conserving resources over the long term.
Non-Combustible Material: Steel does not burn. When used in wall and roof assemblies with appropriate fire-rated coverings, Z shaped steel framing contributes to building fire safety and can lower insurance premiums for building owners.
The market for cold-formed steel—of which Z shaped steel is a major product category—is experiencing robust growth driven by urbanization, industrialization, and the global shift toward prefabricated and sustainable construction methods.
The global cold-formed steel market was valued at approximately USD 22 billion in 2024 and is projected to reach USD 31.59 billion by 2031, representing a compound annual growth rate (CAGR) of around 5.3%. Analysts attribute this growth to increasing demand for cost-effective, lightweight, and sustainable construction materials across both developed and emerging economies.More specifically, the global metal building system market—which relies heavily on Z shaped steel for secondary framing—is estimated at USD 22.48 billion in 2025 and is forecast to reach USD 49.40 billion by 2032, growing at an impressive CAGR of 11.9%. Similarly, the light steel framing (LSF) market, where Z shaped steel plays a central role in prefabricated wall and roof systems, was valued at USD 21.73 billion in 2025 and is expected to reach USD 37.25 billion by 2033.
Regionally, Asia-Pacific dominates both production and consumption, driven by massive infrastructure investment in China and India, while North America and Europe continue to see steady growth in prefabricated metal building systems for commercial and industrial applications.
Despite its many advantages, Z shaped steel is not without limitations. Its thin walls make it susceptible to local buckling under concentrated loads unless properly braced. Sag rods (intermediate lateral restraints) are often required to stabilize purlins over long spans, and connection detailing must account for the reduced thickness to avoid pull-through or tear-out failures. Engineers must also consider that the flanges of Z sections are not parallel, which can complicate connections to certain types of cladding or support brackets unless custom brackets are used.
Furthermore, while galvanized Z shaped steel offers excellent corrosion resistance in most environments, aggressive coastal or industrial atmospheres may require heavier galvanized coatings (e.g., Z450 or Z600) or additional protective paint systems to ensure design life.
Z shaped steel stands as a quintessential example of how intelligent material geometry and advanced manufacturing can transform construction practice. As a cold-formed, thin-walled section with a distinctive Z-shaped profile, it provides an optimal balance of strength, weight, and cost for secondary framing applications in steel structure building systems.
From its efficient roll-forming production process to its superior lapping behavior in multi-span roofs, from its high recycled content to its 100% recyclability at end of life, Z shaped steel delivers performance and sustainability in equal measure. As global construction continues its trajectory toward prefabrication, lightweight systems, and carbon reduction, the role of Z shaped steel will only grow more significant.
Whether you are specifying purlins for a new warehouse, designing wall girts for a prefabricated residential project, or engineering a solar mounting structure, understanding the capabilities of Z shaped steel—and knowing when to specify it over C-sections or hot-rolled alternatives—is an essential skill for the modern structural professional.
