When you walk across the floor of a skyscraper, step into a modern office building, or enter a newly constructed apartment complex, you are standing on something remarkable — yet invisible. Beneath your feet lies a sophisticated engineering system that has quietly revolutionized the construction industry over the past half-century. That system is the steel floor deck, and unsurprisingly, many of the world’s tallest and most efficient buildings rely on this technology as their structural foundation.
But what exactly is steel floor deck? How does it work? And why has it become the hidden backbone of modern construction? This comprehensive guide will answer all these questions and more.

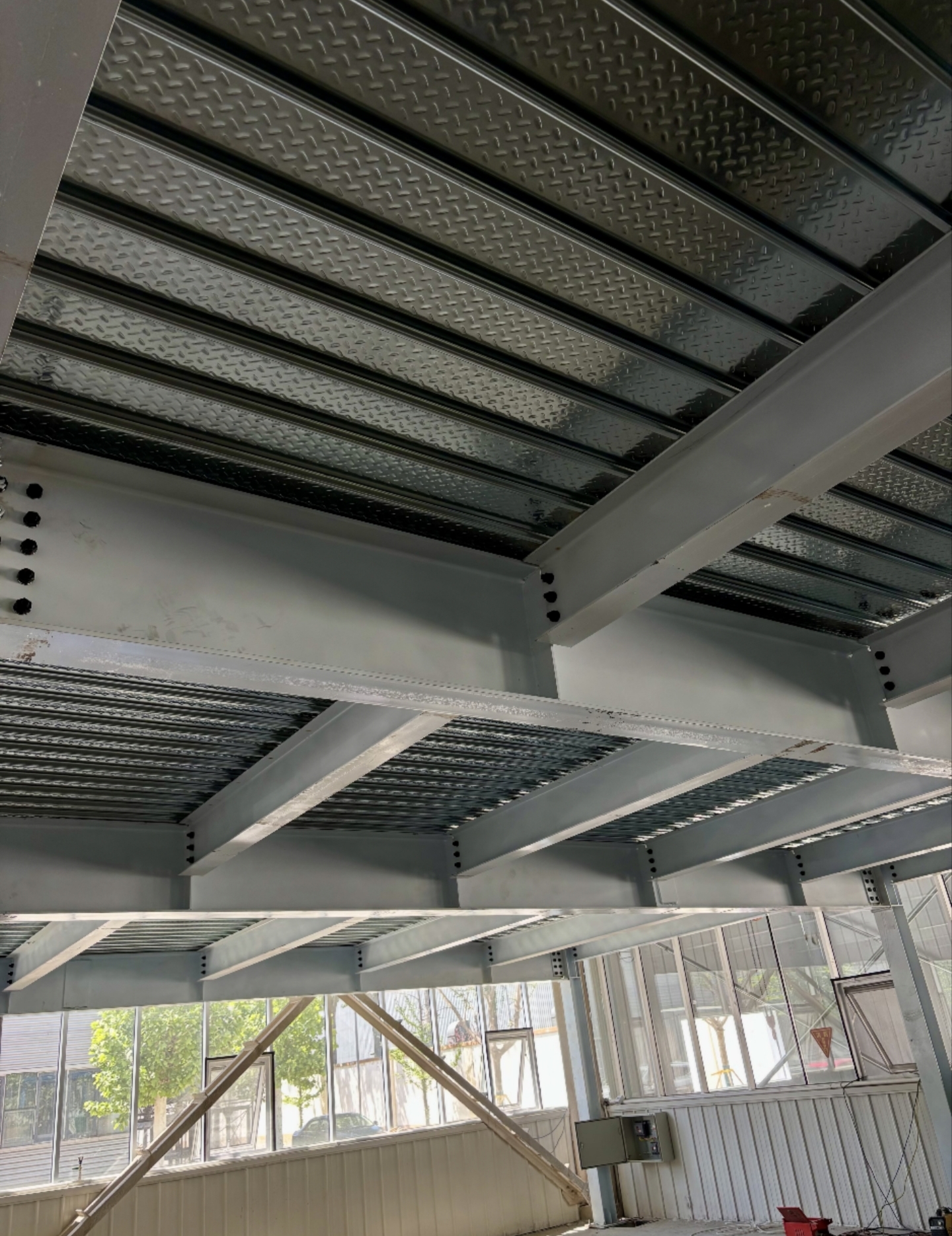

At its simplest, steel floor deck is a thin, profiled steel sheet that serves as a permanent formwork for concrete floor slabs. The product typically comes in depths ranging from 38 mm to 203 mm, with common profiles around 50-100 mm in height, and is manufactured from galvanized or coated cold-formed steel. Steel floor deck rolls may be up to 750-900 mm wide and cut to lengths that suit specific project requirements.
However, to call steel floor deck merely “formwork” would be a serious understatement. Here is the key distinction that sets this technology apart: unlike traditional timber formwork that is removed after concrete cures, steel floor deck remains permanently in place as an integral structural component of the finished floor.
This dual functionality is what makes steel floor deck so powerful. During construction, it serves as a safe working platform — supporting the weight of wet concrete, construction equipment, and workers. After the concrete hardens, the deck and concrete act together as a composite slab, with the steel providing tensile reinforcement while the concrete handles compression. The concrete, steel deck, and the bond between them then work as a single unit, producing a floor system that outperforms either material used alone.
This composite action is not accidental — it’s engineered. The steel sheets are embossed with special patterns such as frustum-shaped projections, repeated across their surfaces and sloping sides. As concrete is poured, it flows around these embossments. Once cured, they create a mechanical interlock between the steel and concrete that is stronger than the horizontal stresses the slab is exposed to.
To fully appreciate steel floor deck, we need to understand its place within the broader world of steel structure building systems. Steel structure construction refers to buildings whose primary load-bearing framework is composed of steel columns, beams, and trusses. Within this framework, steel floor deck occupies a unique and vital position.

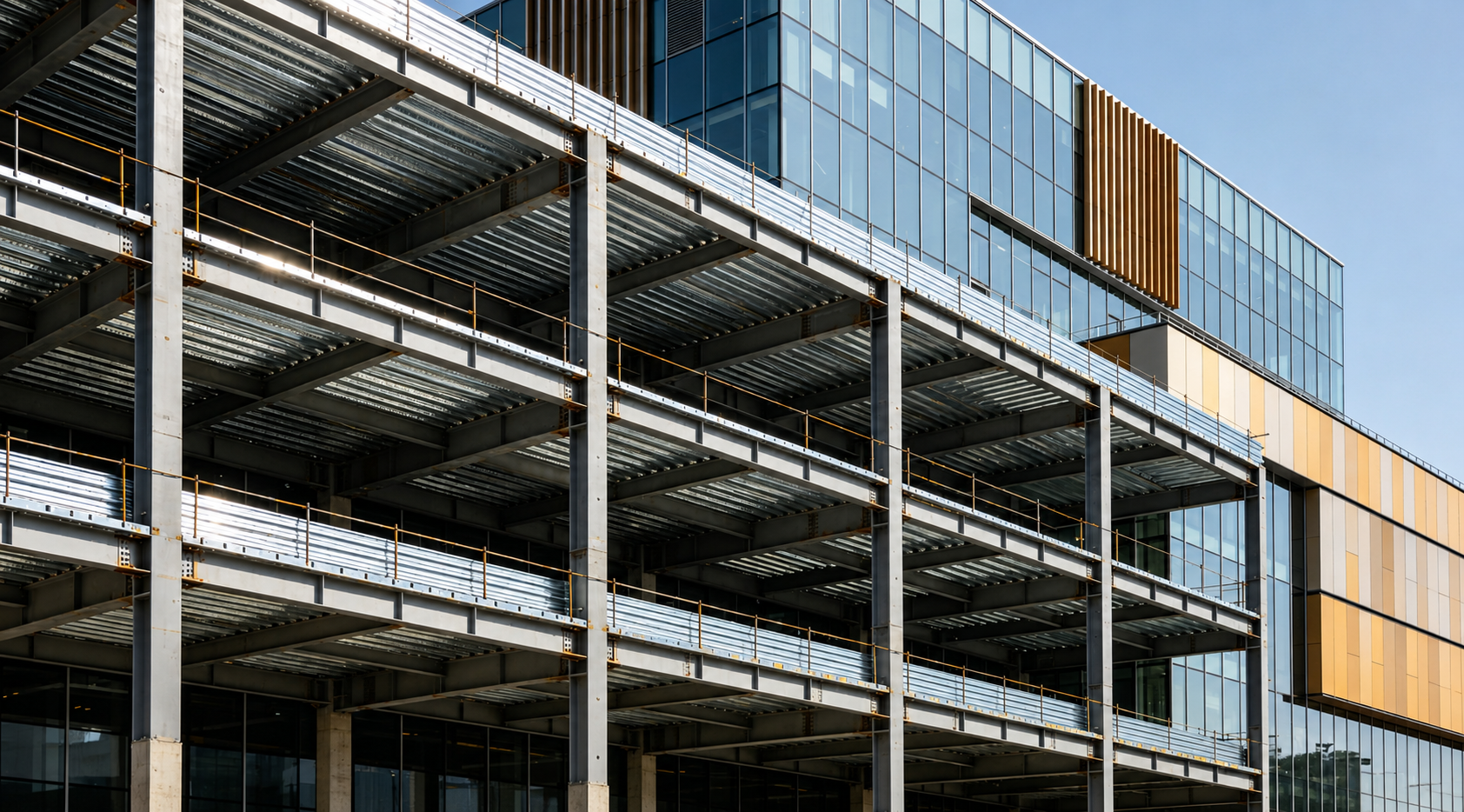

In a typical steel structure building, steel columns rise from the foundation to support primary beams. These beams support secondary beams, and on top of those beams rests the steel floor deck. The deck spans between steel beams, supported on their top flanges, and receives the concrete topping. The assembly that results — steel beams, steel deck, concrete, and reinforcing mesh — is known as a composite floor system.
Steel structure construction has become the dominant choice for medium- and high-rise buildings worldwide, largely due to the need for cost optimization and fast project delivery. Within this system, steel floor deck serves as the crucial interface between the steel frame and the concrete floor slab, ensuring that the structural behavior of the overall system is coherent and efficient.
The global market for steel-based floor panels was estimated at US13.71billionin2024,andisforecasttoreachUS13.71billionin2024,andisforecasttoreachUS20.10 billion by 2031 — a compound annual growth rate of 5.7 percent. This growth reflects the rapid adoption of steel floor deck systems across residential, commercial, and industrial construction sectors worldwide.
The term steel floor deck actually encompasses several distinct product categories, each suited to different applications and performance requirements. Understanding these variations is important for architects, engineers, and builders — and for anyone trying to make sense of modern building design.
When most people refer to steel floor deck, this is what they mean. Composite steel floor deck features the embossed patterns described above, designed to create mechanical shear bond with the concrete slab. It is manufactured in depths of 38 mm, 76 mm, and other intermediate dimensions, and is widely available from manufacturers such as Tata Steel, ArcelorMittal, and Nucor.
Composite deck is the workhorse of modern construction. It eliminates the need for temporary timber formwork entirely — an innovation that dramatically accelerates construction schedules. According to industry guidance, decking crews can install upwards of 400 square meters of steel floor deck per day. With installation speeds like that, it is easy to see why composite steel floor deck has become the default choice for multi-story steel structure buildings worldwide.
For buildings requiring exceptionally long spans — such as convention centers, airport terminals, and large commercial spaces — manufacturers have developed deep composite steel deck. These products can reach depths of up to 203 mm and, when combined with supplementary reinforcing steel and a thicker concrete topping, can achieve clear spans exceeding 9 meters (approximately 30 feet).
The advantage of long spans is obvious: fewer columns means greater architectural freedom. Open floor plans with minimal vertical obstructions are increasingly sought after in commercial and residential design. Long-span deck systems make such layouts possible without compromising structural integrity.
Cellular steel deck offers an additional dimension of functionality. Its construction consists of a fluted steel deck, or hat, combined with a secured flat steel lining panel. By welding or riveting the liner to the deck hat, an enclosed cavity — or cell — is created between the two layers. This configuration creates a completely smooth underside that can serve as an architectural finished ceiling without requiring additional drywall or finishing systems.
The structural efficiency of cellular deck does not stop at aesthetics. The enclosed cells can be used as pathways for electrical wiring, data cabling, and other mechanical, electrical, and plumbing services, known as MEP. For offices, data centers, hospitals, and other MEP-intensive applications, cellular deck offers significant cost savings by integrating service distribution directly into the deck system.
Building regulations around the world increasingly mandate strict acoustic performance standards for multi-residential and commercial buildings. Sound transmission between floors — both airborne noise such as conversation and impact noise such as footsteps — must be adequately controlled.
Acoustic steel floor deck addresses these requirements directly. By perforating the deck and incorporating acoustic insulation, these systems can achieve Sound Transmission Class ratings of 50-55 decibels for airborne sound insulation. This is equivalent to what heavy carpeting, underlayment, and advanced ceiling systems can deliver, but achievable within the slab itself.
Manufacturers also offer added mass in the slab for enhanced vibration and acoustic performance, with some systems achieving fire ratings up to 180 minutes with a 120 millimeter slab.
What makes steel floor deck so remarkably efficient from a structural perspective? The answer lies in the mechanics of composite action.
When a steel deck is used alone — that is, without concrete composite action — its load carrying capacity is limited. However, when the same deck is embedded in concrete and allowed to act compositely, the combination achieves something neither material can accomplish independently:
Load carrying capacity increases by factors of up to two, according to guidance from the Steel Construction Institute.
Stiffness improves by factors of up to 3.5 times when compared to non-composite alternatives.
These performance improvements have direct implications for building design. Because the composite slab is so much stronger and stiffer than a non-composite deck alone, engineers can design floors that span longer distances without intermediate support beams. Fewer beams means less structural steel overall, which reduces material costs, foundation loads, and the building’s carbon footprint.
The structural efficiency translates to reduced steelwork frame weight. Because steel floor deck systems produce lighter floor assemblies than conventional construction, the primary steel structure carries less dead load. This reduction cascades through the entire building system: lighter steel beams and columns reduce foundation loads, allowing for more cost-effective foundations and potentially shorter construction schedules.
Consider the extreme end of what steel floor deck can achieve. Versa-Floor HR, a deep composite deck system, allows for clear spans of up to 35 feet between columns without deep spandrel beams or intermediate structural members. Spans of that magnitude were virtually impossible to achieve economically with conventional reinforced concrete slabs.
Perhaps the most compelling argument in favor of steel floor deck is the time savings it delivers — and the associated cost reduction. Construction schedules are a critical factor in project economics, as time overruns can eliminate profit margins entirely.
Research conducted at Makerere University provided the most detailed quantification available. A comparative analysis of conventional reinforced cement concrete, or RCC, slabs and structural steel decked (SSD) slabs, using a real hotel extension project as a case study, found that steel floor deck systems achieved a 20.3% reduction in total construction cost and a dramatic 43.75% decrease in construction time.
The same study noted that steel floor deck systems simplify labor requirements by eliminating traditional formwork and reducing reinforcement needs. Temporary formwork construction — the process of building, leveling, and then after concrete placement, dismantling timber formwork — is labor intensive, time consuming, and material wasteful. Steel floor deck eliminates this entire process.
Further industry evidence supports these findings. A composite floor system used for an 11-story, 166-condominium unit apartment building in Longueuil, Quebec, shortened construction time by three full months and materially cut material costs. For a hotel project in Belgium, ArcelorMittals composite steel floor solution enabled renovation of a 19th-century church into a five-story hotel while avoiding the use of concrete props entirely — an impossibility with conventional concrete construction.
But construction speed is not the only economic benefit. In many cases, steel floor deck reduces the need for shoring — temporary supports that hold the formwork in place while the concrete gains strength. Some deep deck profiles are designed to eliminate propping altogether, allowing decking crews to install the steel deck and pour concrete without intermediate supports. The reduction in temporary works translates directly to lower labor costs and faster floor cycle times.
One important nuance: while the installed cost of steel floor deck can be competitive with or lower than conventional construction, the upfront material cost of the steel sheet may appear higher. However, as industry commentators note, “when you add in labor savings, programme compression and follow on efficiency, the whole system becomes significantly more economical”.
Fire safety is obviously a paramount concern in building construction. Steel floor deck systems perform admirably in this regard because the concrete topping provides thermal protection to the steel deck while the steel maintains structural integrity during elevated temperatures.
Fire ratings for composite steel floor deck systems typically range from 60 to 120 minutes and can extend to 180 minutes or even 240 minutes depending on slab thickness, deck profile, and reinforcement configuration.
What does a 180 minute fire rating mean in real terms? If a fire breaks out in a building with steel floor deck floors, the fire must burn for a full 180 minutes — three hours — before the slab would fail. In practice, that means the building’s occupants have more than enough time to evacuate, and the building structure itself remains serviceable after the fire is extinguished, not collapsed.
Testing conducted in conjunction with the UK-based Steel Construction Institute ensures that steel floor deck systems meet internationally recognized standards for fire performance. Some modern systems achieve 120-minute fire ratings with only a 120 millimeter thick slab, and no bottom steel reinforcement required beyond the deck itself.
In an era of climate change awareness and sustainability regulations, steel floor deck offers several environmental advantages over traditional construction methods.
First, steel floor deck eliminates wood formwork entirely. In conventional concrete construction, large quantities of timber are used to build temporary formwork systems — and these systems are typically used only once or twice before the wood is discarded. By replacing timber formwork with permanent steel deck, builders can dramatically reduce wood waste and the associated carbon footprint.
Second, steel floor deck is recyclable. Steel is the most recycled material on the planet, with well-established collection and processing infrastructure in most developed nations. At the end of a building’s service life, the steel deck can be removed, melted down, and reformed into new steel products◊. This closed-loop recyclability aligns with circular economy principles.
Third, lighter floors mean lighter structures. Because composite slabs are thinner and weigh less than conventional concrete slabs of equivalent strength, the supporting steel structure can be reduced in size and weight. Lower dead loads translate to smaller foundations, less excavation, reduced material transport emissions, and overall lower embodied carbon.
Modern steel floor deck systems increasingly embrace whole-life carbon accounting. As industry leaders develop new products specifically designed to “reduce both the total cost of ownership and whole life carbon,” manufacturers such as Building Systems UK continue to push the boundaries of environmental performance.
The steel floor deck sector continues to evolve rapidly. Several emerging technologies point to significant performance improvements in the coming years.
The Composite Slim-Floor System pairs rolled beams with a thin, profiled steel deck and high-strength concrete topping to create a composite slab that is lighter than traditional thick concrete floors yet still meets acoustic and fire requirements. These systems achieve reduced overall floor depth, which allows building designers to include more floors within the same total building height — an economic advantage in dense urban centers where height restrictions are common.
Digital design integration is another area of rapid advancement. Modern composite deck construction increasingly leverages 3D modeling applications that enable clash detection, visualization, and improved coordination between design and construction teams. These tools reduce errors, prevent costly rework, and improve construction quality.
Researchers are also investigating novel composite steel floor systems designed for rapid assembly in residential applications. The FastFloor R project, for example, explores nonproprietary composite steel floor designs intended to lower barriers to adoption while maintaining structural performance. Could we see off-site prefabricated composite floor panels delivered to job sites and installed in hours rather than days? The research suggests that such systems are closer to market than generally realized.
Because steel floor deck is a critical structural component, its design and manufacturing are governed by rigorous industry standards. The Steel Deck Institute (SDI), founded in 1939, publishes the standards that govern steel deck design, manufacture, and field usage in North America.
The ANSI/SDI C-2017 standard for composite steel floor deck slabs specifies the materials, design, and erection of composite concrete slabs utilizing cold-formed steel deck functioning as permanent form. Similarly, the ANSI/SDI NC-2017 standard governs non-composite steel floor deck applications. Both standards are based on the AISI S100-16 specification for the design of cold-formed steel structural members.
Manufacturers also publish individual load tables for their products. Because the structural capacity of composite slabs must be determined by testing, each manufacturer tests their profiles and publishes specific design values. Industry organizations such as the Canadian Sheet Steel Building Institute publish bulletins such as the CSSBI S2 Criteria for the Testing of Composite Slabs and CSSBI S3 Criteria for the Design of Composite Slabs to standardize this testing process.
Steel floor deck is remarkably versatile in its applications. The system has proven itself across virtually every building category:
Commercial office buildings — steel floor deck enables column-free floor plates, integrated service distribution, and rapid construction schedules — all critical to commercial real estate developers.
Multi-family residential buildings — lighter floors reduce foundation loads, and acoustic-rated deck options meet building code noise transmission requirements.
Industrial facilities and warehouses — long-span deep deck systems allow for unobstructed floor areas for equipment, storage, and material handling.
Healthcare and educational facilities — acoustic and vibration performance are critical for hospitals and schools, and steel floor deck systems deliver predictable, tested performance.
Renovation and adaptive reuse projects — lightweight composite floors allow developers to add stories to existing buildings without overloading older foundations, as demonstrated by the Patershof Hotel project in Belgium where composite flooring with lightweight concrete was used to convert a 19th-century church into a modern hotel.
No construction system is perfect. Steel floor deck has its limitations, and understanding these is critical for appropriate specification.
Higher initial material cost — The up-front cost of steel deck can exceed that of traditional formwork materials, although this is nearly always more than offset by schedule savings and labor reduction.
Specialized labor requirements — Steel floor deck installation requires trained crews familiar with safe deck handling, proper fastening, and composite slab construction techniques. Not every general contractor has these capabilities in-house.
Thermal insulation needs — Steel conducts heat readily, which can lead to thermal bridging through the slab at beam connections. In climate-controlled buildings, supplementary insulation strategies may be required.
Corrosion protection necessary — Although steel floor deck is manufactured from galvanized or coated steel, long-term performance depends on maintaining that protective coating in good condition.
Concrete coverage requirements — Fire resistance depends on the concrete cover thickness over the deck flutes. In thinner slabs or shallow deck profiles, meeting fire rating requirements can be challenging.
What does the future hold for steel floor deck? Industry projections suggest continued growth and innovation.
The steel composite floor deck market size was valued at US$6.79 billion in 2024 and is expanding at a compound annual growth rate of 10.59 percent from 2025 through 2032. That pace of growth significantly exceeds general construction market expansion, indicating accelerating adoption.
Emerging trends include increasing integration of sustainability metrics into product selection, including embodied carbon calculators for composite deck systems. Hybrid systems combining steel deck with cross-laminated timber, known as CLT, are also under active investigation. These so-called steel-timber composite floors could offer the best of both materials: the strength and spanning capacity of steel combined with the renewable, biogenic carbon storage of timber.
Automation and robotics are also making inroads into steel deck manufacturing and installation. Robotics applied to cold-forming lines produce more consistent profiles with reduced material waste. Could we one day see robotic deck installation crews on steel structure job sites? The technology to automate deck placement and fastening is not far away.
Q: How long does steel floor deck last?
With proper design, galvanization, and concrete coverage, steel floor deck systems have service lives exceeding 50 years. The embedded steel remains protected by both its galvanized coating and the surrounding concrete.
Q: Can steel floor deck be used in residential construction?
Yes, steel floor deck is increasingly common in multi-family residential buildings where speed, acoustic performance, and fire resistance matter. Some systems are specifically optimized for residential applications.
Q: Is steel floor deck safe for fire protection?
Absolutely. Composite systems achieve fire ratings of up to 180 minutes and comply with UL/ULC/cUL standards through concrete coverage of the steel deck.
Q: How does steel floor deck compare to precast concrete?
Research indicates steel frame with composite deck saves 55% construction time versus precast concrete frames and 14% time versus steel frames with precast slabs.
Q: Do I need temporary shoring with steel floor deck?
Not always. Some deep deck profiles are self-spanning over certain distances without intermediate supports, while shallower profiles require propping during concrete curing.
Steel floor deck has transformed how the world builds. From the tallest skyscraper to the newest apartment complex, this unassuming profiled steel sheet works silently beneath millions of feet every day — supporting weight, spanning distances, accelerating schedules, and saving costs.
The technology is not new — the first composite floor deck was developed in the 1960s — but the systems available today bear little resemblance to those early products. Modern steel floor deck incorporates advanced embossing patterns, high-strength steels, integrated acoustic treatments, and service distribution channels. The results are measurable: cost reductions of 20%, schedule compression approaching 50%, and load capacities doubling what non-composite construction achieves.
In a world where building faster, stronger, safer, and more sustainably is demanded from every construction project, steel floor deck delivers on every count. It really is the hidden backbone of modern buildings.
The next time you walk into an office building or ascend an elevator in a new apartment tower, look down at the floor beneath you. Chances are excellent that you are walking on steel floor deck — and you probably never even knew it was there. That is the true beauty of this technology: when it works perfectly, you never notice it at all.
