In modern construction, roofing materials are expected to do much more than simply cover a building. They must withstand harsh weather, resist corrosion, maintain appearance over decades, and reduce long-term maintenance costs. This is where PVDF coated sheet for roofing has become one of the most trusted solutions in global construction markets.
Whether you are a contractor, distributor, or project owner, understanding PVDF coated steel sheet, PVDF coated metal sheet, and PVDF coated aluminum sheet is essential before making a purchasing decision. This guide explains everything from material science to real-world applications—based on industry standards and verified data.
YX 35-280-840 Prepainted Steel Plate
A PVDF coated sheet for roofing refers to a metal sheet (typically steel or aluminum) that is coated with a polyvinylidene fluoride (PVDF) layer—a high-performance fluoropolymer coating.
This coating is applied to substrates such as:
Galvanized steel
Galvalume steel
Aluminum sheets
Other metal alloys
The coating is then cured at high temperatures to form a dense, chemically stable protective film.
A PVDF coated sheet is a metal roofing material protected by a fluorocarbon coating that enhances durability, weather resistance, and color stability.
The superior performance of PVDF coatings comes from their molecular structure.
PVDF is a fluoropolymer resin
It contains strong carbon–fluorine (C–F) bonds
These bonds are among the strongest in organic chemistry
This structure provides:
Exceptional UV resistance
Chemical stability
Long-term durability
According to industry research, PVDF coatings form a highly stable and corrosion-resistant barrier layer, making them ideal for architectural applications exposed to extreme environments.
Depending on the substrate, PVDF coated roofing sheets are divided into three main types:
Made from galvanized or galvalume steel
Strong structural performance
Widely used in industrial buildings
Best for:
Warehouses
Factories
Steel structure buildings
Lightweight and corrosion-resistant
Ideal for coastal and humid environments
Best for:
Coastal buildings
Curtain walls
High-end architecture
Includes steel, aluminum, and alloy sheets
Flexible application across industries
Used in:
Roofing systems
Wall cladding
Decorative panels
PVDF coatings are widely recognized as one of the most weather-resistant coating systems available.
They can withstand:
UV radiation
Acid rain
Salt spray
Industrial pollution
This makes them suitable for extreme climates, including coastal and high-UV regions.
One of the biggest advantages of PVDF coated roofing sheets is their long lifespan.
Typical color retention: 10–20 years
Overall performance life: 20–30 years
Compared with standard coatings (like polyester), PVDF significantly reduces maintenance and repainting costs.
Unlike traditional coatings:
PVDF resists fading, chalking, and cracking
Maintains color consistency over decades
This is especially important for:
Commercial buildings
Brand-sensitive architecture
Public infrastructure
PVDF coated metal sheets provide a barrier against moisture and chemicals, preventing corrosion of the base metal.
This is critical for:
Industrial zones
Coastal regions
Chemical plants
Due to its durability:
Minimal repainting required
Less cleaning needed
Lower lifecycle cost
This makes PVDF roofing a cost-effective long-term investment, even if initial costs are higher.
PVDF coated sheets are widely used in construction due to their performance advantages.
Warehouses
Manufacturing plants
Logistics centers
Shopping malls
Office buildings
Airports
Villas
Modern housing
Designer roofing systems

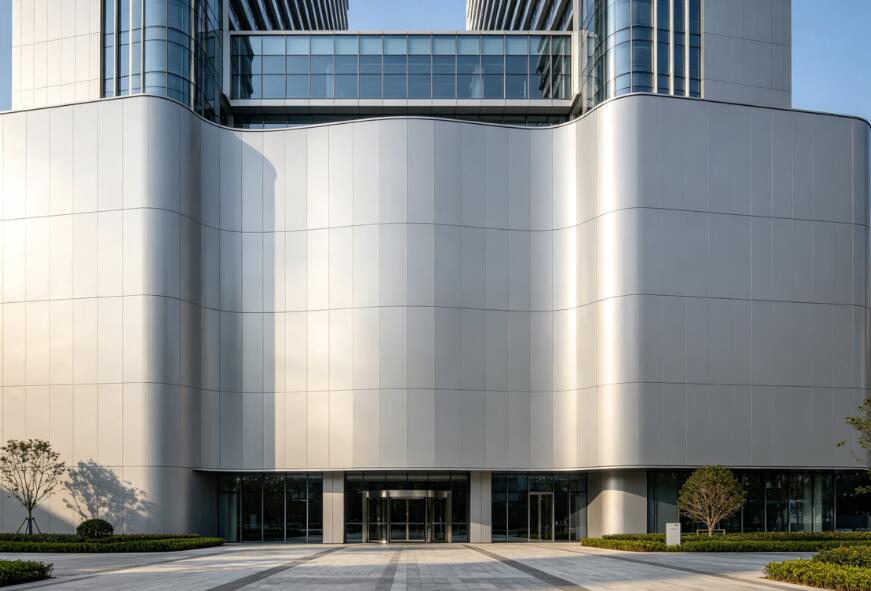

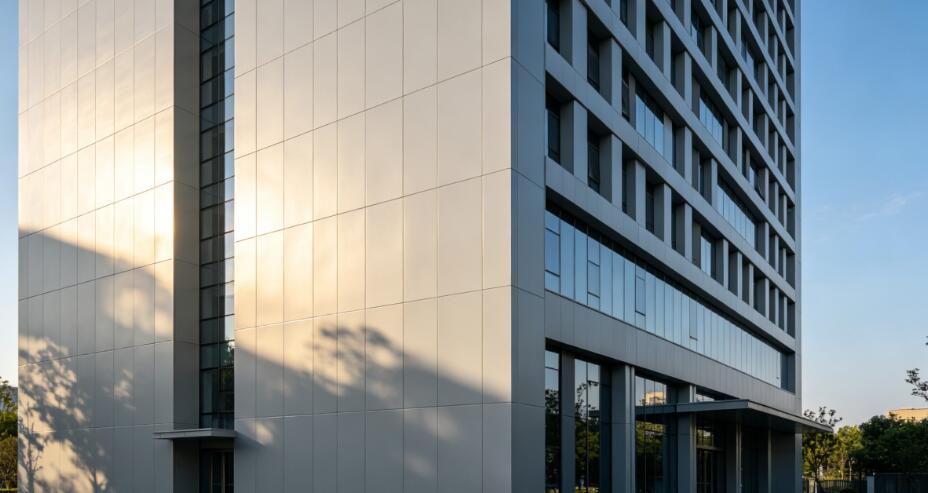

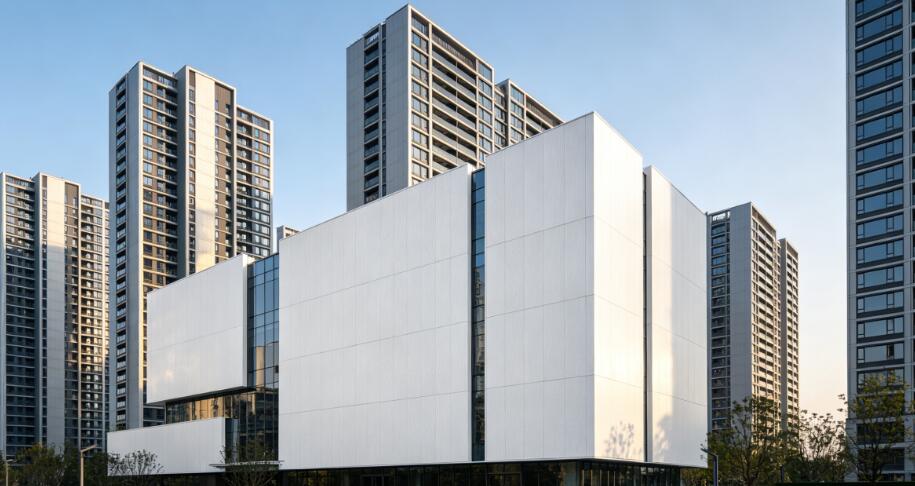

Curtain walls
Cladding panels
Exterior decoration
PVDF coatings are especially preferred for building envelopes, where long-term appearance and durability are critical.
Feature | PVDF Coating | Polyester (PE) Coating |
Lifespan | 20–30 years | 5–10 years |
UV Resistance | Excellent | Moderate |
Color Retention | Very high | Low |
Corrosion Resistance | Excellent | Not good |
Cost | Higher upfront | Lower upfront |
Conclusion:
PVDF is the premium choice for long-term roofing applications.
When selecting a PVDF coated steel sheet or PVDF coated aluminum sheet, buyers should evaluate:
Typically: 25μm (microns) or higher
High-quality coatings contain ≥70% fluoropolymer resin
Common range: 0.3mm – 1.2mm
GI (galvanized steel)
GL (galvalume steel)
Aluminum
Matte
Glossy
Metallic
For beginners, follow this simple decision framework:
Coastal → choose aluminum
Industrial → choose galvanized steel
Long-term project → PVDF is worth it
Short-term → consider PE coating
Look for compliance with:
AAMA 2605 (architectural coating standard)
ISO coating standards
Choosing low PVDF content (<70%)
Ignoring coating thickness
Selecting wrong substrate for environment
Focusing only on price instead of lifecycle cost
The global demand for PVDF coated metal sheets is increasing due to:
Growth in green building projects
Demand for low-maintenance materials
Expansion of industrial construction
PVDF coatings continue to evolve with:
Improved eco-friendly formulations
Better heat-reflective properties
Enhanced durability
A PVDF coated sheet for roofing is more than just a metal panel—it is a high-performance building material engineered for durability, aesthetics, and long-term value.
Whether you choose:
PVDF coated steel sheet for strength
PVDF coated aluminum sheet for corrosion resistance
Or general PVDF coated metal sheet for versatility
You are investing in a roofing solution that can last decades with minimal maintenance.
